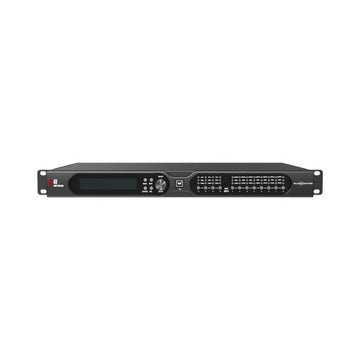

Audiocenter P48

The Audiocenter P48 Professional Audio Processor integrates a variety of DSP functions, including compressors, crossovers, dynamic equalizers, delays, equalizers, input/output FIR filters, phase filters, and mixing matrices. With intuitive PC software, users can easily tune and monitor their audio, ensuring the efficient construction and flexible operation of professional audio amplification systems.

Features

Innovative BrainCore™ technology to improve the audio performance of the system
High-performance AD/DA converter chips
32-bit floating-point digital processor
3-band dynamic EQ (DEQ) on each channel
2000ms Ultra-Long Delay, Precision to 0.01ms
Simplified Installation and Cost Reduction

Features

Ultimate Sound Quality, Superior Performance
Equipped with high-performance AD/DA converter chips, featuring a 24bit 96kHz sampling rate, it accurately captures sound details, providing
pure sound quality and efficient performance to meet professional audio requirements.

High-performance DSP Processing Technology
The 32-bit floating-point digital processor optimizes signal processing, with 3 bands of dynamic equalization (DEQ) on each channel that
automatically adjust the frequency response. The combination of IIR and FIR filters preserves the original characteristics of the audio signal,
generating precise linear phase curves, providing a balanced, natural, and transparent audio experience.

2000ms Ultra-Long Delay, Precision to 0.01ms
The system allows for input and output delays of up to 2000ms, with a precision of 0.01ms. This ensures precise synchronization in any audio
application.

Simplified Installation and Cost Reduction
Transmitting audio signals via the network reduces reliance on traditional audio wiring, simplifying the installation process and reducing
construction costs and complexity.

Specifications

Sampling Rate: 96kHz
AD/DA Converter: 24bit
Audio System Delay: <2.1ms (analogue input – analogue output)
Input (Analogue): 4-channel electronically balanced
Input (AES): 4-channel AES input
Input Interface: 4 x female XLR
Output (Analogue): 8-channel electronically balanced
Output Interface: 8 x Male XLR
DSP (EQ): EQ types: PEQ; high/low shelf; all pass; all pass 2; variQ high/low pass; elliptic high/low pass; high/low pass; band pass; notch
DSP (DEQ): Each input with a 3-band DEQ
DSP (Delay): Input delay: each channel 2000ms; Output delay: each channel 20000ms
DSP (FIR): Input FIR: each channel 512Taps (@48kHz): Output FIR: each channel 512Taps (@48kHz)
DSP (Crossover): Butterworth; Linkwitz-Riley; Bessel: 6dB /oct to 48dB / oct
DSP (Limiter): Compressor + limiter
Input Impedance: ≥10kΩ
Output Impedance: <100Ω
Maximum Input Level: ≥+20dBu
Maximum Output Level: ≥+20dBu
Frequency Response: ±0.3dB, 20Hz-20kHz
S/N Ratio: ≥113dB @1kHz, A weighted
THD+N: ≤0.002% @1kHz, 0dBu, A weighted
Crosstalk: ≥105dB @1kHz
Connection Type: USB / RS232 / TCP / IP
AC Power Operating Range: 100-240V / (±10%, 50-60Hz)
Power Consumption: <20W
Rack Space: 1U
Dimensions (W x H x D): 483 x 44 x 265mm
