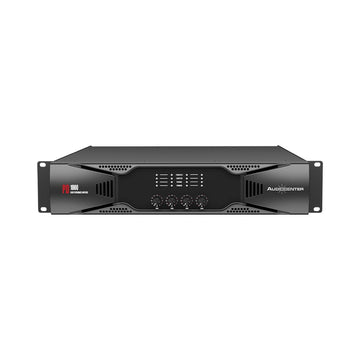

Audiocenter PD1000 Professional Four-channel Power Amplifier

Overview
PD1000 is a professional four-channel power amplifier with high technology, premium sound performance and comprehensive protection system. It is a truly high-quality professional power amplifier.

PD1000 suitable for professional entertainers with limited budgets but demanding the best performance. It is widely used in bars, nightclubs, multi function halls, museums, religious places, speeches, weddings and other fixed installation and mobile performance venues.

Specifications
Output Power(1kHz, THD+N =1%)

4x 1000W @8 stereo

4x 1500W @4 stereo

4x 1000W @2 stereo

2x 3000W @8 bridge

2x 2000W @4 bridge

Protection

DC protection/Short circuit protection/ Smart overheat management/Overheat protection/Output overload protection / Soft startup protection/Limiter protection

Working mode

Stereo/Parallel/Bridge

Crossover(High Pass/Low Pass)

120Hz,-3dB

Input Connectors

Male XLR & Female XLR

Output Connectors

Speakon 4Pin

Input Impedance

20k (Balanced), 10k (Unbalanced)

Maximum input voltage

20dBu

Sensitivity

0.775V / 36dB / 32dB

Frequency Response(1W 8 stereo)

20Hz-20kHz( 1dB)

Crosstalk (1kHz, Rated power 8 A weighted)

60dB

S/N Ratio(Rated power 8 , A weighted)

100dB

Damping Factor (1kHz & 8 )

400

Intermodulation Distortion(60Hz:7kHz=4:1,half power)

0.1%

THD+N (1kHz,8 half power A weighted)

0.05%

Output Circuitry

Class H

Power Supply

100-130V~/220-240V~( 10%,50/60Hz)

Power Consumption(1/8 output power)

1680W

Rack Space

2U

Cooling

Back to front venting, mandatory cooling

What's in the box
1 x Audiocenter PD1000 Professional Four-channel Power Amplifier
1 x Power Cable
