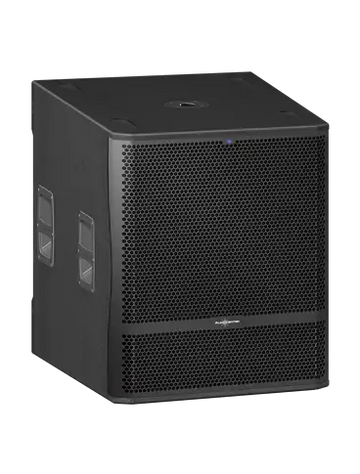

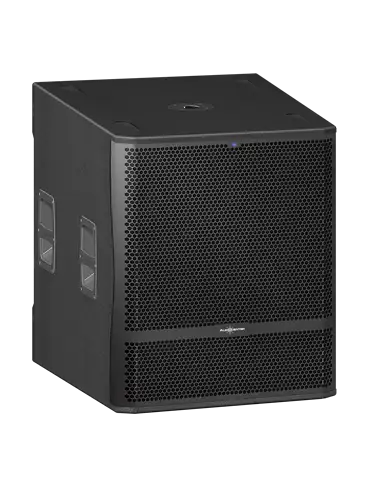

Secondhand Audiocenter EA5118
Active DSP-controlled Compact Subwoofer
From R 1,062.50 per month
-
4× fortnightly payments of R3,187.50 with
-
12× monthly payments of R1,062.50 with
Delivery: Fast Shipping – Door to Door Standard Delivery
Collection: Free In Store Collection
Product ID: 15294435328166
Secondhand Audiocenter EA5118
3 low-pass filters (80Hz, 100Hz, 120Hz) in EA5118 are available to choose according to different venues and music styles. There is also phase switch. All connectors and function buttons are on the back panel.
EA5118 subwoofer is with 1-way XLR for input and output. Signals can be sent to different speakers for sound distribution.
|
Type |
Active DSP-controlled Compact Subwoofer |
|
Frequency Response (-6dB anechoic chamber) |
35Hz-150Hz |
|
Maximum Calculated SPL/1M |
137dB |
|
LF Driver |
Customized AUDIOCENTER ferrite driver, 4” voice coil |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power(Peak) |
2000W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-6KHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Cooling System |
Cooling with fans, air convection |
|
DSP |
|
|
Processor |
96KHz signal sampling frequency, 24bit precision |
|
Presets |
80Hz,100Hz, 120Hz |
|
Crossover |
Controlled by DSP |
|
Output / Input |
|
|
Signal Input |
1×NEUTRIK® female XLR |
|
Signal Output |
1×NEUTRIK® male XLR |
|
Power Input |
3 pin plug |
|
Working Voltage |
100V-130V/60Hz or 220V-240V/50Hz |
|
Cabinet |
|
|
Cabinet Material |
CNC made of excellent wood |
|
Cabinet Color |
Black and white available, can be customized according to the RAL code |
|
Dimension(W×H×D) |
510×625×712mm |
|
Net Weight |
42.5Kg |
