Turbosound TQ15

Turbosound TQ15

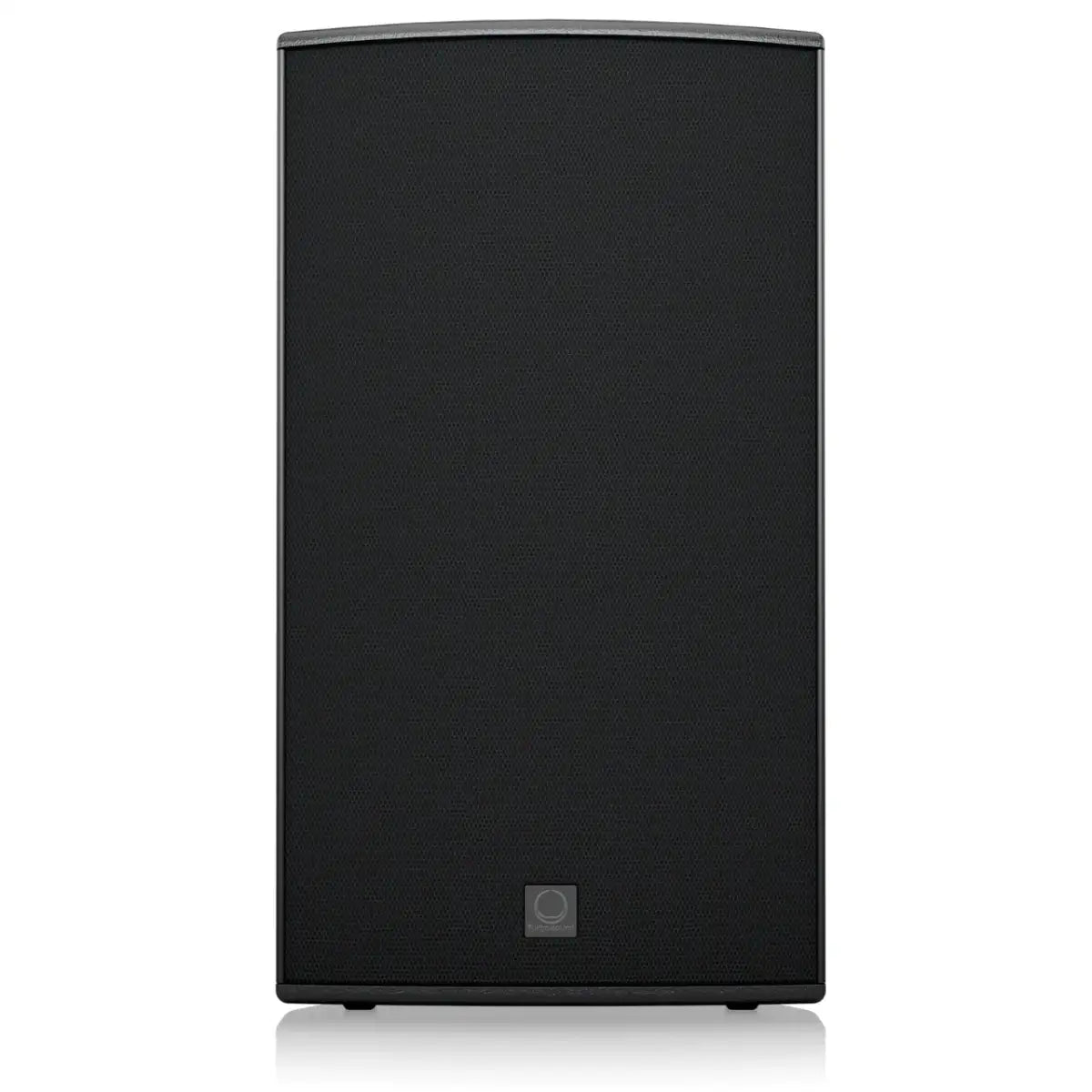

The TQ15 is a processed passive 2,200-watt 15″ loudspeaker system for speech and music reinforcement applications.

This 2-way full range speaker is engineered for use with Lab Gruppen-powered loudspeaker management systems.

It delivers strong performance for FOH, sidefill and delay line loudspeakers in demanding setups.

The enclosure features a 15″ neodymium low-frequency driver with a low mass voice coil for improved transient response.

It also uses a titanium dome 1.4″ neodymium high-frequency compression driver.

The driver is mounted on an 80° horizontal by 30° vertical rotatable exponential horn.

That horn is paired with a dendritic plane wave transformer (DPWT) waveguide.

All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure.

The rear connector plate carries 2 x Neutrik speakON * NL4 connectors for input and link connections.

This neodymium speaker is finished in a highly durable semi-matt black paint.

The cabinet is constructed from 15 mm (5/8″) plywood and includes a powder-coated cloth-wrapped perforated steel mesh grille.

Multiple threaded rigging points allow suspension in any orientation, or mounting where required.

Optional flying yoke, and swivel brackets, are each available separately.

The cabinet also features a dual 35 mm socket for standard pole mounting and an integrated handle for transport.

For buyers researching the Turbosound TQ15 Price or Where to buy the Turbosound TQ15 , this model suits professional audio applications.

Key Features

• 2-way full-range loudspeaker for installations and portable applications
• 550 Watts continuous, 2200 Watts peak power
• Ideal for FOH, side-fill applications
• 15″ neodymium low-frequency transducer with low mass voice coil for improved response
• 1.4” Compression driver with FEA optimized phase plug with titanium diaphragm and surround
• Integral Dendritic Plane Wave Transformer (DPWT) waveguide
• Rotatable Exponential Horn provides 80 H x 30 V dispersion
• 15mm (5/8″) birch plywood enclosure with hard wearing semi matte black paint finish
• Rugged powder-coated perforated steel grille
• Integral dual angle 35mm pole mount
• Internal rigging points for bracket mount suspension
• IP44 dust and water ingress protection
• Neutrik speakON NL4 connectors for reliable long-life operation

Custom-Engineered Drivers, Waveguides and Horns

Turbosound is recognised worldwide for designing iconic loudspeakers and subwoofers.

This turbosound professional loudspeaker uses drivers, waveguides, and horns designed to exact standards.

The refined curved exit dendritic is matched with a new 80° x 30° rotatable horn.

That design supports accurate dispersion through the bandwidth of the high-frequency device.

Integration with Lab Gruppen PLM+ for TQ15

With the complexity of modern-day sound systems, seamless integration with Lab Gruppen PLM+ is essential.

Engineers have prepared presets to help achieve maximum system performance and consistency.

These can be found in the download section.

Future FIR-capable platforms from Lab Gruppen will also be supported.

Acoustic Simulation Tools

EASE GLL files are provided for the EASE Focus 3 Acoustics Simulation Software.

This free download allows accurate calculation of acoustic coverage and suspension pick point selection.

It also helps with tilting and aiming the cabinet at the desired angle.

Architecture & Engineering Specifications

The speaker shall be of the full range, two-way passive type.

It consists of one 15″ (380 mm) LF neodymium driver with 3” voice coil.

It also includes one 1.4″ (34 mm) HF neodymium compression driver with 3” voice coil.

Performance specifications meet or exceed the stated response, dispersion, impedance, power handling, sensitivity, and SPL figures.

This PA Speaker System is suited to professional touring and installation work.

As a High output speaker, Turbosound TQ15  is built for controlled, precise coverage.

General Specifications

• Frequency response (-3dB)*: 52 Hz – 20 kHz
• Frequency response (-10dB)*: 39 Hz – 20 kHz
• Nominal dispersion 80: 80° H x 30° V
• Power handling (IEC): 550 W continuous, 2200 W peak
• Impedance: 8 Ω
• Sensitivity (1 W @ 1 m)2: 99.5 dB
• Maximum SPL3: 139 dB peak
• IP Rating: IP44
