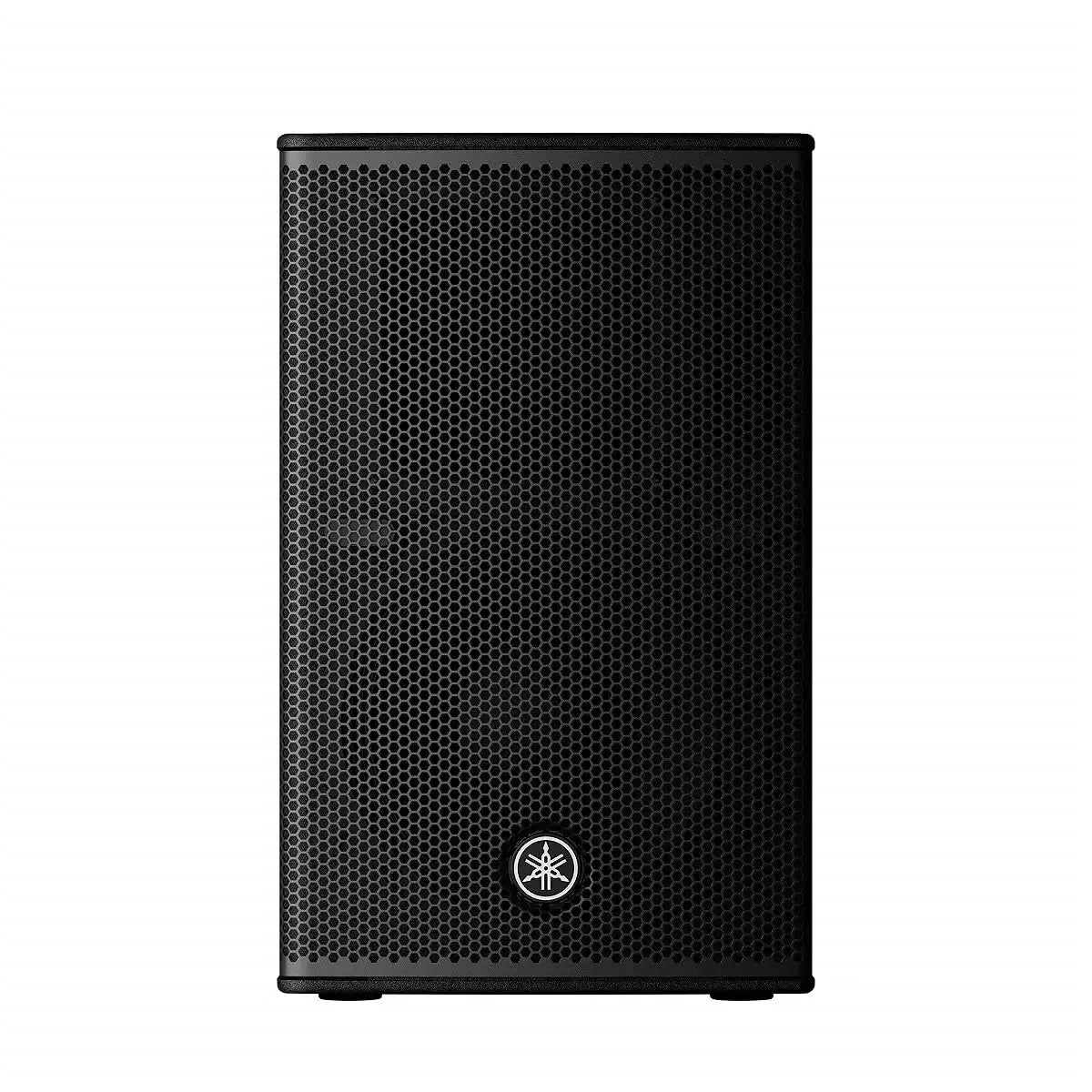

Yamaha DHR10

Yamaha DHR10

The DHR10 is a 2-way bi-amp powered loudspeaker for fixed installations and utility use. It pairs a 10-inch woofer with a 1.4-inch HF driver.

With a 700W amplifier module, high-performance DSP, and high-grade plywood construction, this Yamaha 10 inch powered speaker delivers clear sound and lasting durability.

• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
• Compact appearance thanks to a 10-inch LF driver that provides excellent low frequency response
• Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
• Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
• A pole socket for use on a stand
• Rigging points for use with eye bolts
• Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Performance. Optimized.

The DHR Series is built for users who want professional quality, accuracy, and reliable performance. Tough polyurea-coated plywood adds durability.

The range covers different applications. The DHR10 suits fixed installation and utility use. The 12” model is voiced for floor monitoring.

Cabinet designs optimized for DHR10 use

The lineup is tailored to specific environments. This Yamaha compact PA speaker includes a rotatable HF horn for flexible placement.

The optional UB-DXRDHR10 U-bracket supports horizontal or vertical use. That helps the DHR10 adapt to a wide range of spaces.

The high power output woofer delivers defined bass with low distortion. The 1.4” compression driver handles accurate mids and highs.

Ultra-Precise DSP Processing for High-Definition Sound

FIR-X tuning™ uses linear phase FIR filters in the crossover network. It optimizes frequency and phase response at the same time.

It also adjusts time alignment between the HF and LF transducers. The result is smoother response, better clarity, and improved imaging.

Intelligent Dynamic Control for Consistent Clarity at Any Output Level

D-CONTOUR is an intelligent multi-band compressor. It helps the DHR10 maintain clarity and musicality across different output levels.

FOH/MAIN mode boosts low-frequency response. MONITOR mode is tuned for monitoring with smoother overall balance.

Easy-to-use Onboard 2-Channel Mixer

CH1 accepts XLR and TRS Phone for Mic or Line signals. CH2 accepts XLR, TRS Phone, or RCA pin inputs.

The onboard mixer lets you choose CH1+2 MIX or CH1 THRU. That adds practical flexibility for real-world setups.

For shoppers comparing Yamaha DHR10 Price or wondering Where to buy the Yamaha DHR10, the DHR10 offers a compact and installation-ready option.

Specifications
