Allen & Heath QU-5D

Allen & Heath QU-5D

Connect. Control. Create.

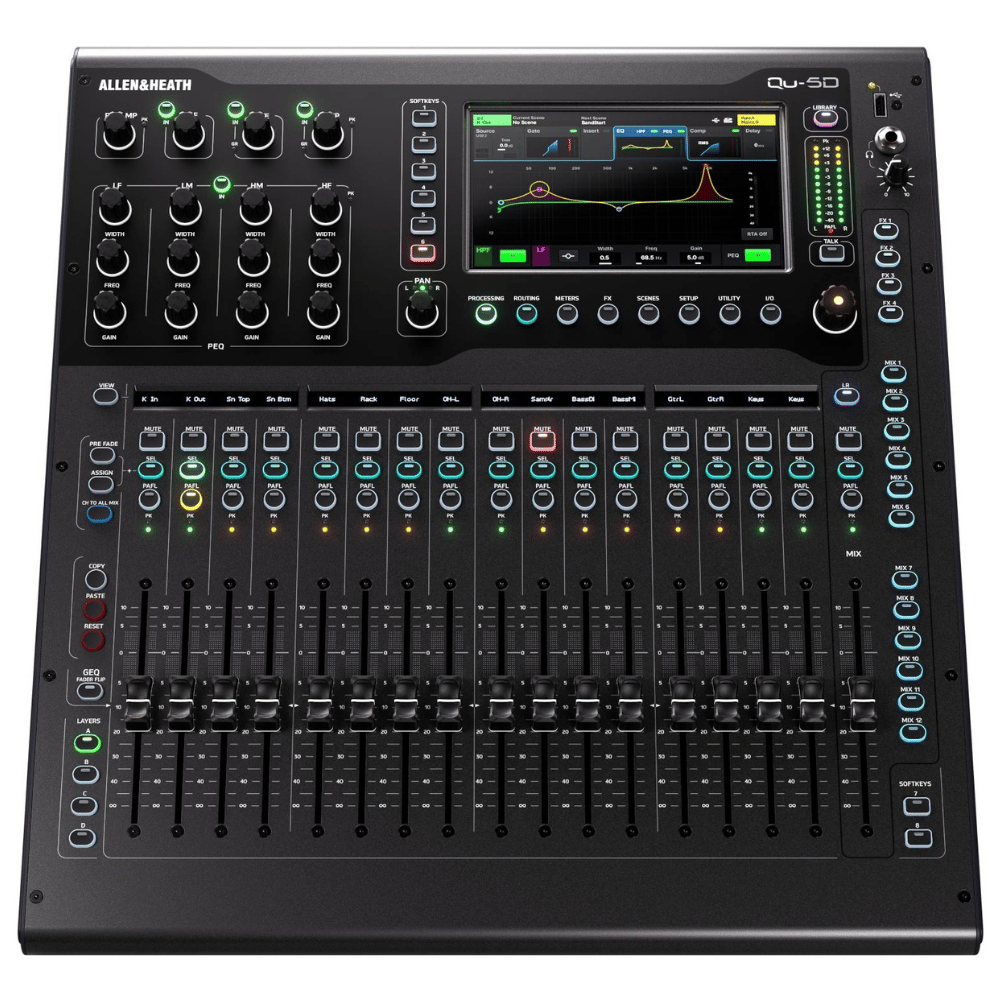

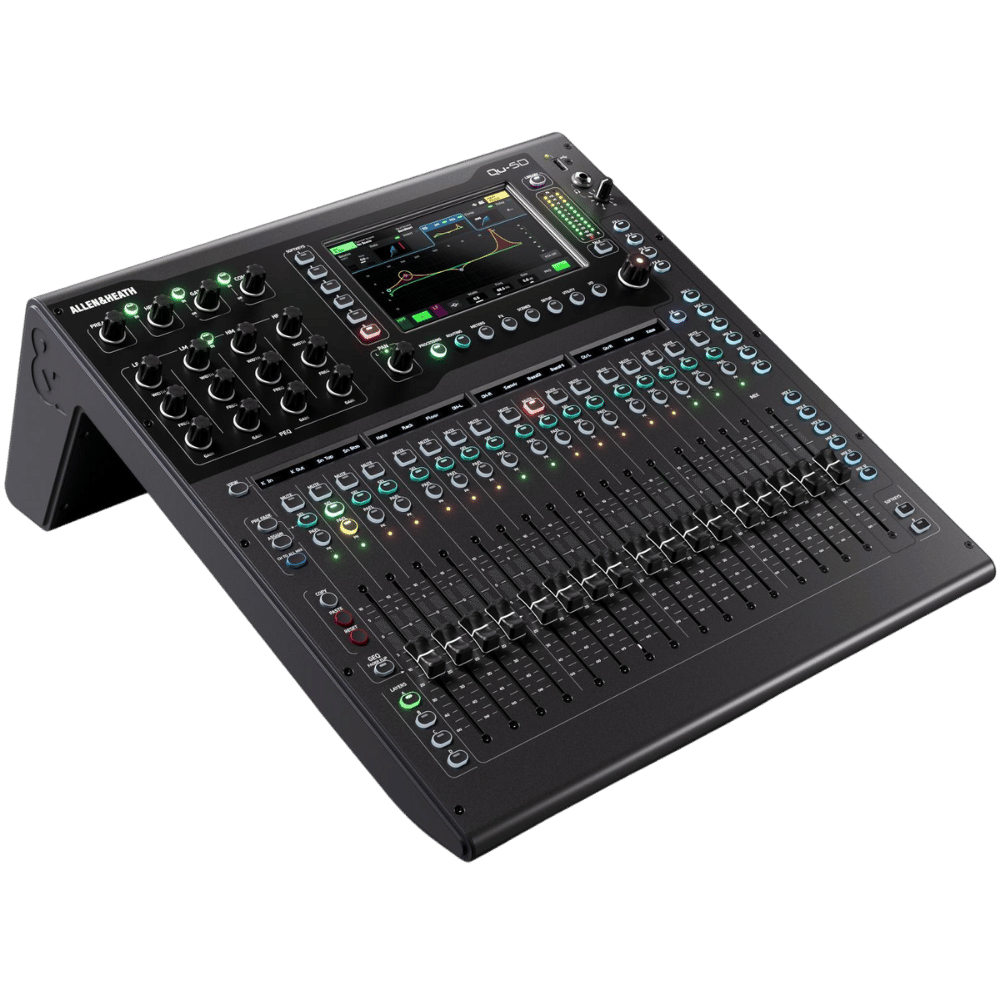

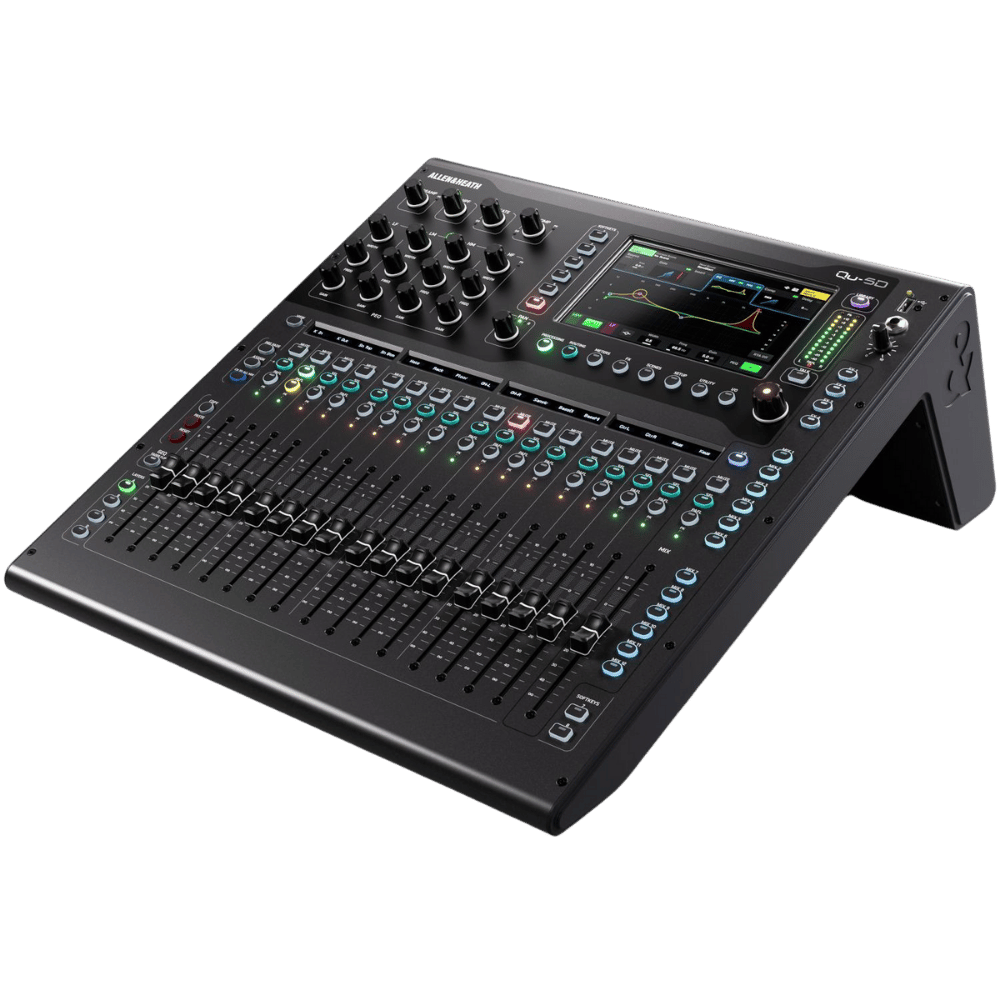

The Allen & Heath Qu-5D is a compact yet powerful 38-in/24-out digital mixer designed for professional live sound, studio and broadcast applications. It combines the trusted Qu series form factor with next-generation technology, including a built-in Dante interface for seamless audio-over-IP integration.

XCVI 96kHz Core Processing
Powered by Allen & Heath’s advanced XCVI FPGA engine, the Qu-5D delivers ultra-low latency (<0.7ms), high-resolution 96kHz audio, and variable bit-depth up to 96-bit. This ensures pristine sound quality and responsive performance across all channels.

Integrated Dante Networking
The Qu-5D includes a 16×16 Dante interface (48/96kHz) with a dedicated locking EtherCon port, enabling easy integration into Dante-enabled systems for flexible digital audio routing in live, install, or broadcast environments.

DEEP Processing
Each input and output channel features DEEP processing, including high-pass filters, gates, compressors, parametric EQs, and delay. These tools are embedded directly into the mixer’s architecture, eliminating the need for external plugins or outboard gear.

Touchscreen & Motorised Faders
A 7-inch capacitive touchscreen and 17 motorised 100mm faders provide intuitive, hands-on control. Four fully customizable layers and eight assignable SoftKeys allow users to tailor the workflow to their specific needs.

Flexible Recording & Playback
The Qu-5D supports 32×32 USB-C multitrack recording, 32-channel SD card recording, and stereo USB-A playback. Whether you're capturing a live performance or tracking in the studio, the Qu-5D offers versatile and reliable recording options.

Everything I/O & SLink Connectivity
With its SLink port, the Qu-5D connects to Allen & Heath’s Everything I/O ecosystem, allowing for scalable I/O expansion and integration with other A&H digital consoles. It supports up to 128×128 channels of 96kHz audio patching.

Enhanced User Interface
The redesigned interface features vivid channel strip displays, chromatic meters, and a fast, responsive touchscreen. It maintains the Qu series’ “walk-up-and-mix” simplicity while offering deeper customization and control.

Main Features:

• Next-gen, 38-in/24-out, 96kHz digital mixer blending the Qu-32's svelte form factor with advanced XCVI processing
• 6 Multi-FX engines, each with dedicated returns, lend a studio-quality sheen to your mixes
• Versatile Everything I/O connectivity ensures maximum flexibility and expandability
• Vibrant 7-in. capacitive touchscreen offers easy access to channel strips, FX, and more
• Vivid channel strip displays, 4 user-definable layers, and 8 programmable SoftKeys put intuitive control at your fingertips
• 36 mix inputs, including 32 mono channels — linkable for stereo operation — and 2 dedicated stereo channels
• 16 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth
• 17 smooth 100mm motorized faders and a thoughtfully designed interface provide intuitive hands-on control
• USB-C audio interface and SD card slot provide you with up to 32 channels of recording and playback
• 16-in/16-out Dante interface gives you seamless integration into AoIP networks
• Fully rackmountable and built to handle the demands of modern live sound production

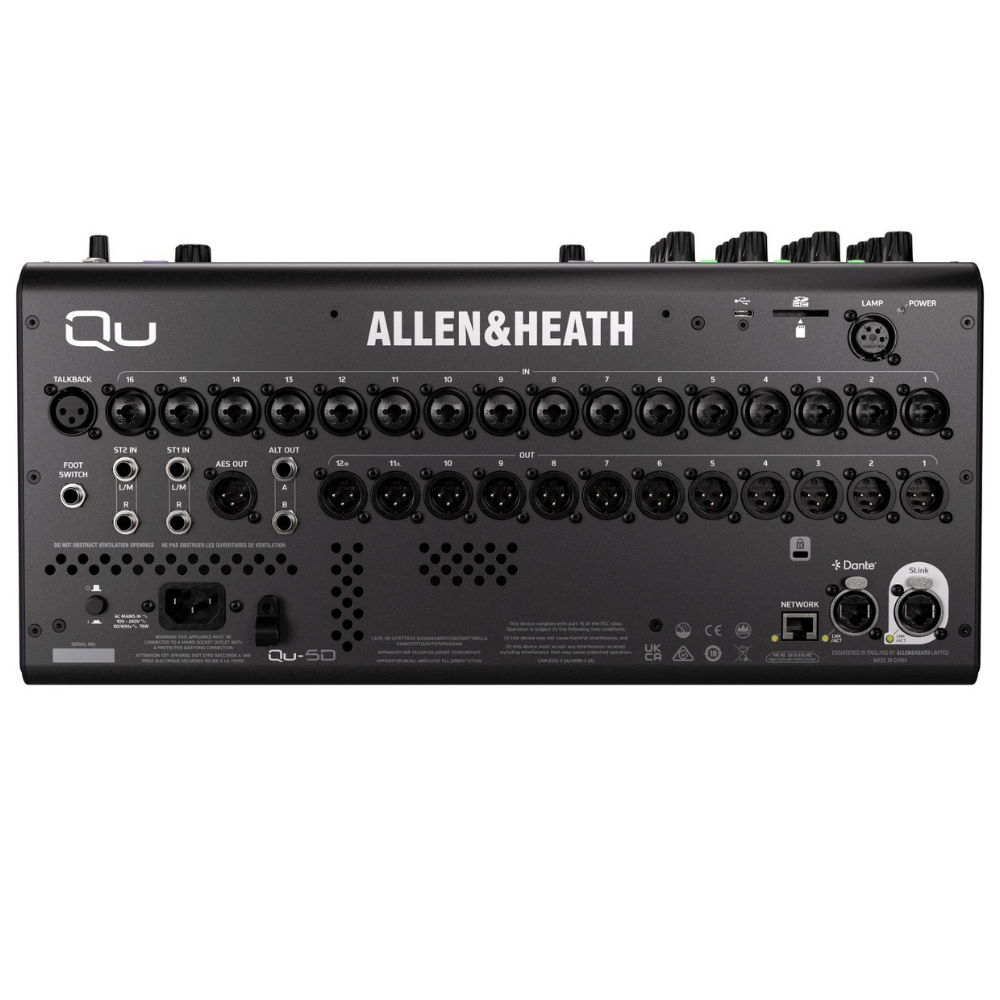

Tech Specs:

• Type: Digital Mixer
• Channels: 38
• Inputs - Mic Preamps: 16 x XLR (mic/line)
• Phantom Power: 16 Channels
• Inputs - Other: 4 x 1/4" (2 Stereo In)
• Outputs - Main: 2 x XLR (left, right)
• Outputs - Direct: 10 x XLR
• Outputs - Other: 2 x 1/4" (alt)
• Outputs - Digital: 1 x XLR (AES/EBU)
• Talkback: 1 x XLR
• Data I/O: 1 x EtherCon (SLink), 1 x EtherCon (Dante), 1 x RJ45
• Headphones: 1 x 1/4"
• USB: 1 x USB-A, 1 x USB-C
• Computer Connectivity: USB-C (32x32)
• Remote: 1 x Footswitch
• Faders: 17 x 100m Motorised Faders
• A/D Resolution: 96kHz
• EQ Bands: 4-band parametric
• Features: 96kHz FPGA Core
• Screen: 7" Capacitive Touchscreen
• Storage: SD card slot
• Software: Remote control via free apps - Windows/MacOS/iOS/Android
• Rackmountable: Yes (kit sold separately)
• Power Source: IEC Main Connection with Worldwide PSU
• Dimensions (WxDxH): 440 x 476 x 213 mm
• Weight: 10 Kg
