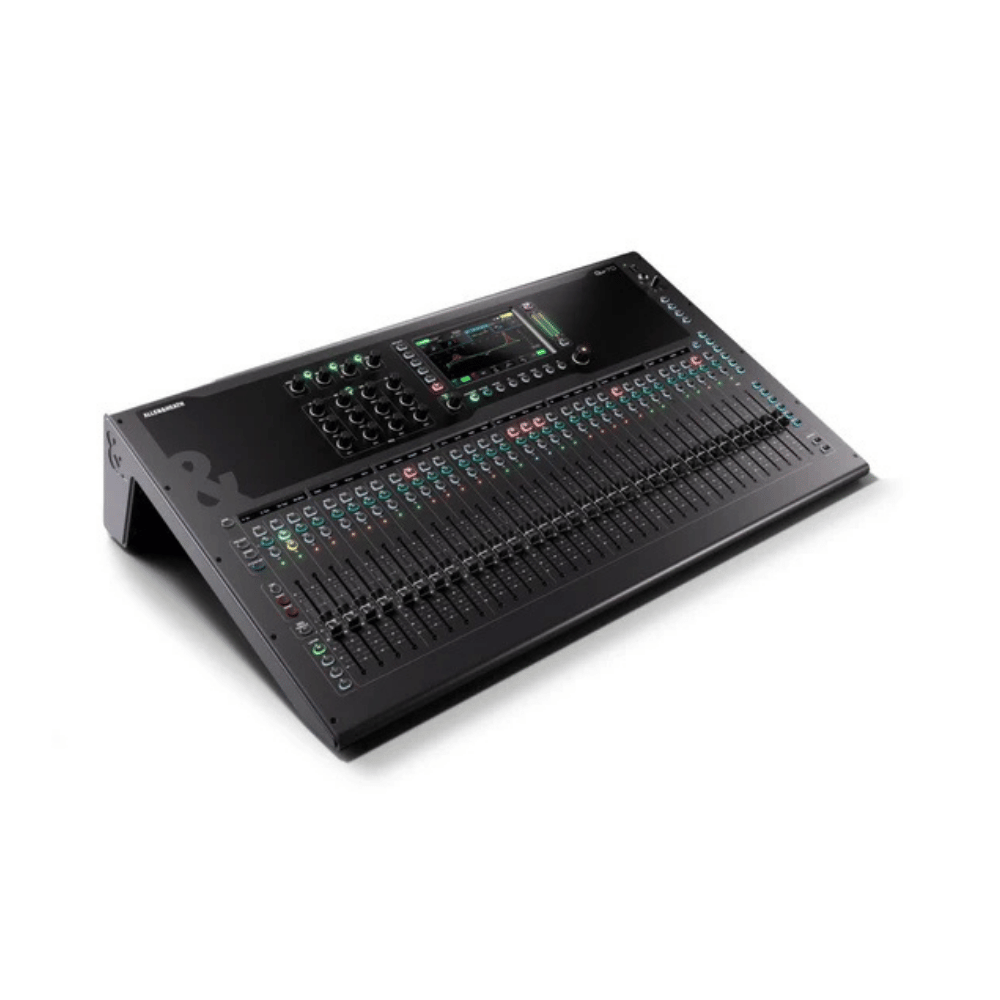

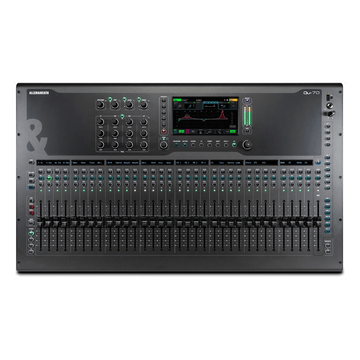

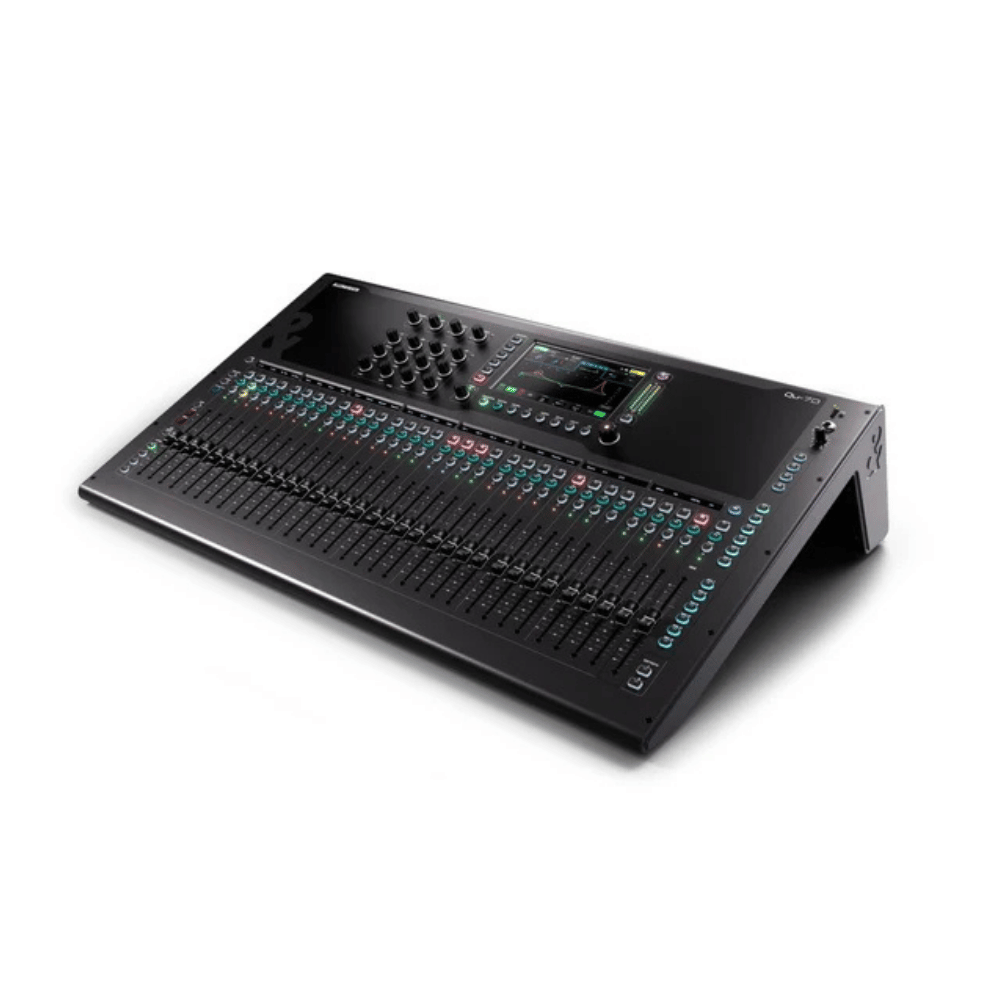

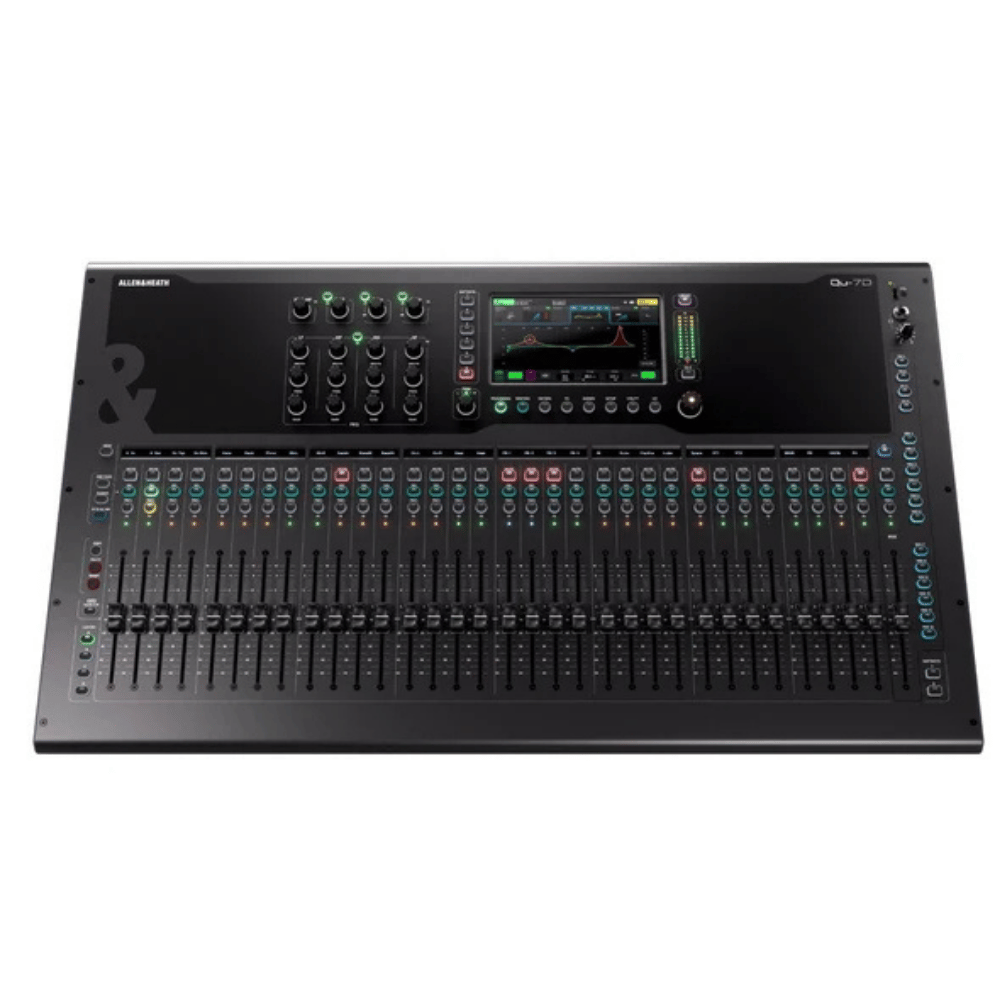

Allen & Heath: Qu-7D

Networked Power. Precision Mixing.

The Allen & Heath Qu-7D is a premium 38-in/24-out digital mixer that elevates the trusted Qu series with cutting-edge performance and built-in Dante networking. Engineered for high-demand live sound, studio, and broadcast applications, the Qu-7D delivers crystal-clear 96kHz audio, powerful DEEP processing, and a redesigned user interface—all packed into a sleek, tour-ready chassis.

96kHz XCVI Core Processing
At the heart of the Qu-7D is Allen & Heath’s powerful XCVI FPGA engine, delivering ultra-low latency, high-resolution 96kHz audio, and DEEP processing on every input and output channel for uncompromising sound quality.

Integrated Dante Networking
The Qu-7D includes a built-in 16×16 Dante interface (48/96kHz) with a locking EtherCon port, enabling seamless integration into Dante-enabled systems for flexible, scalable digital audio routing.

Expanded I/O
Includes 32 XLR/Jack ‘combi’ mic/line inputs, 2 stereo line inputs, 20 XLR outputs, and AES3 digital output—ideal for complex routing and high-channel-count applications.

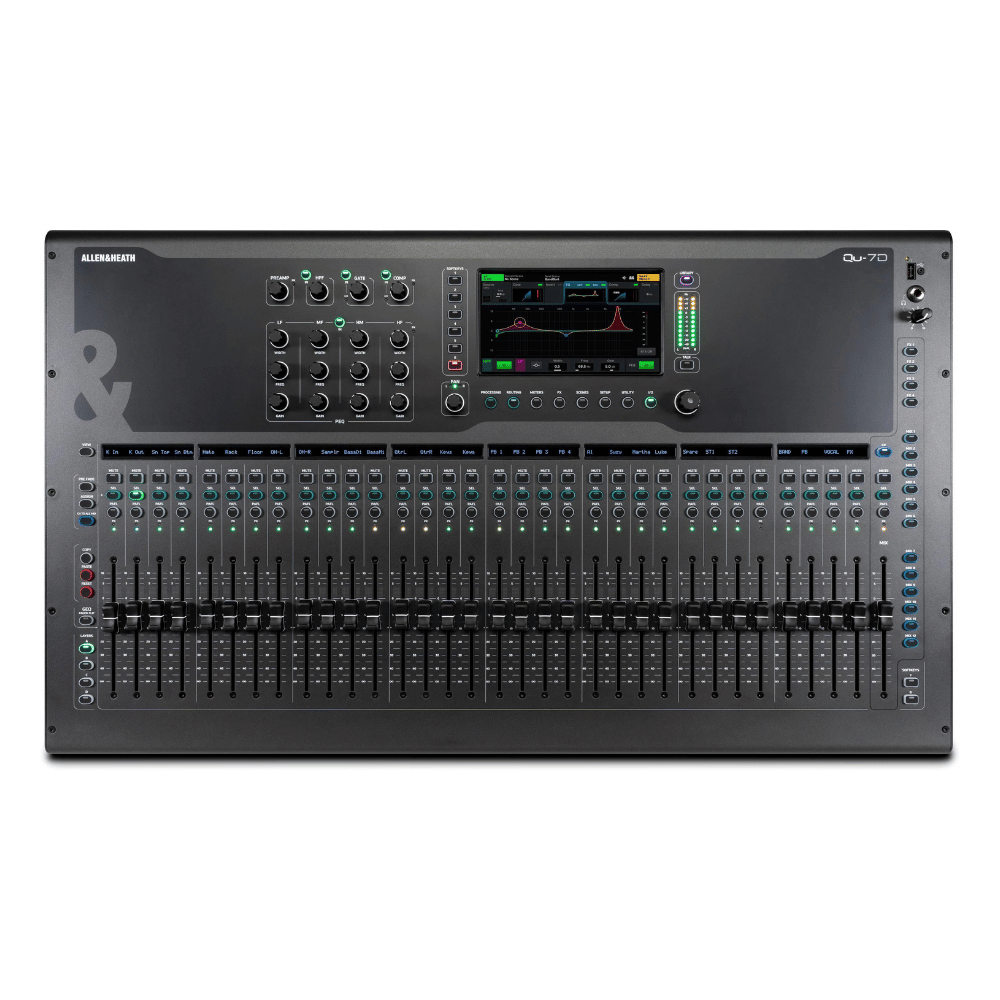

33 Motorised Faders & Enhanced UI
Features 33 smooth 100mm motorised faders and a vibrant 7” capacitive touchscreen. Each channel has a dedicated display with name/type and chromatic metering, plus 4 fully customizable layers and 8 assignable SoftKeys.

Studio-Grade FX & DEEP Processing
Equipped with 6 studio-quality Multi-FX engines, each with dedicated returns, and DEEP processing tools including EQ, compression, gating, and delay—embedded directly into the mixer’s architecture.

Flexible Recording & Playback
Supports 32×32 USB-C multitrack recording, 32-channel SD card capture, and stereo USB-A playback—perfect for live capture, virtual soundchecks, or studio sessions.

Everything I/O & SLink Connectivity
The SLink port allows seamless integration with Allen & Heath’s Everything I/O ecosystem and other A&H consoles, supporting up to 128×128 channels of 96kHz audio for scalable system expansion.

Main Features:

• Next-gen, 38-in/24-out, 96kHz digital mixer blending the Qu-32's svelte form factor with advanced XCVI processing
• 6 Multi-FX engines, each with dedicated returns, lend a studio-quality sheen to your mixes
• Versatile Everything I/O connectivity ensures maximum flexibility and expandability
• 7" capacitive touchscreen offers easy access to channel strips, FX, and more
• Vivid channel strip displays, 4 user-definable layers, and 8 programmable SoftKeys put intuitive control at your fingertips
• 36 mix inputs, including 32 mono channels — linkable for stereo operation — and 2 dedicated stereo channels
• 32 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth
• 33 smooth 100mm motorised faders and a thoughtfully designed interface provide intuitive hands-on control
• USB-C audio interface and SD card slot provide you with up to 32 channels of recording and playback
• 16-in/16-out Dante interface gives you seamless integration into AoIP networks
• Built to handle the demands of modern live sound production

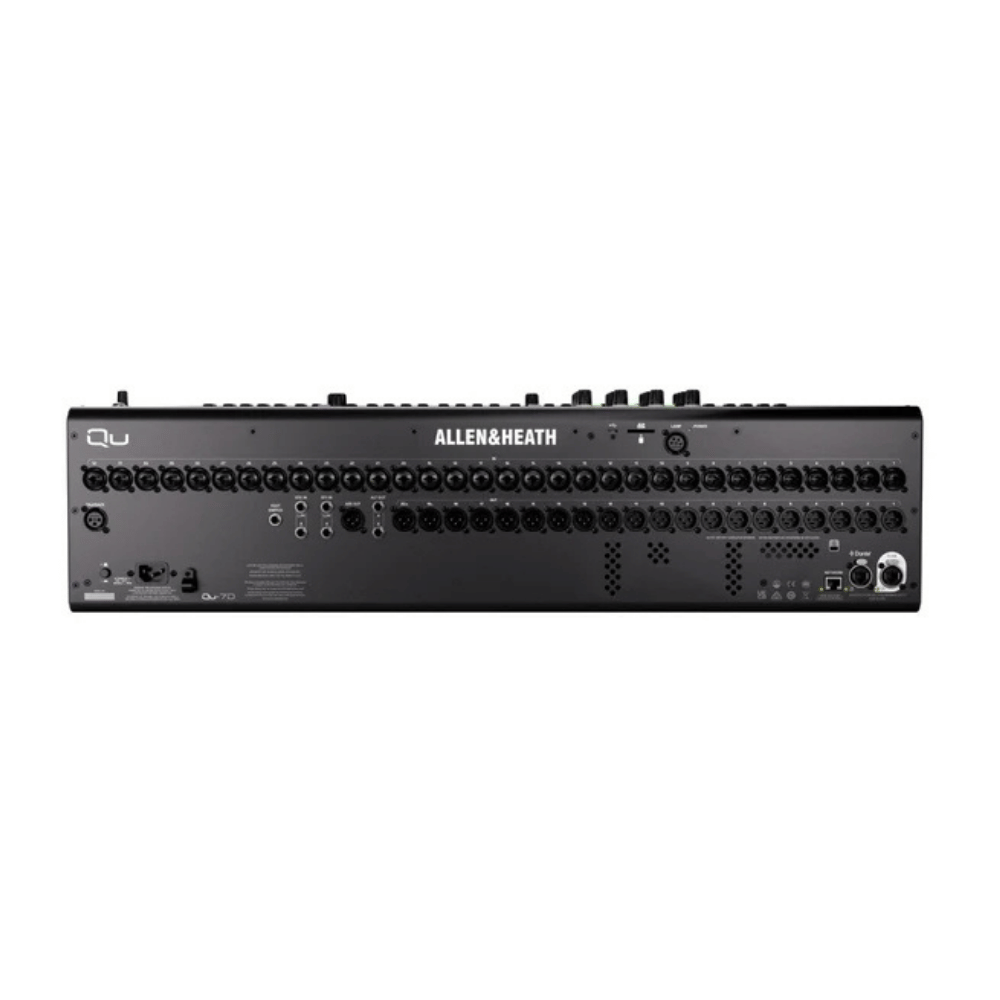

Tech Specs:

• Type: Digital Mixer
• Channels: 38
• Inputs - Mic Preamps: 32 x XLR (mic/line)
• Phantom Power: 32 Channels
• Inputs - Other: 4 x 1/4" (2 Stereo In)
• Outputs - Main: 2 x XLR (left, right)
• Outputs - Direct:18 x XLR
• Outputs - Other: 2 x 1/4" (alt)
• Outputs - Digital: 1 x XLR (AES/EBU)
• Talkback: 1 x XLR
• Data I/O: 1 x EtherCon (SLink), 1 x EtherCon (Dante), 1 x RJ45
• Headphones: 1 x 1/4"
• USB: 1 x USB-A, 1 x USB-C
• Computer Connectivity: USB-C (32x32)
• Remote: 1 x Footswitch
• Faders: 33 x 100m Motorised Faders
• A/D Resolution: 96kHz
• EQ Bands: 4-band parametric
• Features: 96kHz FPGA Core

• Screen: 7" Capacitive Touchscreen
• Storage: SD card slot
• Software: Remote control via free apps - Windows/MacOS/iOS/Android
• Rackmountable: Yes (kit sold separately)
• Power Source: IEC Main Connection with Worldwide PSU
• Dimensions (WxDxH): 800 x 476 x 213 mm
• Weight: 16.7 Kg
