Description

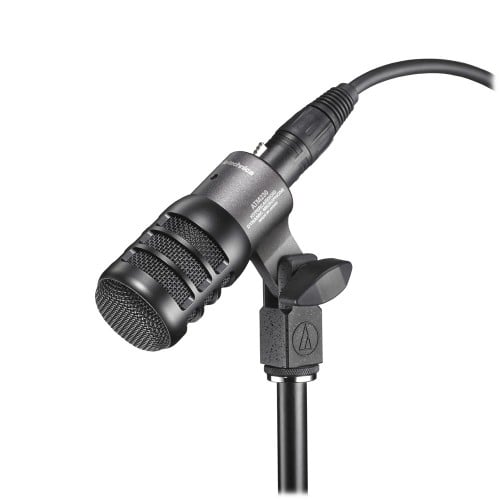

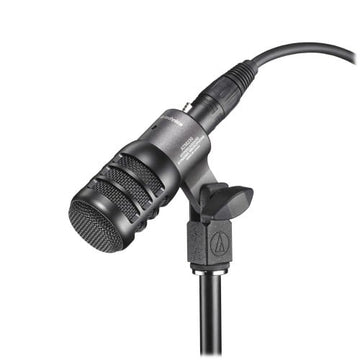

The Audio-Technica ATM230 is a hypercardioid dynamic instrument microphone made for capturing drums and percussion. The mic’s proprietary capsule is designed to excel in high-SPL applications, delivering full, well-rounded audio with accurate low-end reproduction.The hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source. It also sports a low-profile design which allows for a wide variety of placements. The ATM230 is ideally suited for miking toms, snares, and other percussion instruments.
Features
-
Hypercardioid polar pattern greatly improves off-axis rejection
-
Handles very high SPL at close range
-
Big, warm low-frequency response with excellent attack
-
Low-profile design permits versatile placement on drum kit
Specs
|
|
|
|
Polar Pattern |
Hypercardioid |
|
Frequency Response |
30-12,000 Hz |
|
Open Circuit Sensitivity |
–54 dB (1.9 mV) re 1V at 1 Pa |
|
Impedance |
600 Ohms |
|
Weight |
292 g (10.3 oz) |
|
Dimensions |
82.5 mm (3.2″) long, 38.0 mm (1.5″) maximum diameter |
|
Output Connector |
Integral 3-pin XLRM-type |
|
Accessories Included |
AT8665 drum mount for 5/8″-27 threaded adaptor; 5/8″-27 to 3/8″-16 threaded adaptor; soft protective pouch |
