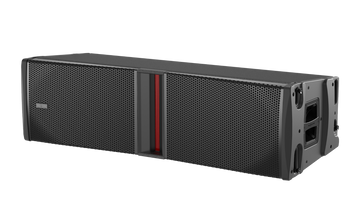

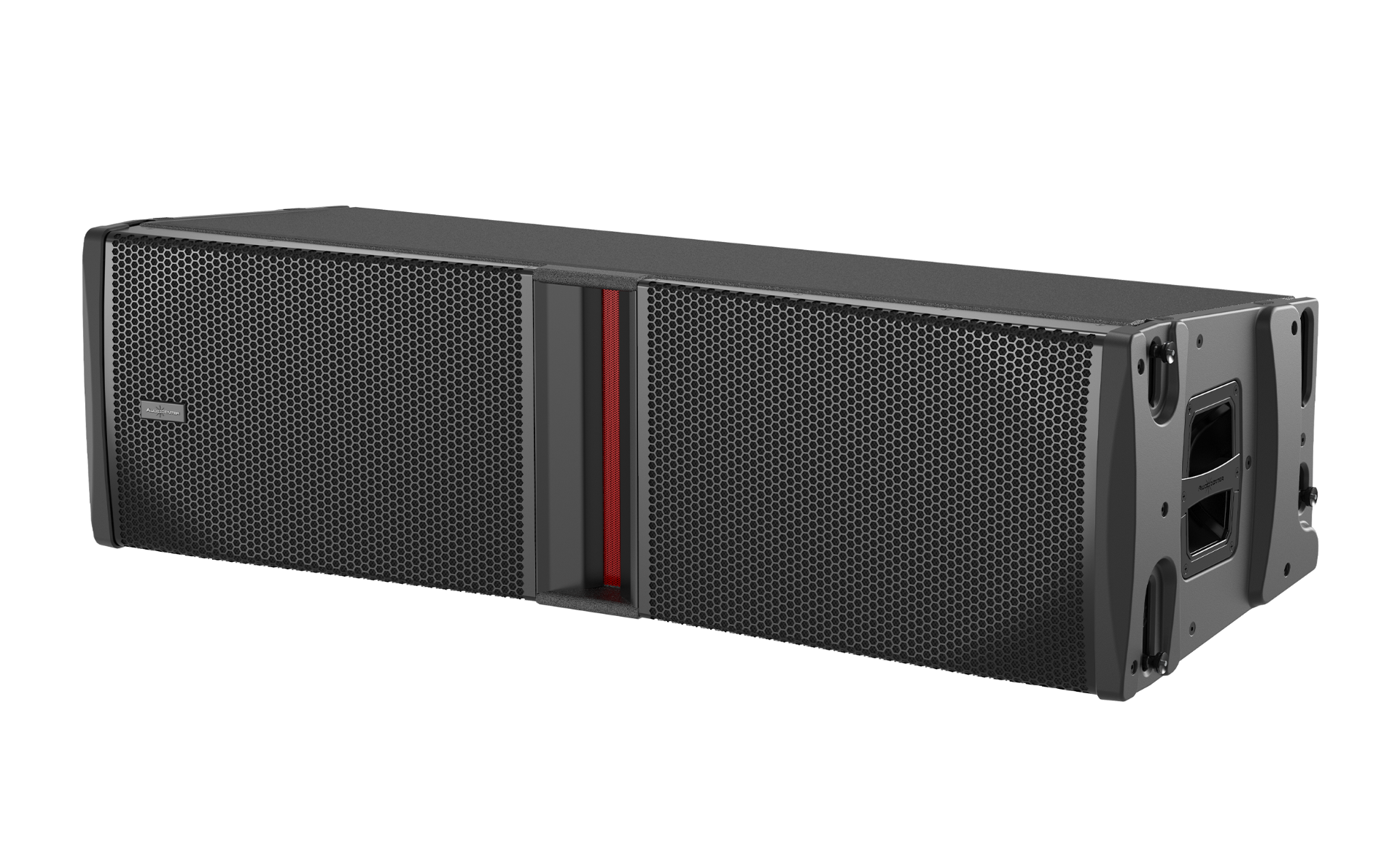

Audiocenter Avanda 212A
Dual 12” three-way active DSP controlled line array loudspeaker
From R 4,622.41 per month
-
4× fortnightly payments of R13,867.25 with
-
12× monthly payments of R4,622.41 with
Delivery: Fast Shipping – Door to Door Standard Delivery
Collection: Free In Store Collection
Product ID: 8534070493350
Audiocenter Avanda 212A
Overview
AVANDA 212A is a dual 12” three-way active DSP controlled line array loudspeaker. Designed for medium to large-scale sound reinforcement applications and mid-to-high-end fixed installations, it provides a high quality and poweful sound, meeting the requirements of any sound reinforcement application, indoors or outdoors.
The AVANDA 212A achieves a narrow vertical coverage in the high frequency range through the innovative ARROWHEAD™ waveguide technology, providing a clearer sound performance.The 90° horn provides a precise horizontal coverage and ensure that the system delivers an even and smooth sound.
CNC machined birch plywood cabinet, coated with polyurea, is waterproof, wear and high temperature resistant.
Key Features
- Perfect integration of Braincore™ technology achieves supreme performance of the speaker system
- ARROWHEAD™ waveguide technology
- 3 presets
- High end DSP, with 96KHz signal sampling frequency, with FIR filter
- Class D amplifier
- Automatically enter sleep mode after 45 minutes without signal input
- Advanced temperature control system
- Customized driver
- Optimized, compact cabinet design
- Durable polyurea coating
- CNC machined birch plywood cabinet, coated with polyurea, is waterproof, wear and high temperature resistant
Specifications
|
Type |
Dual 12” three-way active DSP controlled line array loudspeaker |
|
Frequency Response(-10dB) |
60Hz-20kHz |
|
Horizontal Coverage |
90° |
|
Vertical Coverage |
Splay angle dependent |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
136dB/142dB |
|
HF |
Customized Neodymium driver, 2×3” voice coil,1.4” exit |
|
MF |
Customized 4×6” driver,1.75”voice coil |
|
LF |
Customized 2×12” driver,3.0”voice coil |
|
DSP |
|
|
Processor |
96kHz signal sampling frequency, FIR filtering |
|
Presets |
4 Units,8 Units,12 Units |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power(RMS standards) |
2600W |
|
Peak Power |
5200W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
|
Intermodulation Distortion (20Hz-20kHz, half power) |
＜0.05% |
|
Total Harmonic Distortion (20Hz-20kHz，half power) |
＜0.05% |
|
Cooling System |
Cooling with fans, air convection |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Signal Input Connectors |
Female XLR |
|
Signal Output Connectors |
Male XLR |
|
Power Input Connectors |
Power connector |
|
Power Output Connectors |
Power connector |
|
AC Power Operating Range |
100V-130V~ or 220V-240V~(±10%,50/60Hz) |
|
Power consumption(1/8 output power) |
300W |
|
CABINET |
|
|
Cabinet Material |
Russian birch plywood |
|
Angle Adjustment |
0°, 1°, 2°, 4°, 6°, 8°, 10° |
|
Coating |
Durable Polyurea Coating |
|
Cabinet Color |
Black is the default color. Contact Audiocenter for customization |
|
Grille |
Iron mesh |
|
Handles |
2 side,2 rear |
|
Optional Accessories |
Frame for flying and ground stacking / Flightcase with 100mm wheels / Rain bag / Dolly |
|
Speaker Dimension(W×H×D) |
1220×344×464mm |
|
Carton Dimensions (W×H×D) |
1322×568×443mm |
|
Net Weight |
67.0kg |
|
Shipping Weight |
70.0kg |
|
Technical Support and After-sales Service |
Global application support team，EASE GLL files available |
Drawing
Graphs
Frequency Response Graphs
Normalized Isobar Plot
Internal Structure
