Audix RAD360 *USED*

Please Note: Receiver Only!

Description

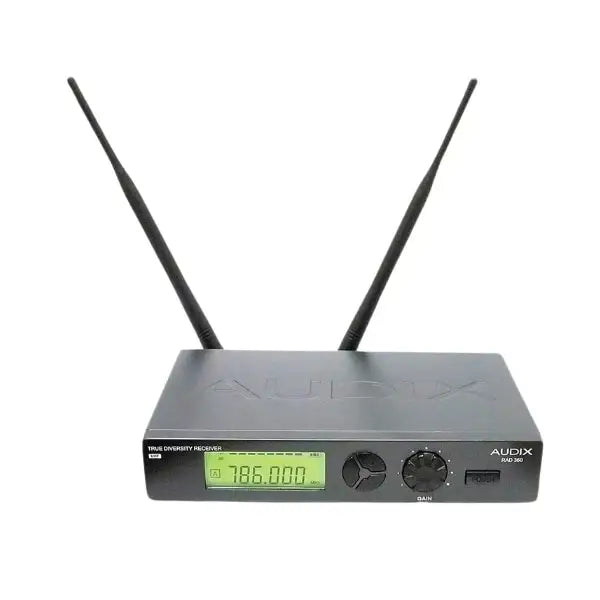

The Audix RAD360 Wireless System is a frequency agile UHF wireless microphone system with 193 selectable frequencies(per system group) and dual tuner, true diversity receivers.  Operating in the UHF band between 614-638 MHz and 638–662 MHz in the USA, the RAD360 is designed for a wide range of professional applications including live performances, fixed installations, corporate meetings and Houses of Worship.

The RAD360 Wireless System features menu driven displays in each component. Both the receiver and the transmitter are synthesizer controlled via Phase Locked Loop (PLL) for stable Radio Frequency (RF) signals.  The handheld transmitters are constructed of durable metal. These units feature the legendary OM series dynamic microphones built with Audix's VLM TM capsule technology.

The handheld transmitters utilize a convenient gain setting control to help prevent overload or distortion. The modular design of the threaded microphone head enables the user to change the transmitter mic capsule from one OM Series model to another in a matter of seconds.

The body pack transmitter, constructed of durable ABS composite, is housed in a protective metal cradle. It may be used with lavaliere, headset and specialty instrument microphones.

The RAD360 Wireless System receiver is rack-mountable for one or two systems into a standard 19” rack with optional rack mount kits. An amplified Antenna Distribution System is also available. This setup allows up to four systems to be run off a single pair of antennae and one DC power supply.  An optional antenna booster, which can be wall or mic stand mounted, assists in strengthening incoming signals, improving signal to noise ratio and increases the RF range.

Applications

- Frequency Agile
- Soft-key Controls
- Menu Driven Displays
- Noise Squelch Circuitry
- Surface Acoustic Wave (S.A.W.) Filters
- Tone Key Squelch
- Tuned Antennas
- Audio Output
- RF Level Meters
- Audio Meters
- Battery Power Indicators
- Set and Lock Function
- Sensitivity Adjustment
- Interchangeable Head Assemblies
- Durable Metal Housings
