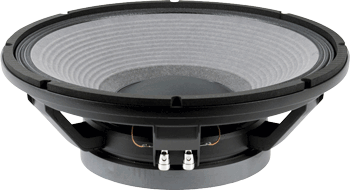

Beyma 15LX60V2 Low Frequency Transducer

Beyma 15LX60V2 Low Frequency Transducer

700W AES, 98dB 2.83V, 4″ VC, 30Hz-1,5KHz, Allu Basket

Regular price R3,795.00
Sale price R3,795.00 Regular price R5,995.00
Unit price
Tax included.

From R 316.25 per month

  • 4× fortnightly payments of  R948.75   with Payflex
  • 12× monthly payments of   R316.25  with Mobicred
Ask a question

Ask a Question

* Required fields

 Size guide Share

Delivery: Fast Shipping – Door to Door Standard Delivery

Collection: Free In Store Collection

Product ID Icon Product ID: 8534132916390

Beyma 15LX60V2 Low Frequency Transducer

Beyma 15LX60V2 Low Frequency Transducer

Regular price R3,795.00
Sale price R3,795.00 Regular price R5,995.00
Unit price
Product description
Reviews
Shipping & Return

High power handling: 700 WAES
● High sensitivity: 98 dB (1W / 1m)
● FEA optimized magnetic circuit
● CONEX spider for higher resistance and consistency

KEY FEATURES

● Weatherproof cone with treatment for both sides of the cone
● 4” DUO double layer in/out voice coil
● Extended controlled displacement: Xmax ± 9 mm
● 47 mm peak-to-peak excursion before damage

Nominal diameter - 380 mm 15 in Rated impedance - 8 Ω Minimum impedance - 7,2 Ω Power capacity 1 - 700 WAES Program power 2 - 1.400 W Sensitivity - 98 dB 1W / 1m @ ZN Frequency range - 30 - 1.500 Hz Recom. enclosure - Vb = 125 l (Bass-reflex design) - Fb = 43 Hz Voice coil diameter - 101,6 mm 4 in Bl factor - 21,1 N/A Moving mass - 0,147 kg Voice coil length - 20 mm Air gap height - 10 mm Xdamage (peak to peak) - 47 mm

Resonant frequency, fs - 42 Hz D.C. Voice coil resistance, Re - 5,1 Ω Mechanical Quality Factor, Qms - 21,2 Electrical Quality Factor, Qes - 0,45 Total Quality Factor, Qts - 0,44 Equivalent Air Volume to Cms, Vas - 105 l Mechanical Compliance, Cms - 92 µm / N Mechanical Resistance, Rms - 1,9 kg / s Efficiency, η0 - 1,67 % Effective Surface Area, Sd - 0,091 m2 Maximum Displacement, Xmax 4 - 8 mm Displacement Volume, Vd - 728 cm3 Voice Coil Inductance, Le @ 1 kHz - 2,1 mH
