CELTO Acoustique 12PF600-8

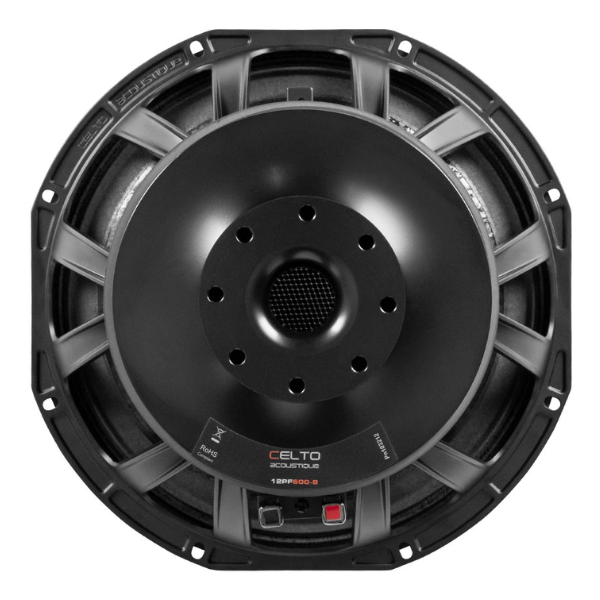

The CELTO 12PF600-8 forms part of the new range of loose mid-bass drivers stocked by Viva Afrika. As usual with CELTO products, there has been absolutely no compromise in design, selection of materials used, manufacturing and quality control. This 12” driver features a beautifully finished powder coated die cast aluminium basket, 240°C PI wire voice coil, premium Canadian pulp paper cone with waterproof coating on both sides, high purity and temperature DMEGC Y30 magnate, and secure square push terminals able to accommodate 5mm diameter connecting wire.

FEATURES

Balanced tonality ideal for 2-way speakers
High efficiency
Water resistant KEVLAR® loaded paper cone
Optimized parameters for compact cabinets

SPECIFICATIONS

Nominal diameter = 320mm (12 inch)
Nominal Impedance = 8Ω
Power handling = 500W RMS (AES Standard)
Sensitivity = 97dB / 1W / 1m
Voice coil diameter = 75mm
Voice coil height Hvc = 24mm
Voice coil air gap Hag = 10mm
Xmax (Hvc-Hag)/2 + Hag/4 = ±9.5mm
Xmech (peak-peak) = 42mm
Voice coil winding = 2 layers IN / OUT
Voice coil material = 240°C Thermal Class CCAW
Voice coil former = T600 fiberglass
Suspension = Triple roll, impregnated fabric
Spider = single, cold formed NOMEX®
Cone = fiber loaded treated paper
Chassis = Die Cast Aluminum
Magnet = Ø180mm Y30 Ferrite

MOUNTING & SHIPPING

Overall diameter = 315mm
Bolt circle diameter = 302mm (8*M5)
Baffle cutout diameter = 282mm
Flange and gasket thickness = 10mm
Overall depth = 143mm
Net weight = 7kg
Shipping weight = 8kg
Shipping box = 340x340x195mm

T&S PARAMETERS

F(s) = 51Hz
Q(ms) = 7.472
V(as) = 66ℓ
M(ms) = 64g
R(ms) = 2.74kg/s
S(d) = 552cm²
V(d) = 0.524ℓ
R(e) = 5.28Ω
Q(es) = 0.452
C(ms) = 0.152mm/N
Q(ts) = 0.424
L(e) 1kHz = 1.08mH
BL = 15.5
n(0) = 1.9%
