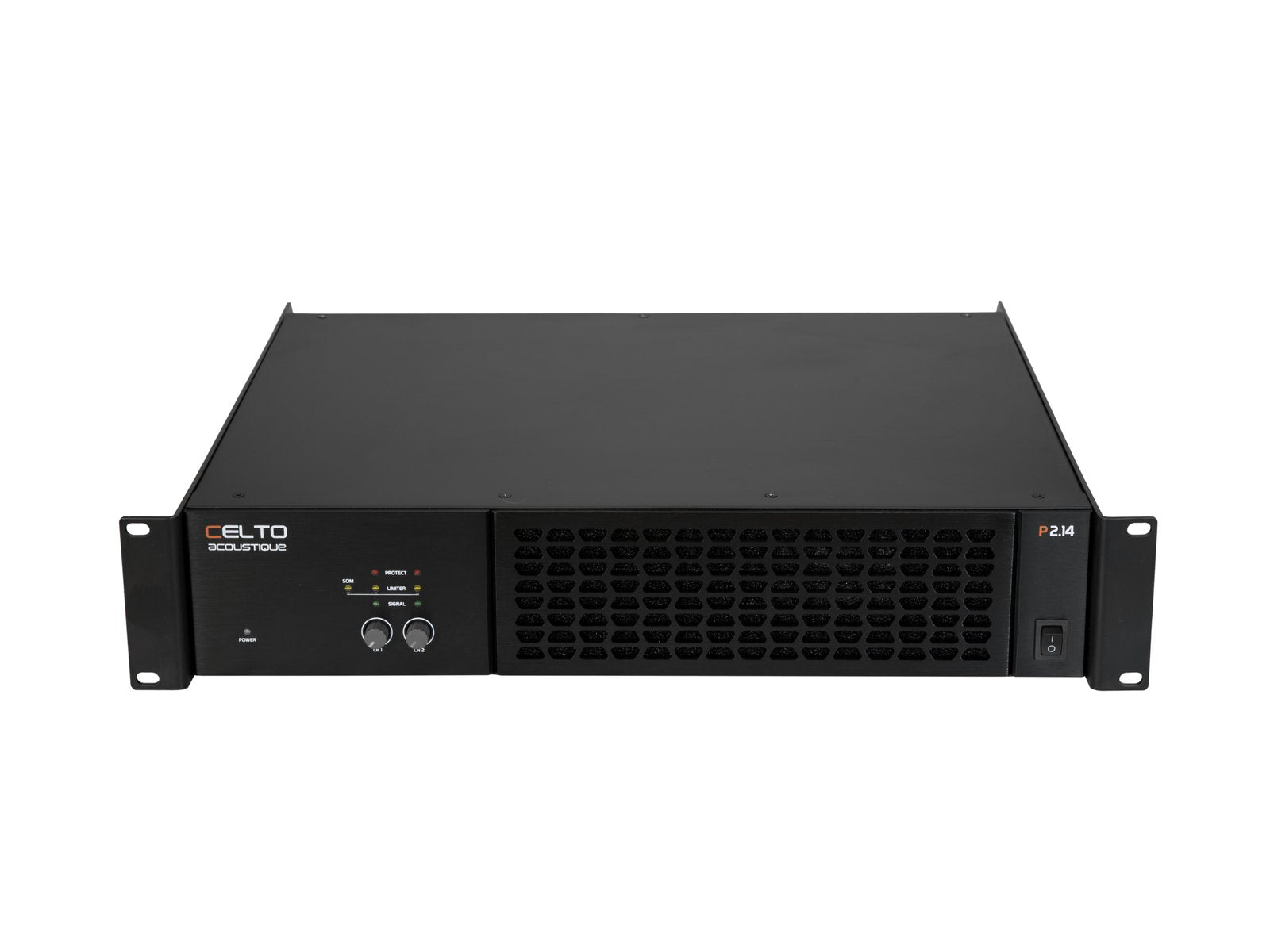

Celto acoustique p2.14 Power Amplifier
Performance Series Amplifiers
TrueSound Class D with High-Speed High-Current MOSFETs
Studio quality preamp with TrueRMS VCA limiters
A-Grade Copper enhanced main toroidal transformer
MCU controlled 3D-Guard SOM [Smart Overheat Management]
SuperCharged 105° C long life capacitors
FEM optimized R:Cool radial heat sinks
Simple layout and assembly for easy servicing
Genuine parts exclusively provided by world class suppliers
Compact and Lightweight 2U low depth format
| Max output Power EIA 1kHz 1% THD (EIA = 33ms ON / 66ms OFF) | 2x 800W 8 ohms | 2x 1400W 4 ohms |
| Overall gain | 35dB (50 times voltage) |
| Sensitivity at 8 ohms | 1.6Vrms (+6.3dBu) |
| Signal to Noise Ratio (A weighted, 0 dB) | 110dB |
| Frequency Response (-1dB) | 10~25000Hz |
| Typical THD (half power, 1kHz, 8 ohms) | <0.05% |
| Typical IMD (1kHz at 4:1, -20dB) | <0.2% |
| Crosstalk (1kHz) | >70dB |
| Slew Rate | >15V/us |
| Input Impedance | 20 kΩ |
| Damping factor (1kHz, 8 ohms) | >800 |
| Protections | Soft-Start, Short-Circuit, Over and Under-Voltage, Over-Current, Over-Load, DC Output, Temperature, SOM (Smart Overhead Management) |
| Operating Voltage | 190~260VAC 50-60Hz |
| Preamp | Proprietary PureSound Circuit for unmatched sound quality (Audiophile capacitors in signal path, High Voltage Opamps, Ultra Low Noise design), Studio grade TrueRMS VCA limiter, Continuous protection, RF protection, Overload protection |
| Power Supply (PSU) | Advanced Linear topology with tracking current, 105C long life SuperCharged Capacitors |
| Output stage | Fully Discrete 4th generation proprietary Class D (93% efficiency at full power), Half bridge design with high-Speed high-Current MOSFETs, 105C Long Life capacitors |
| Cooling | Front to back airflow, Temperature regulated SUNON MagLev fans (50000 Hours, dustproof), FEA optimized Radial heat-sink for maximum heat transfer |
| Rear Panel | 2 NEUTRIK XLR Input with latch, 2 NEUTRIK XLR Link, 2 NEUTRIK Speakon NL4, Stereo / Parallel / Bridge switch, PowerCon 20A (included) |
| Speakon Wiring | SPK1 = 1+1- CH A / 2+2- CH B | SPK2 = 1+1- CH B / 2+2- Not Used |
