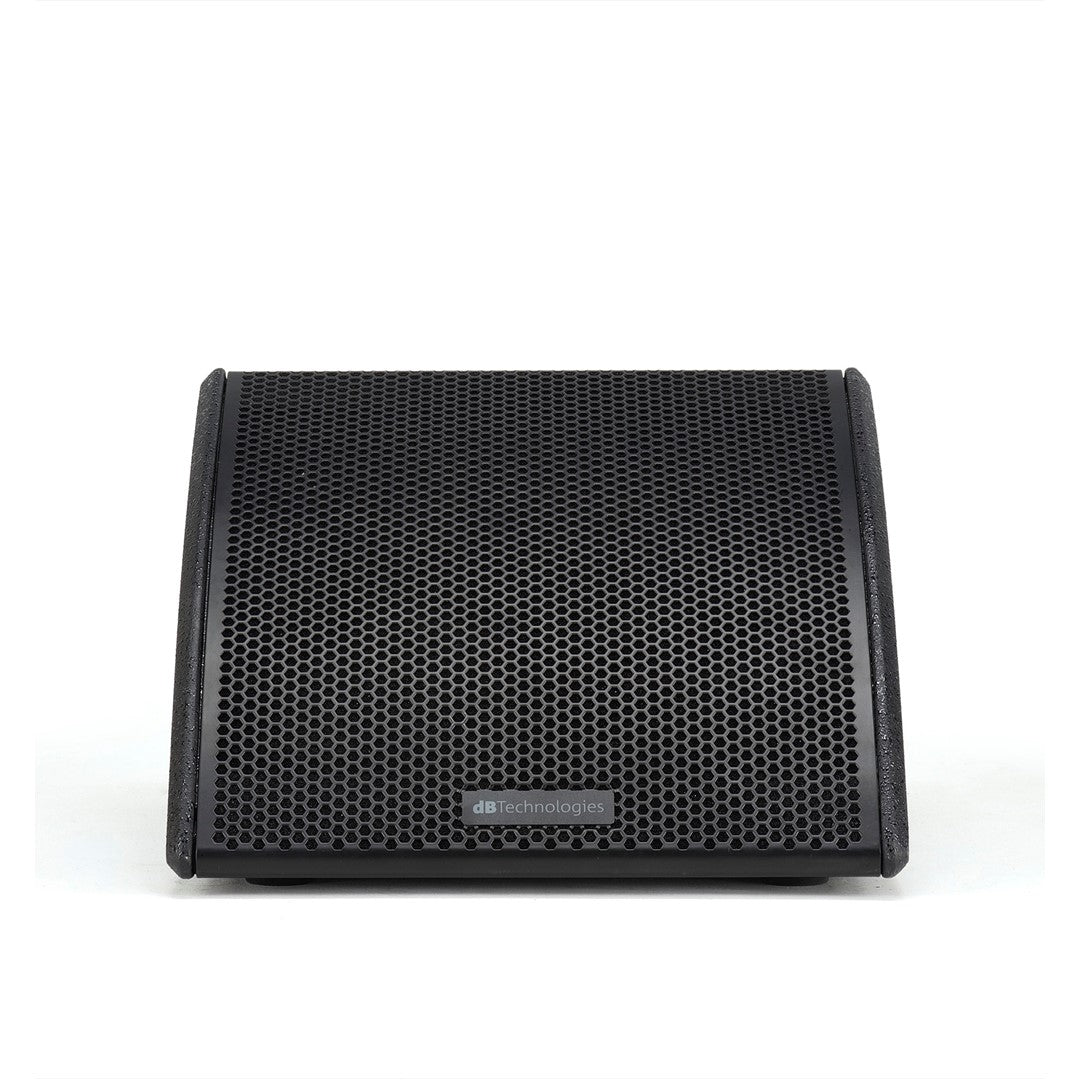

dB Technologies FMX10 10″ Active Stage Monitor

Active 2-Way Stage Monitor: The DB Technologies FMX10 is an active 2-way stage monitor designed for high-performance sound in live settings. It combines advanced technologies with user-friendly features to ensure optimal audio delivery.

Coaxial Configuration: Featuring a coaxial design, the FMX10 enhances sound dispersion. This configuration allows for an even distribution of audio across the stage, ensuring all performers receive clear and consistent sound.

Linear Phase FIR Filters: The FMX10 incorporates linear phase FIR filters in its digital signal processing (DSP). These filters improve the sound quality, providing a natural and intelligible audio experience, even at higher volumes.

Ultra-Precise Directivity: With a unique directivity pattern of 60° horizontal and 90° vertical, the FMX10 ensures precise sound placement. This design allows for focused audio delivery, minimizing sound spill and enhancing clarity.

Rotatable Horn: The FMX10 features a rotatable horn, allowing users to switch between 90°x60° and 60°x90° dispersion patterns. This adaptability ensures the monitor can be configured to suit individual performance needs and stage setups.

Front-Rear Grille Design: The distinctive front-rear grille design of the FMX10 not only enhances its aesthetic appeal but also improves airflow and protects the internal components, ensuring durability and reliability during performances.

Integrated Handle on Bottom Side; For easy transport, the FMX10 includes an integrated handle located on the bottom side. This feature enhances portability, making it convenient for musicians and sound engineers to set up and move the monitor as needed.

Specifications:

• Speaker Type: 2-Way Active Coaxial Stage Monitor
• Acoustical Data:
  • Frequency Response: [-10 dB] 57 Hz – 19 kHz
  • Max SPL: 125 dB
  • HF Driver: 1″ with 1″ voice coil
  • Directivity: 60° (horizontal) x 90° (vertical)
  • Horn: Rotatable
  • LF Driver: 10″ with 2″ voice coil
• Amplifier:
  • Amp Class: Class D
  • Peak Power: 800 W
• Processor:
  • Controller: DSP 28/56 bit
  • AD/DA Converter: 24 bit / 48 kHz
  • System Presets: 8 presets
  • Limiter: Peak, RMS, Thermal
  • Advanced DSP Function: FIR Filters
  • Crossover Frequency: 1800 Hz
  • Slope (LF/HF): 24 dB/oct
• Mechanics:
  • Housing: Plywood
  • Housing Design: Multifunctional
  • Handles: 1 integrated on bottom side
  • Pole Mount: 36 mm
  • Dimensions:
    • Width: 390 mm (15.35 in)
    • Height: 268 mm (10.55 in)
    • Depth: 411 mm (16.18 in)
  • Weight: 11.3 kg (24.9 lbs)
