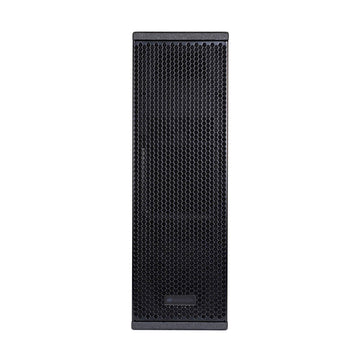

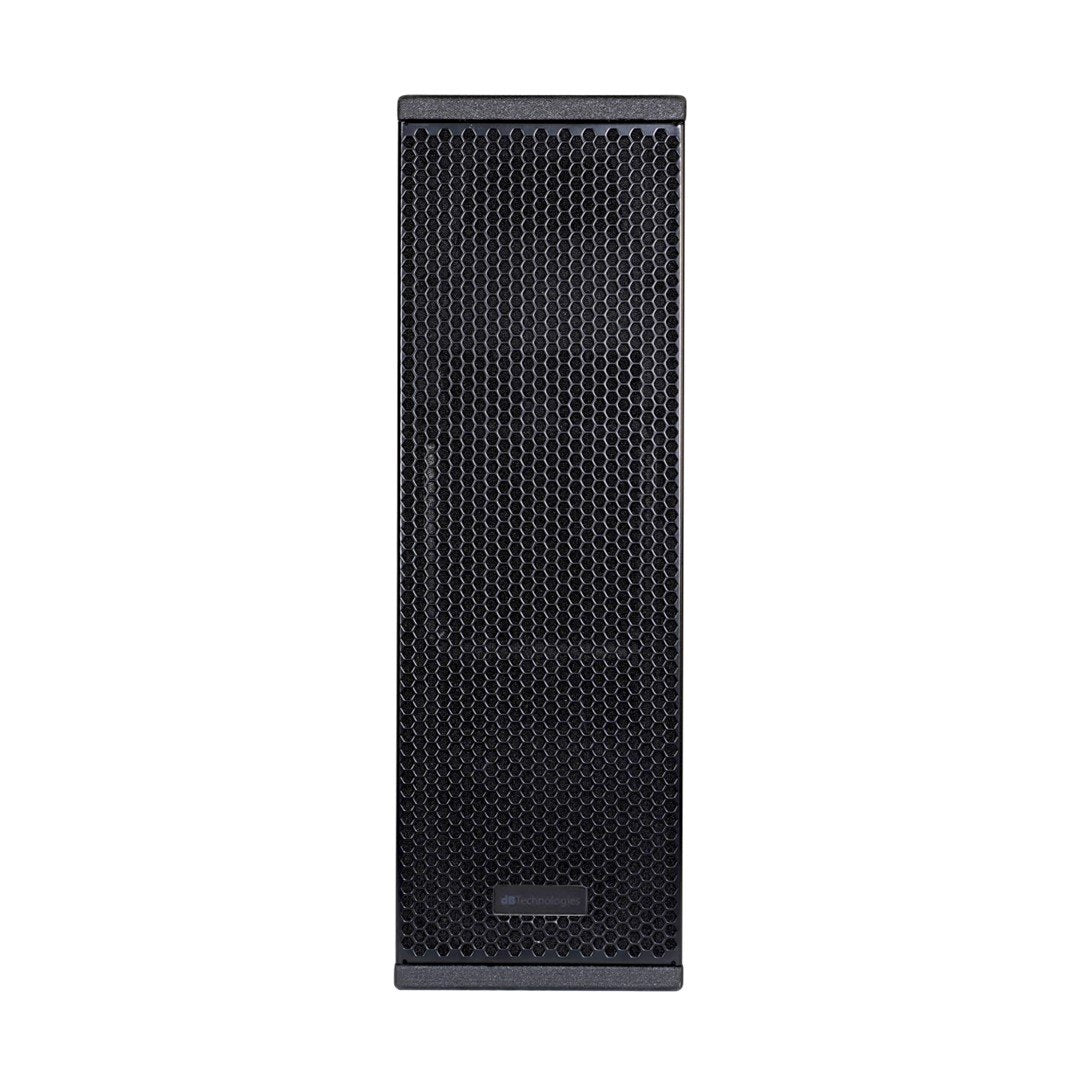

dB Technologies VIO X206-100 Line Array Waveguide
The dB Technologies VIO X206-100 Line Array Waveguide is an ultra-compact active speaker offering a 100° x 15° dispersion pattern and a powerful 900 Watts RMS amplifier. This versatile speaker adapts easily to various environments, making it perfect for live events and corporate settings.
Ultra-Compact Design: The VIO X206-100 features an ultra-compact cabinet that easily integrates into various environments. Its sleek design makes it ideal for live stages, corporate events, and meeting rooms. The lightweight construction allows for easy transport and setup.
Flexible Dispersion Options: Equipped with a removable waveguide, the VIO X206-100 offers a 100° horizontal by 15° vertical dispersion pattern. This feature allows users to adapt the speaker for different applications, whether as a full-range module or as part of a line array system.
High-Performance Components: The speaker incorporates two 6.5” neodymium transducers and a 1” compression driver, driven by a powerful 900 Watts RMS Digipro class D amplifier. This combination delivers impressive sound pressure levels and linear response, ensuring high-quality audio reproduction in demanding environments.
Advanced Remote Control: With built-in RDNet technology, the VIO X206-100 supports remote control via Aurora Net software. This functionality allows users to adjust sound settings and monitor performance in real time, enhancing convenience and flexibility during events.
Versatile Mounting Options: The VIO X206-100 offers a range of mounting accessories, including brackets for speaker stands, wall mounts, and flying configurations. Users can easily customize their setup to meet the specific requirements of any venue or application.
Comprehensive DSP Control: Equipped with a firmware preset button, the VIO X206-100 optimizes its DSP settings for various applications. Users can select different presets to ensure the best sound quality for their specific environment.
Durable Construction: The wooden cabinet features a robust polyurea finish, ensuring durability in various settings. Integrated handles facilitate easy transport, while rigging points provide multiple hanging and mounting options, making it suitable for any professional audio setup.
Specifications:
Technical Data:
- Speaker Type: 2 Way Active Loudspeaker
Acoustical Data:
- Usable Bandwidth [-10dB]: 66 – 18,000 Hz
- Frequency Response [-6dB]: 70 – 17,500 Hz
- Max SPL: 131 dB
- HF Driver: 1 x 1”, 1.75″ voice coil
- LF Drivers: 2 x 6.5”, 1.75″ voice coil
- Directivity: 100° x 15° (Horizontal x Vertical)
Amplifier:
- Amplifier Power: 900 W RMS Class-D Digipro® G3
- Cooling: Convection
- Power Supply: Auto-range SMPS
Processor:
- Controller: DSP 32 bit
- AD/DA Converter: 24 bit/96 kHz
- Limiter: Peak, RMS, Thermal
- Processing: FIR Linear Phase Filters
Input/Output:
-
Signal Input:
- 1 x XLR balanced
- 1 x RJ45 Link (RDNet)
- 1 x USB (Data Service)
-
Signal Output:
- 1 x XLR balanced
- 1 x RJ45 Link (RDNet)
-
Power Socket:
- 1 x PowerCON TRUE1 In
- 1 x PowerCON TRUE1 Out
-
Controls:
- 1 x Input Sensitivity Rotary Encoder (10 presets)
- 1 x Horn Model Selection Switch
- 1 x On LED
- 1 x Status LED
- 1 x Signal LED
- 1 x Limiter LED
- 3 x RDNet Status LEDs
Mechanics:
- Housing: Wooden Cabinet with Polyurea Painting
- Handles: 2 Integrated
- Rigging Points: 2 x M10 Threaded Nuts (top and bottom)
-
Dimensions:
- Width: 210 mm (8.3 in)
- Height: 650 mm (25.6 in)
- Depth: 270 mm (10.6 in)
- Weight: 17.3 kg (38.14 lbs)
