Demo IBANEZ PA300E-NSL With BAG - SOLID GERMAN SPRUCE TOP

The PA300E Acoustic-electric Guitar from Ibanez is your ticket to big, bold jumbo-body tone. This stunning acoustic features a solid German spruce top with pau ferro back and sides, yielding punchy treble, robust midrange, and woody low end. A gorgeous 5-piece African mahogany and pau ferro neck with Macassar ebony fingerboard offers impeccable response and playability whether you're fingerpicking or flatpicking. And when you plug in, an onboard Ibanez AP11 pickup delivers stellar amplified acoustic tone that will mesmerize both you and your audience.

5pc African Mahogany/Pau Ferro neck
The African Mahogany and Pau Ferro 5pc neck has enhanced durability.

Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Macassar Ebony top loading bridge
For a better percussive sound, the Macassar Ebony bridge features a top loading system without a bridgepin. It also offers a fast and easy method for string changes.

Asymmetric jumbo body
Developed for modern fingerstyle players, the asymmetric jumbo body features a low-end focused sound and tapping friendly shape

25 3/4 inch scale
A 25 3/4 inch scale helps to maintain proper tension and pitch even while down tuning, a technique modern finger players often utilize. This scale-length also delivers improved sustain.

Modified X-M Bracing
With several years spent on research and development, Ibanez ultimately developed the exciting, new X-M bracing design. The carefully designed scalloped X-bracing, features strategically positioned tone and finger braces, which transmit string vibration more efficiently through the bridge to the body, greatly enhancing the quality and projection of the sound. This modified X-M Bracing design creates a highly responsive sound with a wide dynamic range, but it also emphasizes a focused low-end, which perfectly complements modern fingerstyle playing.

Ibanez Custom Electronics w/ Magnetic Pickup Volume, Undersaddle Pickup Volume and Contact Pickup Volume
Ibanez Custom Electronics amplify the signal of each pickup naturally throughout the entire tonal spectrum. Blending the sound of the three pickups allows the player to create a variety of tones to suit their particular playing style or genre of music.

Ibanez AP11 Magnetic / T-bar Undersaddle / Contact pickups
The AP11 pickup is small, lightweight, and positioned so it won't inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback and delivers a lively response throughout the entire frequency range. The sound is transparent and reflects the guitar's natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus, and many others. The T-bar under-saddle pickup reduces noise and provides wide range of natural piezo-style sound. It also captures palm hits and delivers a bass drum-like response. The Ibanez contact pickup consists of three transducers facilitating organic individual note clarity and naturally reproduces percussive body tapping techniques. This pickup also adds an airy depth of tone and brightness to the amplified sound.

Dual Outputs (Magnetic/Undersaddle/Contact pickup outputs)
Plugged into the endpin jack only: Magnetic pickup + Undersaddle pickup + Contact pickup with mixed output
Plugged into both the endpin jack and the open jack: Endpin Jack = Magnetic pickup output, Open Jack = Undersaddle + Contact pickup with Mixed output.

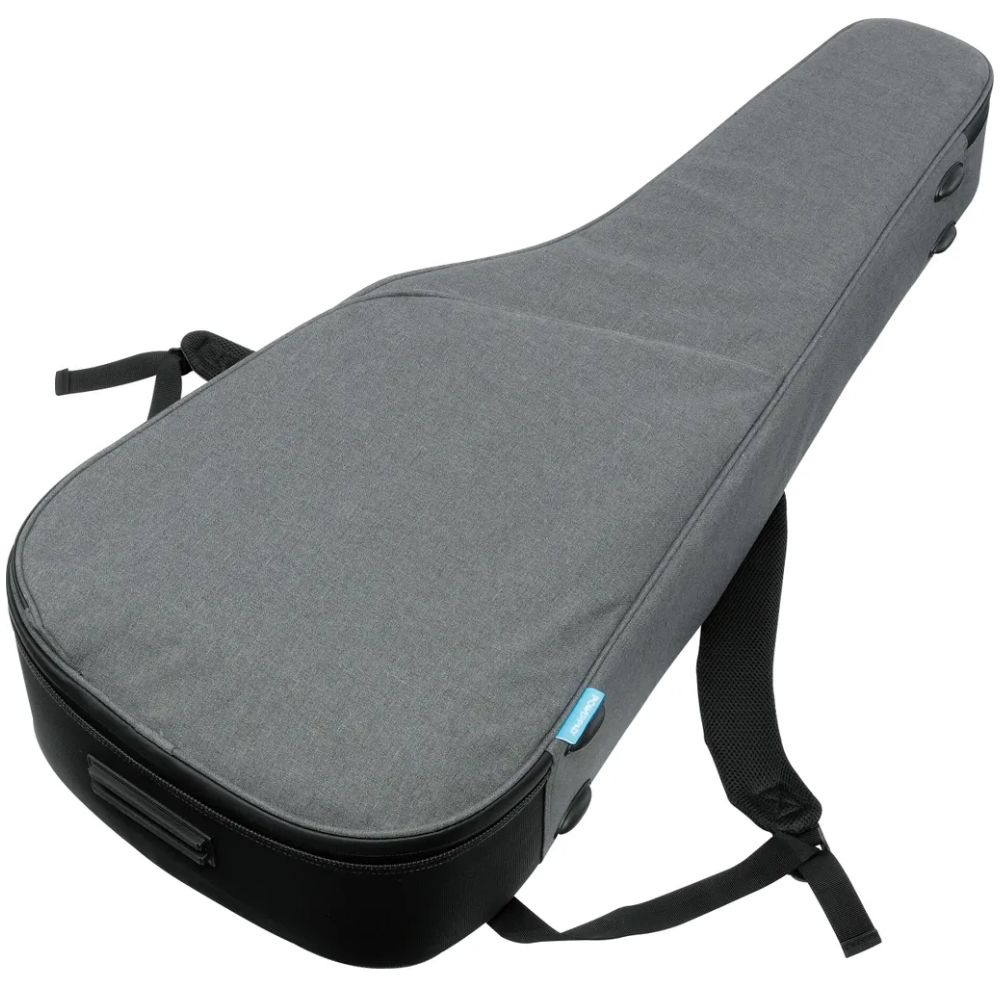

Gig bag included
Ibanez Gig bags are made out of durable materials.

body shape:
Asymmetrical Jumbo body
bracing:
Modified X-M Bracing
top:
Solid German Spruce top
back & sides:
Pau Ferro back & Pau Ferro sides
neck:
PAAfrican Mahogany/Pau Ferro 5pc neck
fretboard:
Macassar Ebony fretboard
bridge:
Macassar Ebony top loading bridge
body binding:
Flamed Maple body binding with rounded body edge
top board purfling:
Wooden purfling
soundhole rosette:
Specially Designed Wooden rosette
tuning machine:
Chrome Die-cast tuners (18:1 gear ratio)
nut material:
Unbleached Oil-impregnated Bone
number of frets:
20
saddle material:
Unbleached Oil-impregnated Bone saddle
strings:
D'Addario® XTAPB1356
string gauge:
.013/.017/.026/.035/.045/.056
string space:
11.4mm
factory tuning:
1E,2B,3G,4D,5A,6E
pickup:
Ibanez AP11 Magnetic, T-bar Undersaddle & Contact
preamp:
Ibanez Custom Electronics w/ Magnetic Pickup Volume, Undersaddle Pickup Volume and Contact Pickup Volume
output jack:
Dual Outputs (Mono Out / Stereo Out)
NECK DIMENSIONS
Scale : 655mm/25.75"
a : Width 45mm at NUT
b : Width 60mm at 14F
c : Thickness 20.5mm at 1F
d : Thickness 22mm at 7F
Radius : 400mmR
