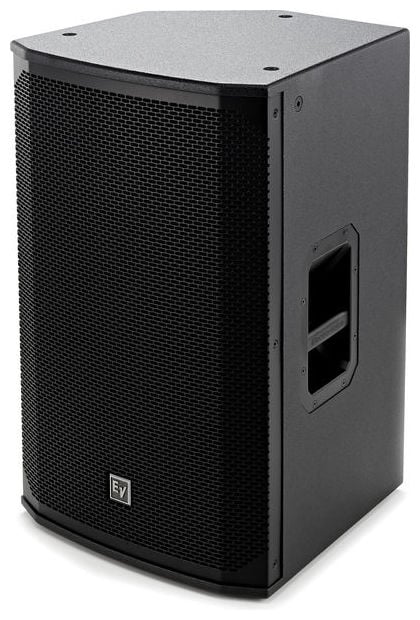

Electro-Voice EKX15

The EKX series is the newest member of the Electro-Voice portable loudspeaker family. It combines legendary EV sound quality and reliability with the latest technology, all in a compact package that is suitable for a wide range of sound reinforcement scenarios, including musicians, DJs, installations and other sound applications. The EKX-15 features a 15" LF driver and a 1" titanium compression driver.

EV-engineered components and EVs patented Signal Synchronized Transducers (SST) waveguide design combine to provide precise coverage and superior sound quality at high SPLs. EVs award-winning industrial design ” with robust wood enclosures and durable EVCoat finish ” ensures that EKX speakers look as great as they sound. EKX-15 delivers up to 132 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (15-inch EVS-15M woofer coupled with a DH-1M 1-inch titanium compression driver).

EKX passive models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight (8) M10 threaded mounting points, aluminum pole-mounts, and all-metal handles.

FEATURES

• Speaker configuration
• Active/passive: Passive
• Type: 2-Way full range
• LF driver: 15"
• MF driver: Not applicable
• HF driver: 1"
• Power amp (active)
• Amplifier type: Not applicable
• Wattage: Not applicable
• Mixer/preamp: Not applicable
• Power capacity (passive)
• 8 Ohms program/peak: 400W/1600W
• 4 Ohms program/peak: Not applicable
• Included power amp: No
• Audio
• Frequency response: 50Hz - 20kHz
• Coverage pattern: 90 x 60
• Max SPL: 132 dB
• Enclosure
• Construction: 15mm plywood
• Width: 17.0"
• Height: 27.0"
• Depth: 16.9"
• Weight: 51.5 lb.
• Inputs
• XLR: Not applicable
• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1
• Output/thru
• XLR: Not applicable
• TRS: Not applicable
• RCA: Not applicable
• SPEAKON: 1
