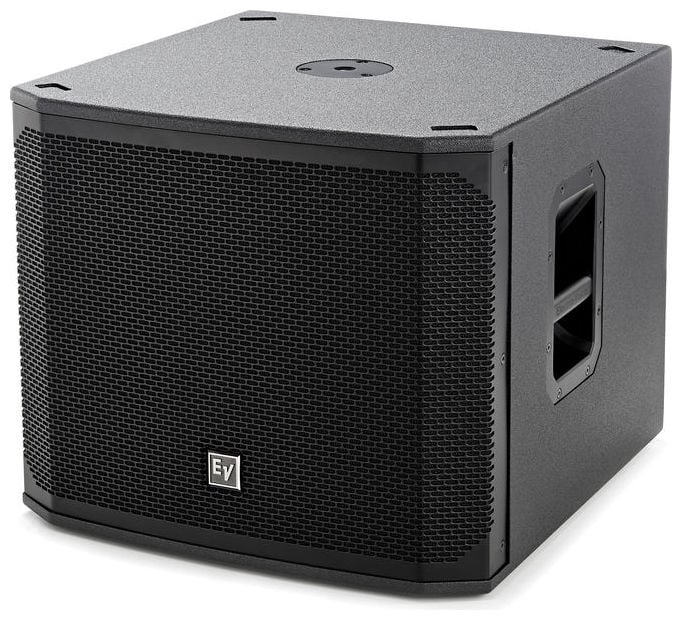

Electro-Voice EKX15S

The EKX series is the newest member of the Electro-Voice portable loudspeaker family. It combines legendary EV sound quality and reliability with the latest technology, all in a compact package that is suitable for a wide range of sound reinforcement scenarios, including musicians, DJs, installations and other sound applications. The EKX-15S features a 15" LF driver in a tuned and ported enclosure.

EV-engineered components, EV’s award-winning industrial design — with robust wood enclosures and durable EVCoat finish — ensures that EKX speakers look as great as they sound. EKX-15S delivers up to 133 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (15-inch EVS-15C woofer).

EKX passive subwoofers are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, aluminum pole-mounts, and all-metal handles.

FEATURES

Speaker configuration

• Active/passive: Passive
• Type: Subwoofer
• LF driver: 15"
• MF driver: Not applicable
• HF driver: Not applicable

Power amp (active)

• Amplifier type: Not applicable
• Wattage: Not applicable
• Mixer/preamp: Not applicable

Power capacity (passive)

• 8 Ohms program/peak: 400/1600
• 4 Ohms program/peak: Not applicable
• Included power amp: No

Audio

• Frequency response: 40Hz - 300Hz
• Coverage pattern: Not applicable
• Max SPL: 133 dB

Enclosure

• Construction: 15mm plywood
• Width: 17.0"
• Height: 27.0"
• Depth: 16.9"
• Weight: 53.8 lb.

Inputs

• XLR/TRS combo: Not applicable
• XLR: Not applicable
• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1

Output/thru

• XLR: Not applicable
• TRS: Not applicable
• RCA: Not applicable
