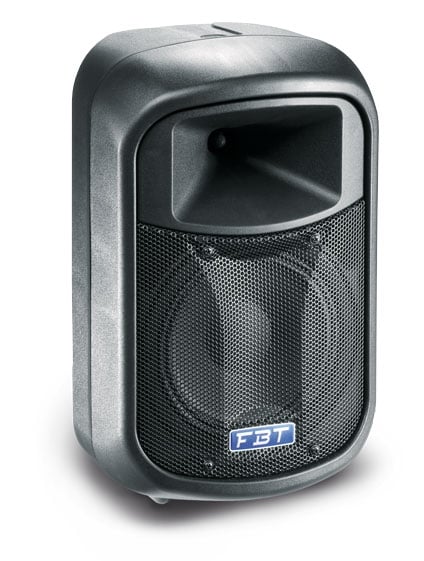

FBT – J8 PASSIVE SPEAKER

The FBT J8 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black or white finish the FBT J8 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. With the use of optional accessories the FBT J8 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor. The FBT J8 is of two way design incorporating an 8″ low frequency woofer and 1″ HF custom compression driver. Cabinet dispersion is 90°H x 60°V allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 2.5kHz. With a frequency range of 65Hz – 20kHz the FBT J8 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 121.5dB. Afront face steel grille protects the speaker from external damage. Ideal for small fixed installations the FBT J8 speaker system have an impedance of 8 Ohm. The two M6 fly points built into the cabinets along with the optional mounting brackets allow the FBT J8 speakers to be surface mounted on walls or ceiling. For portable or fixed use the FBT J8 speakers can be mounted on mic stands by using the optional adapters for vertical mounting. Rear panel connections feature 2 x Neutrik Speakon NL4.

SPECIFICATIONS:

• Configuration: 2 way
• Recommended amplifier: 160 W RMS
• Long Term power: 80 W
• Short term power: 320 W
• Nominal impedance: 8 ohm
• Frequency response: 65Hz - 20KHz -6dB
• Low Frequency woofer: 8 - 1.7 coil inch
• High frequency driver: 1-1 coil inch
• Sensitivity (@1W/1m) : 96.5 dB
• Maximum SPL cont/peak: 118.5 / 121.5 dB
• Dispersion: 90°x60° HxV
• Crossover Frequency: 2.5 KHz
• Recommended HP filter: 55Hz - 24dboct
• Input connector: 2 x speakon N4 in & thru
• Net Dimension (WxHxD) : 255x415x245mm
• Net Weight : 6.6kg
• Transport Dimension (WxHxD) : 330x480x320mm
• Transport Weight: 8.1kg

FEATURES:

• NL-4 Neutrik™ Speakon input and link connectors
• Available in white colour J 8W
• SJ-8 WALL MOUNT BRACKET FOR J8 (185.670FB)
