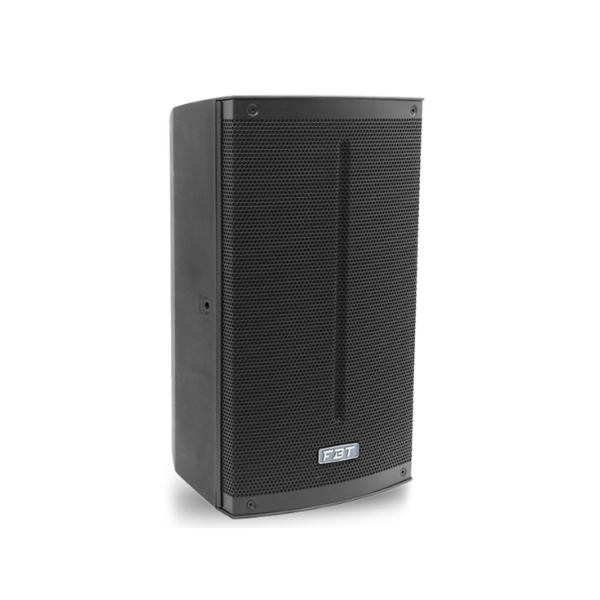

FBT – X-LITE110 10″ PASSIVE SPEAKER 350W RMS

The FBT X-LITE 110 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish the FBT X-LITE 110 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.
The asymmetrical shape of the FBT X-LITE 110 cabinet also allows use as a floor stage monitor. The FBT X-LITE 110 is two way design incorporating an 10″ low frequency woofer and 1″ HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 65Hz – 20kHz the FBT X-LITE 110 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 124dB.
Ideal for small fixed installations the FBT X-LITE 110 speaker have an impedance of 8 Ohm and the internal crossover is at a fixed frequency of 2kHz. The control panel features 2 x NL4 Neutrik speakon. 4 x M10 rigging points built into the cabinet along with the optional mounting brackets allow the FBT X-LITE 110 speaker to be surface mounted on walls or ceilings. A standard 1,38″ speaker stand socket allows the FBT X-LITE 110 to be mounted on speaker stand. A front face steel grille protects the speaker from external damage.

SPECIFICATIONS:

• CONFIGURATION: 2
• RECOMMENDED AMPLIFIER: 350W RMS
• LONG TERM POWER: 175W
• SHORT TERM POWER: 700W
• NOMINAL IMPEDANCE: 8Ohm
• FREQUENCY RESPONSE: 65Hz - 20kHz
• LOW FREQUENCY WOOFER: 10 - 2.5 coil inch
• HIGH FREQUENCY DRIVER: 1 - 1.4 coil inch
• SENSITIVITY (@1W/1M): 96dB
• MAXIMUM SPL CONT/PEAK: 121 / 124dB
• DISPERSION: 90° x 60° HxV
• CROSSOVER FREQUENCY: 2kHz
• RECOMMENDED HP FILTER: HP 55Hz - 12/24 dB oct
• RECOMMENDED EXTERNAL FILTER: FBT DSP Processor
• INPUT CONNECTOR: 2 x Speakon
• NET DIMENSION (WXHXD): 300 x 536 x 301,5 mm
• NET WEIGHT: 14,5 Kg

FEATURES:

• Polypropylene cabinet with gas injection moulding designed to eliminate unwanted resonance
• High-efficiency custom FBT speakers with high linear excursion capacity
• Compression drivers with 25mm aperture and 35mm coil
• 1200W LF and 300W HF high dynamic Class D amplifier
• Universal switching power supply 100-240Vac
• Bluetooth 5.0
• DSP processor with 4 equalization presets
• Advanced filtering algorithms, dynamic equalization of low frequencies, energy control that change depending on the preset chosen
• 3-channel mixer: one dedicated BLUETOOTH 5.0 channel, two independent micro/line channels with separate volume and one with stereo jack input, balanced XLR MIX output or CH1 LINK
• Built-in handles, M10 anchor points for suspended installation, stand support, 30° and 45° diffuser monitor profile.
