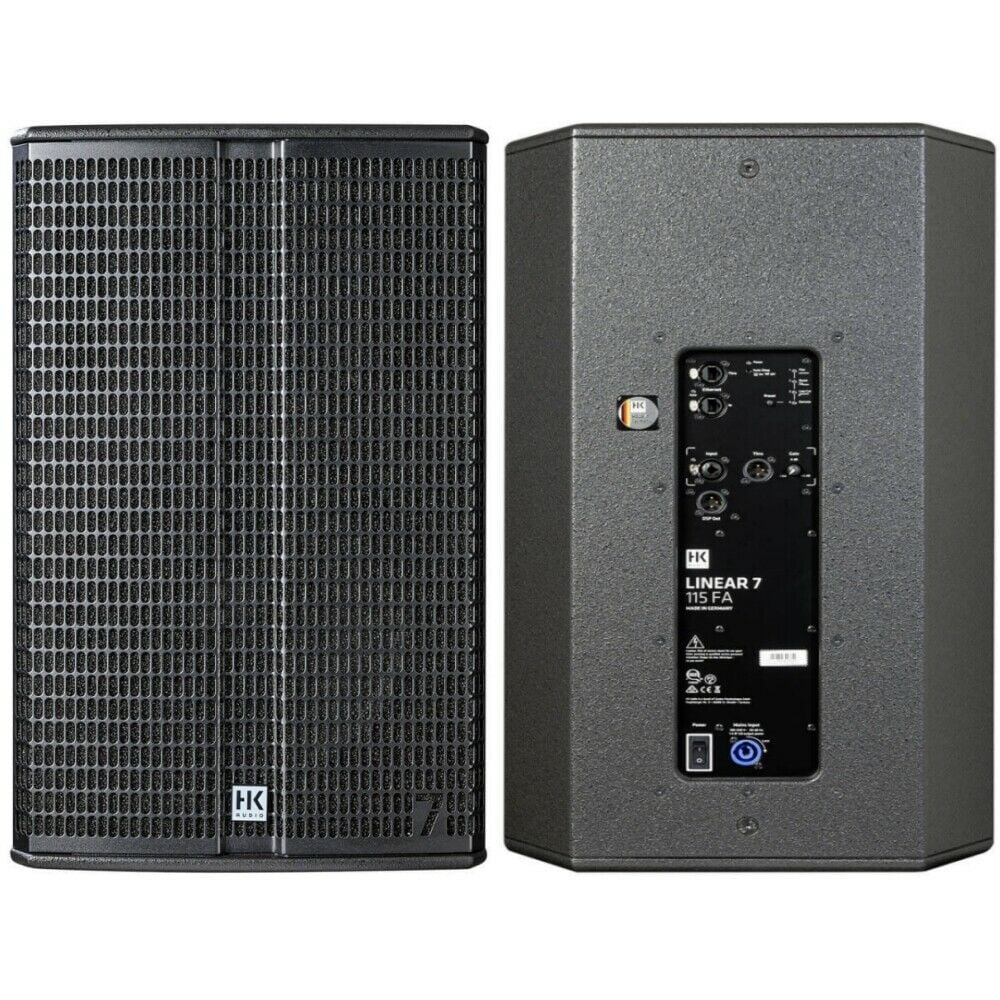

HK Audio LINEAR 7 115 FA

The LINEAR 7 115 FA active and network-compatible full-range speaker delivers more sound pressure in the low-frequency range thanks to its larger cabinet volume. With the Bass Boost preset optimised for each speaker, the low-frequency range can be boosted as required.

Loaded with intelligent networking technology and a powerful DSP platform, you can control every aspect of your Linear 7 system's DSP settings from one central spot. An innovative DSP output lets you integrate an extra non-network-compatible powered cabinet into your network, which you can also control remotely. Plus, with high-resolution low-latency 96kHz AD/DA converters and futureproof MILAN audio-streaming, you have everything you need to create the ultimate sonic performance.

Features:

• Effective maximum sound pressure level thanks to high-performance loudspeakers, drivers and muscular 2000 watts Pascal Class-D amplifiers

• Ultra-precise coverage of frequency spectrum thanks to minimized distortion and optimized directivity

• state-of-the-art DSP platform with integrated fully parametric 10-band EQ, delay and limiting for uncompromised individual configuration

• Latest networking technology to control Theo DSP of every LINEAR 7 cabinet from that one central FOH spot.

• Additional DSP-Out that lets you integrate an added non-network-compatible powered cabinet (such as your LINEAR series active subwoofers) into the network and remotely control it with all the parameters of the LINEAR 7 DSP.

• Direct access to easy selectable presets for use as monitor or in a system, even in a non-network setup

• Futureproof Audio-Streaming (Certification for MILAN is in the works)

• High resolution 96 kHz AD/DA converters, FIR-filtering, low latency

• Multi-purpose housing for use as an FOH or monitor speaker

• User friendly rigging and mounting options

Specifications:

• Max. SPL @ 10% THD: 129 dB half space (70 Hz – 12 kHz averaged)

• Max. SPL peak @ 10 % THD: 134 dB half space

• Frequency response +/-3 dB: 57 Hz – 19 kHz

• Frequency response -10 dB: 54 Hz – 20 kHz

• Power amp output (peak power): 2000 W

• Amp type: Class D - biamped

• Low-/mid speaker: 1x 15", 3" voice coil

• HF driver: 1", 1.7" voice coil

• Horn directivity: 60° x 40° CD horn, rotatable

• Active crossover frequency: 1.5 kHz FIR X-over with 60 dB/oct.

• Maximum input level: +20 dBu

• Analog inputs: 1x XLR combo balanced

• Analog thru: 1x XLR balanced

• DSP Out: 1x XLR

• Network port: Ethercon RJ45, 1x In, 1x Thru

• Filter presets: Flat, Boost, Low Cut, Remote

• Remote software: DSP CONTROL (Windows, Mac OS)

• DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

• Sample rate: 96 kHz

• System latency: Less than 2.6 ms

• Mains connector: 1x Powercon NAC3 In, 100–240 V

• Power consuption: 1 A / 100–240 V nominal according to EN 62368-1

• Clustering angle: 60°

  • Pole mount: DuoTilt 3°/7°

  • Rigging points: 4x M8 (AP-8)

  • Carrying handles: 2x MultiGrip

  • Housing: Hybrid (birch multiplex/MDF)

  • Finish: Black acrylic enamel

  • Front grille: 2 mm metal grille backed with black acoustic foam

  • Dimensions (WxHxD): 45 x 71 x 45 cm 17-23/32 x 27-61/64 x 17-23/32"

  • Weight: 32 kg / 70.5 lbs
