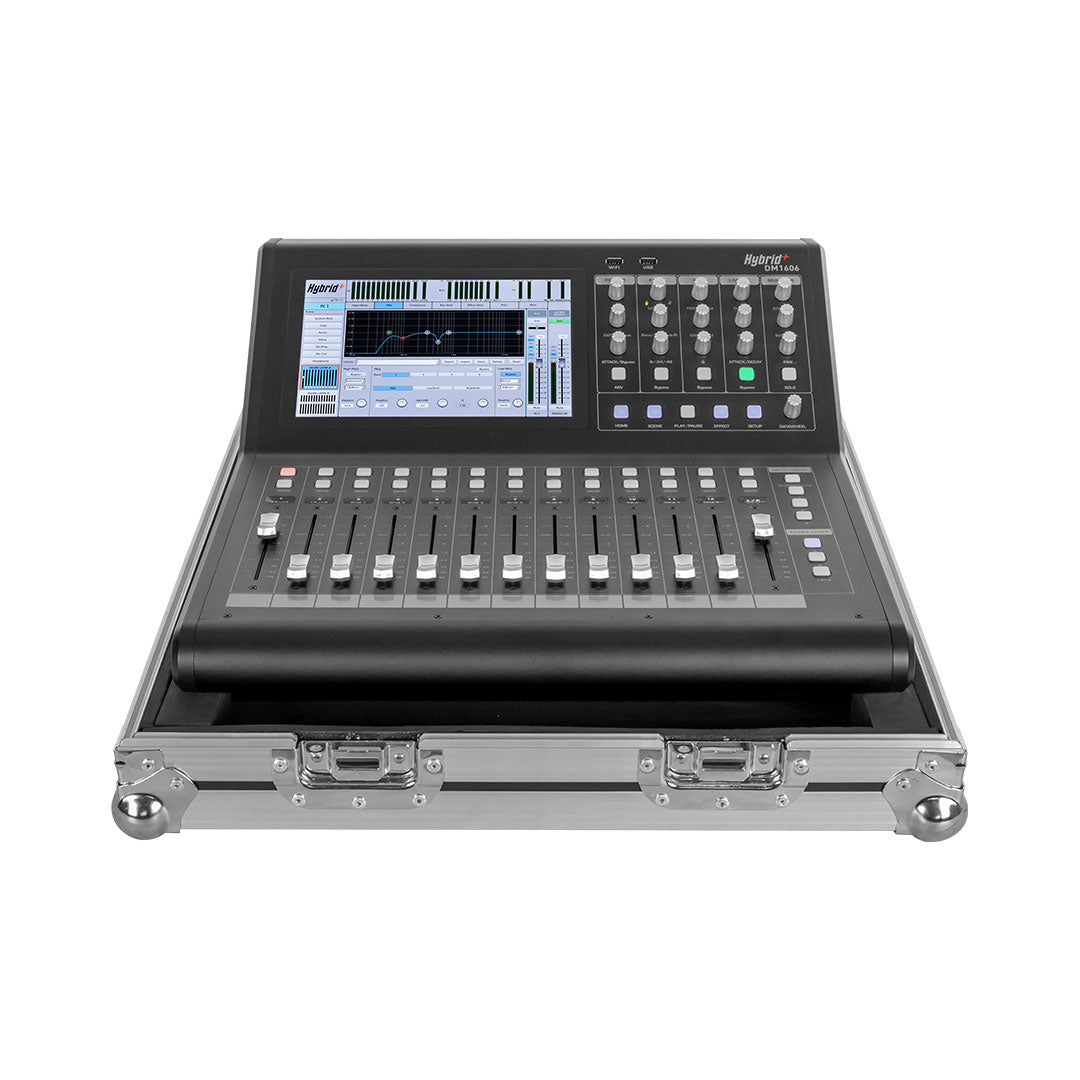

Hybrid+ DM1606

The Hybrid+ DM1606 is a 16-channel digital mixer which has been designed to provide effortless user interface navigation and comprehension, even for live engineers who are not experts with hands-on digital mixer platforms. Specifically, the large 10” touch screen provides clear visibility of information and controls. Through the carefully laid-out onboard controls, quick edits to a live mix (a crucial functionality in the dynamic environment of a live event) are easily achieved through the multi-layer motorised faders and dual-action rotary encoders.

The routing matrix is simple to find and manipulate, and the comprehensive input and output LCD bar displays are easily accessible for distortion-free mixing throughout all stages of the mixer.

Inputs 1-16

• 100mm motorised faders (2-Layer)
• Mute
• Gain control
• 48V phantom
• Signal invert
• Feedback eliminator
• Input gate
• HPF / LPF / 4 X EQ’s (PEQ, low shelf, high shelf)
• Compressor
• In / Out matrix
• Mic – XLR female & line – 6.5mm Jack

Outputs (Bus 1–6)

• 100mm motorised faders
• Mute
• Signal invert
• HPF / LPF / 8 X EQ’s (PEQ, low shelf, high shelf)
• Compressor
• Delay (1.8 Sec)
• XLR male

Effects (1 & 2)

• 100mm motorised faders
• Mute
• Pre-delay (0-250Ms) / dry/wet (0-100) / reverb (0-8Sec) / echo L&R (0-500Ms) / delay (0-500ms) / repeat L&R (0-90)
• Bus send
• HPF / LPF / 3 X EQ’s (PEQ, low shelf, high shelf)
• Save / recall library (6 default + 24 editable)

Master Output

• Dedicated 100mm motorised fader
• Mute
• Signal invert
• HPF / LPF / 8 X EQ’s (PEQ, low shelf, high shelf)
• Compressor
• Delay (1.8 Sec)
• XLR male

General

• 10” Touch screen
• Complete input / output LCD display meter
• 100 scene save / recall
• USB stick play / record
• Input / output copy-paste
• Oscillator (sine, pink, white)
• Auto mix
• Group mute
• Input / output fader link
• Input stereo link
• Aux send 1&2
• DCA 1&2
• Wifi control with optional Wifi dongle
