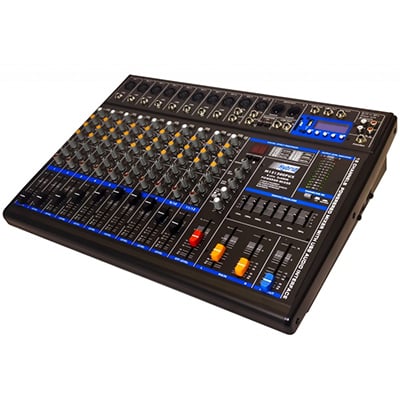

Hybrid M121200PUX

The Hybrid M121200PUX is a 12-channel stereo mixer with 8 × mono mic/line inputs, 2 × stereo line inputs and 2 × 600W loudspeaker outputs. The M121200PUX hosts a number of features, such as a built-in MP3 media player, a digital effects processor and switched phantom power for condenser microphones. This makes it ideal for small productions that require a powered mixer solution, such as those commonly hosted at schools, smaller places of worship and venues with small stages.

Mic Channel Control:

• 8 Mono Mic / Line Channels XLR, 1/4″ – Jack – Balanced
• Mic Input Impedance / 3KΩ
• Line Input Impedance / 47KΩ
• -20dB Attenuation Switch
• Gain Potentiometer
• Individual Low (80Hz), Mid (2.5KHz) & Hi (15Kz) EQ Potentiometer/ -15/+15 dB
• Effects Send Potentiometer
• Monitor Potentiometer
• Pan Potentiometer
• Level Fader 60mm

General:

• Inbuilt Power Amplifier
• 2x600W RMS @ 4Ω / Speakon Outputs
• Unbalanced 1/4″ Jack Outputs Left & Right /75Ω
• Unbalanced 1/4″ Jack Control room Outputs Left & Right /75Ω
• RCA Record Output Left & Right / 1KΩ
• Stereo Unbalanced Aux Return / 1/4″ Jack Left & Right / 10kΩ
• Aux Send 1/4″ / 75Ω
• 2TK Play / Unbalanced RCA Left & Right / 10KΩ
• Inbuilt PSU

Master Controls

• 16 DSP Effects Processor
• Effect repeat Potentiometer
• Effect Level Potentiometer
• Aux Send & Return Potentiometer
• 2TK Play / MP3-USB Level Potentiometer, Switchable
• MP3-USB Media Player
• Master Level Potiometer
• 48V Phantom Power Switch
• 8 Bar LED Master Level Indicators
