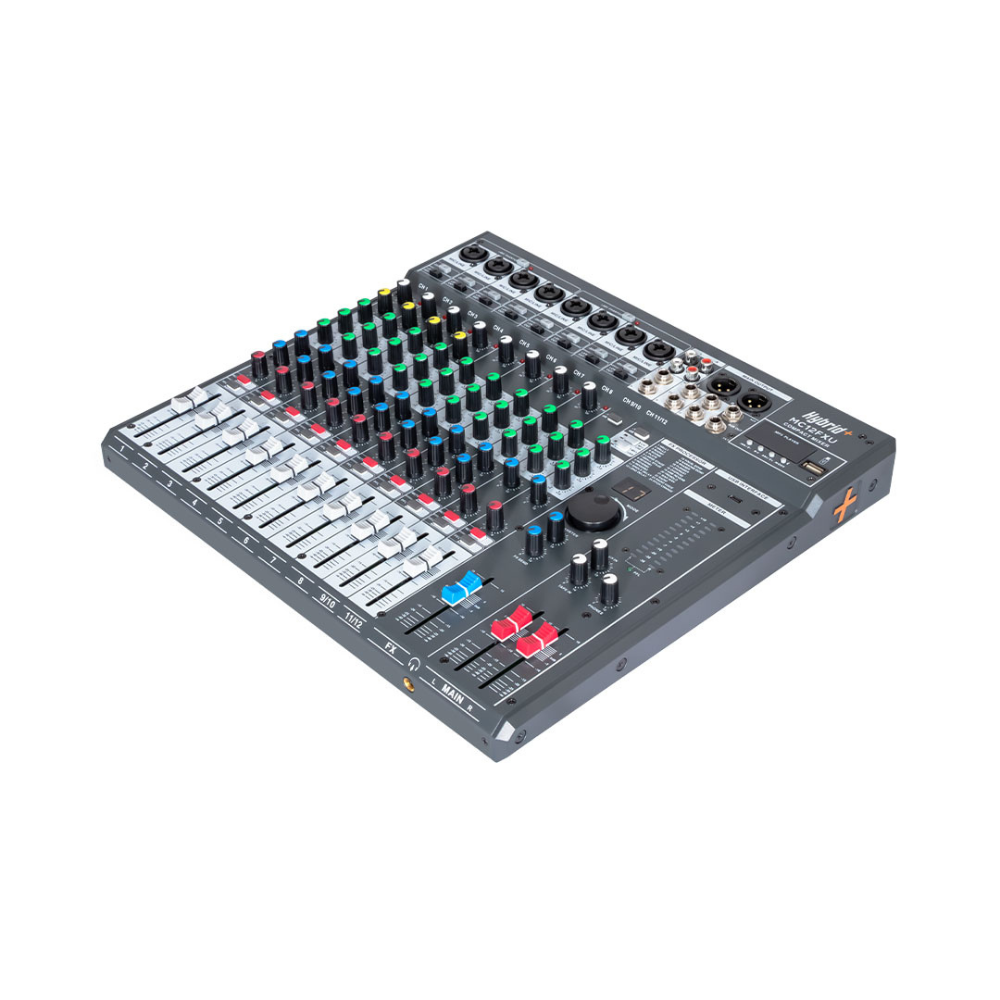

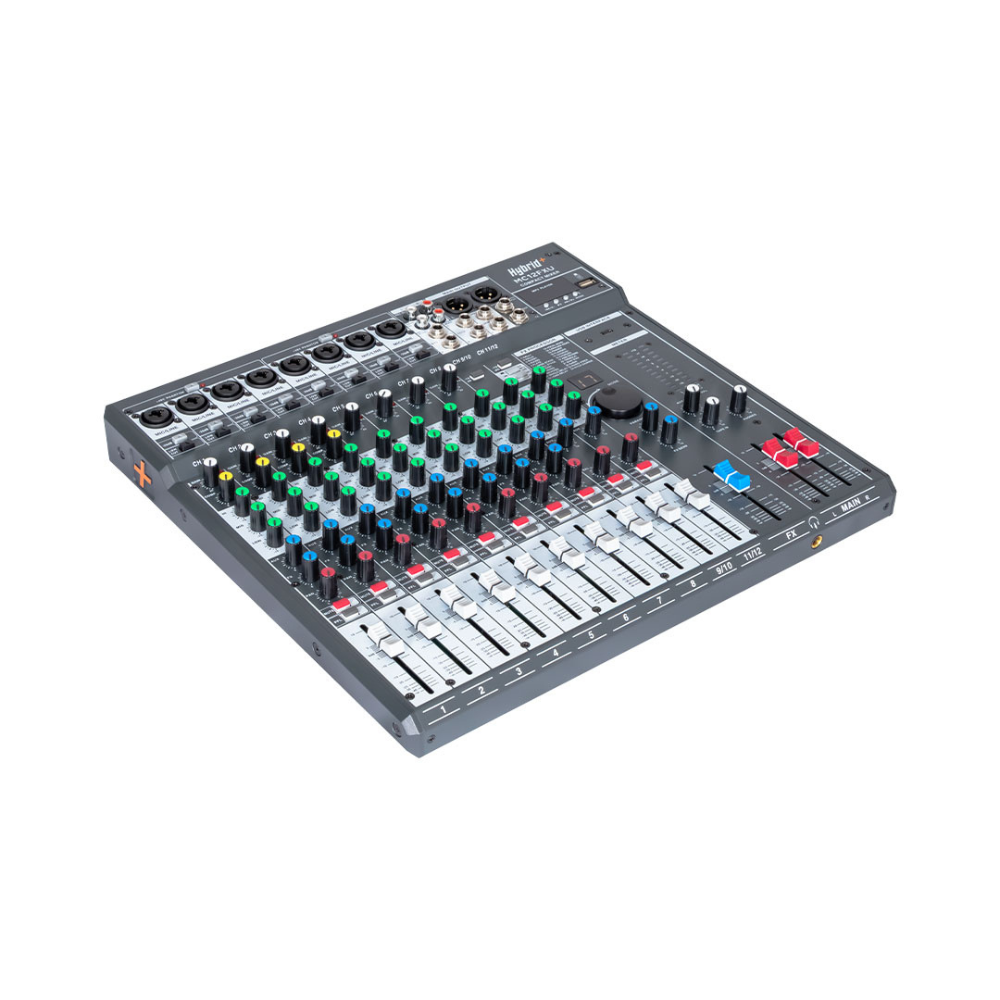

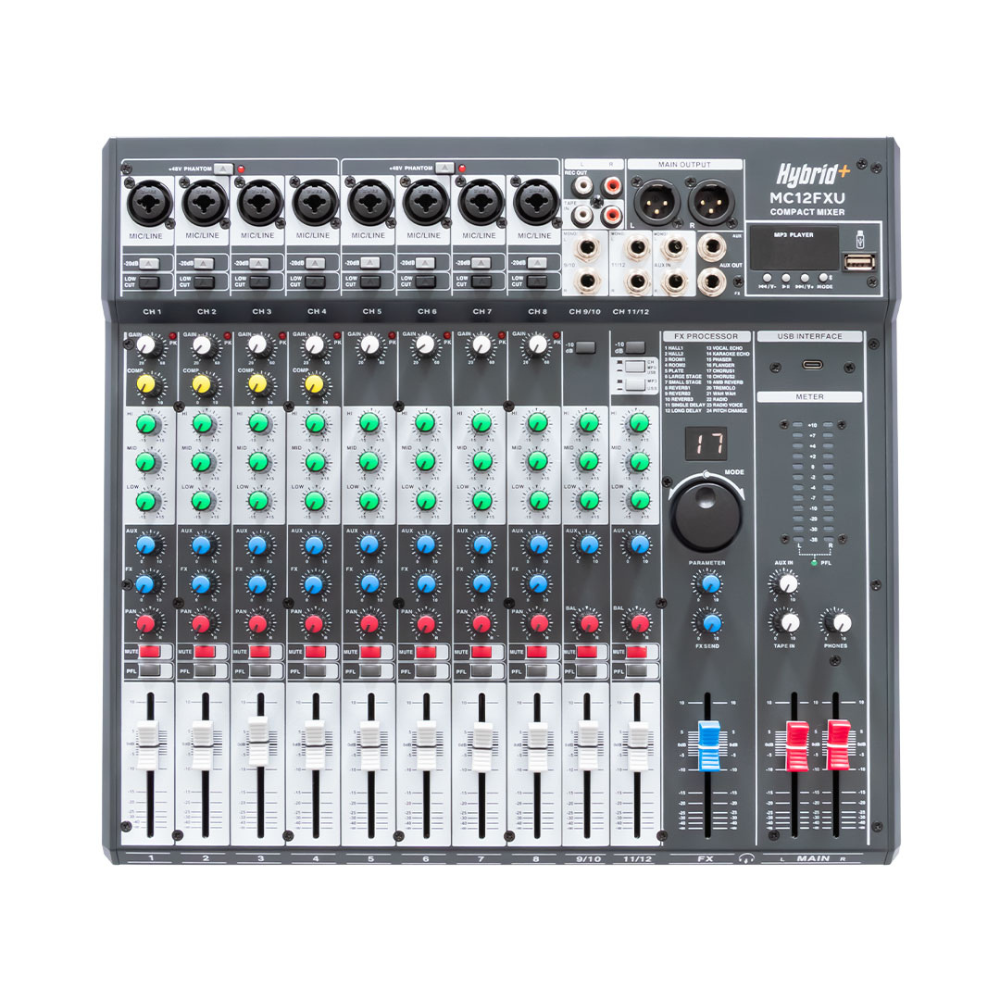

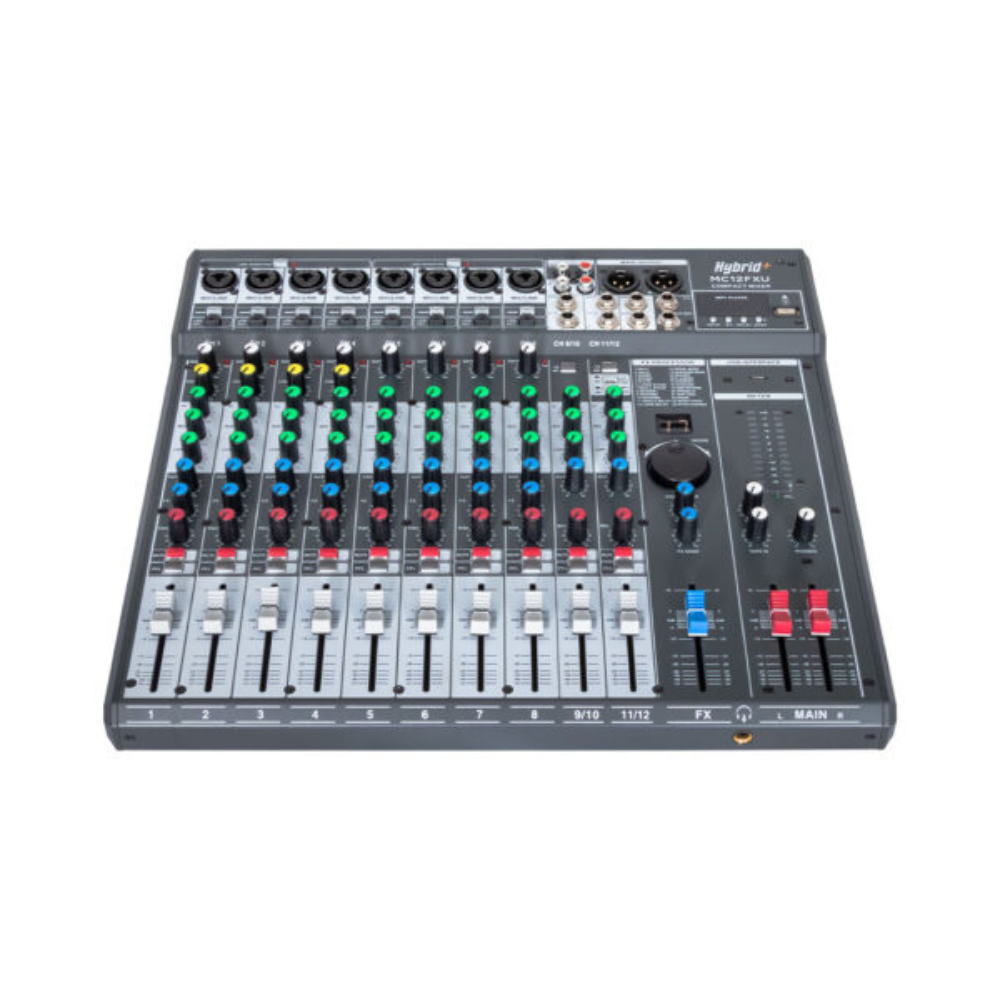

Hybrid+ MC12FXU

The Hybrid+ MC12FXU is a flexible and feature-rich 12-channel analogue mixer, designed for bands, live sound, and studio environments. With extended mic/line input capacity and professional connectivity, it delivers reliable performance for a variety of audio applications.

Inputs & Channels:

• 8 Mono Mic/Line Channels (1–8)
  Each features a combo XLR/6.5mm jack input, -20dB pad, low-cut switch, gain control with peak LED, 3-band EQ (low, mid, high), aux send, FX send, pan control, mute switch, PFL (pre-fade listen), and a 60mm fader.
  Channels 1–4 include dedicated compressor controls.
  Phantom power (48V) is available in two independent groups: Channels 1–4, and channels 5–8.
• 2 Stereo Line Channels (9/10 & 11/12)
  Dual 6.5mm jack inputs with -10dB pad, 3-band EQ, aux send, balance control, mute switch, PFL, and 60mm fader.
  Channel 11/12 is switchable between stereo input, USB audio interface, and MP3 playback.

Built-in Digital Effects:

• 24 selectable effects via rotary encoder
• Adjustable parameter control, FX send level, and dedicated 60mm FX fader

USB & Media Playback:

• Integrated MP3 player with Bluetooth and USB stick playback
• Built-in Type-C USB audio interface for direct recording and playback
• Audio interface cable included: Type-C connector for the mixer, with three output options – Type-C, USB-A, and Lightning – for seamless connection to laptops, PCs, iPhones, iPads, and Android devices

Master Controls:

• Dual 60mm master faders (L/R)
• 12-segment LED meters (switchable between main out and PFL)
• Controls for aux in, tape in, and headphone volume

Connectivity:

• Main Outputs: Balanced XLR (L & R)
• Aux Inputs: 6.5mm jack (L & R)
• Aux Output: 6.5mm jack
• Headphone Output: 6.5mm jack (front panel)
• Tape In/Out: Stereo RCA

Design & Power:

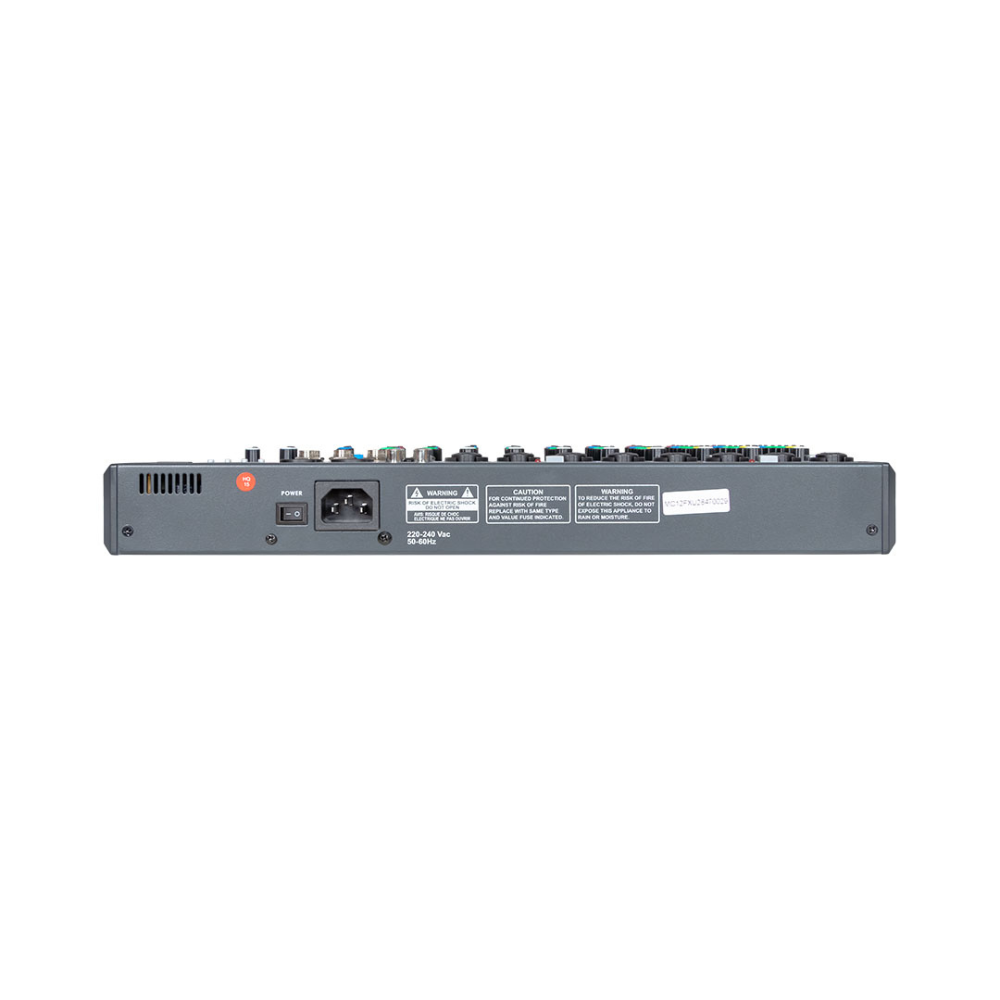

• Internal power supply (220V via IEC cable, rear-mounted power switch)
• 19” Rack Mountable – includes side mounting brackets

HYBRID is a South African brand with over 30 years’ experience in professional audio, stage and lighting. Our brand is aimed specifically at the African market to meet our continent’s demands for features, performance and budget.
HYBRID+ is our flagship brand, offering features and performance comparable to world renowned brands and making HYBRID+ one of the best price-to-performance ratio brands.
