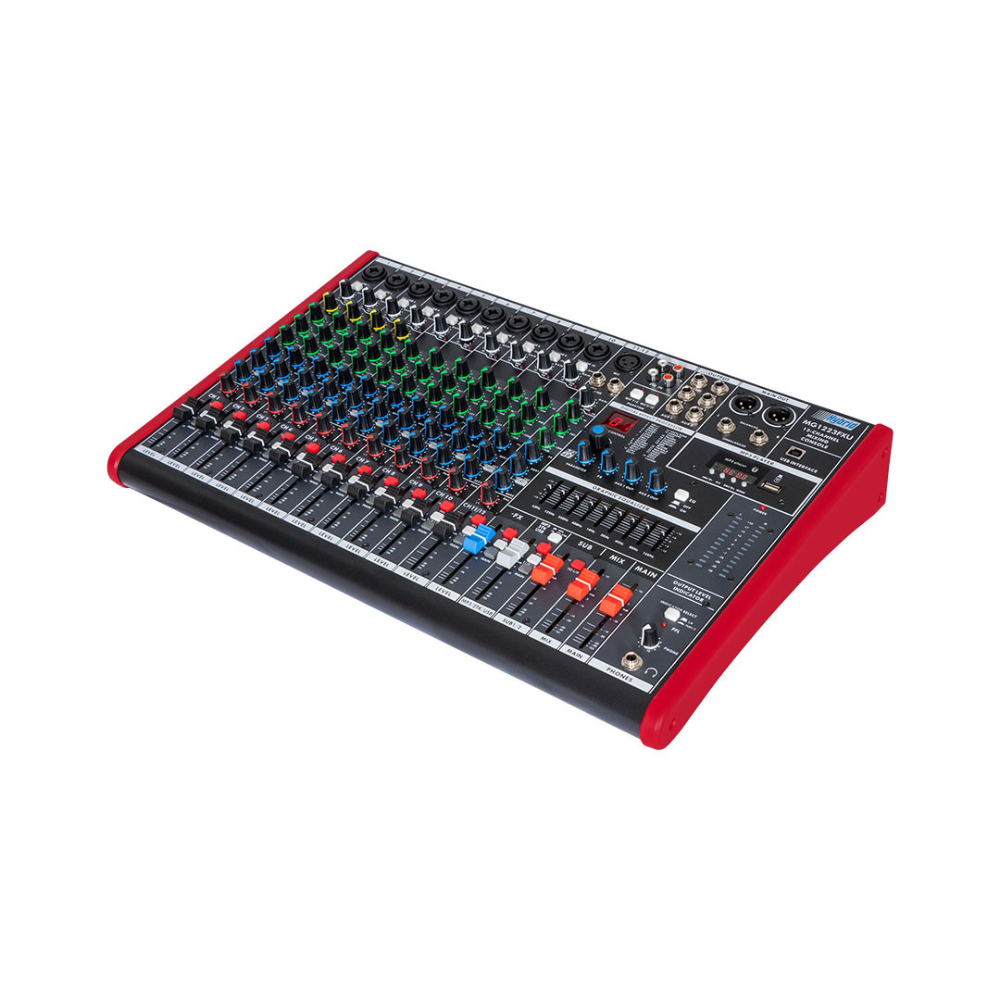

Hybrid MG1223FXU

The Hybrid MG1223FXU is a powerful 12-channel live and studio mixer, designed for larger bands, venues, and performers who demand more inputs, flexible routing, and professional-grade features. Building on the MG series design, it combines reliability, great sound shaping, and modern digital integration—perfect for rehearsal spaces, live stages, and recording setups.

Input Channels

• Channels 1–4 (Mono)
  • XLR / 6.5mm jack combo connectors (mic/line)
  • -20dB pad switches, gain control, peak overload LED
  • Built-in compressor for smooth dynamics
  • 3-band EQ (High / Mid / Low)
  • Effects send, Aux 1 (with pre-fade), Aux 2 send
  • Pan control, 60mm volume fader
  • PFL (Pre-Fade Listen), Sub 1/2 send, Main send switches
• Channels 5–10 (Mono)
  • XLR / 6.5mm jack combo connectors (mic/line)
  • -20dB pad, gain control, peak LED
  • 3-band EQ, effects send, Aux 1 (pre-fade), Aux 2 send
  • Pan control, 60mm fader
  • PFL, Sub 1/2, Main send switches
• Channels 11–12 (Stereo)
  • Female XLR input (mic) + dual 6.5mm jacks (line)
  • Gain, peak LED, 3-band EQ
  • Effects send, Aux 1 (pre-fade), Aux 2 send
  • Balance control, 60mm fader
  • PFL, Sub 1/2, Main send switches

Master Section

• Outputs
  • 2x balanced XLR main outs + 2x unbalanced 6.5mm jack main outs
  • 6.5mm jack outputs: Effects, Mix, Sub1, Sub2, Aux1, Aux2
  • Dual RCA playback input & record output
• Controls & Processing
  • Independent phantom power for Channels 1–4 and 5–10
  • 24-mode effects processor with parameter control
  • 9-band graphic EQ (20mm faders, on/off switch)
  • Multiple 60mm faders: Effects, MP3/2TK/USB, Sub1/2, Mix, Main Output
  • Dual 12-LED bar meters (switchable Main/PFL)
  • PFL volume control with peak LED, plus PFL input jack
• Digital Features
  • Built-in MP3 player with USB input & Bluetooth streaming
  • Integrated USB soundcard (playback & record)
• Power
  • IEC mains connector with on/off switch (rear panel)

Key Highlights

• 12 total channels with flexible mono & stereo inputs
• 3-band EQ on all input channels
• Compressors on first 4 channels
• Multiple Aux & Sub routing options
• Professional-grade effects module & 9-band graphic EQ
• Integrated USB/Bluetooth MP3 player & soundcard
• Rugged design, intuitive layout, and versatile connectivity

The Hybrid MG1223FXU expands the MG series with 12 channels, making it the ideal choice for larger bands, venues, and demanding live or studio setups. It delivers premium sound control, modern playback/recording options, and the flexibility to handle any performance.
