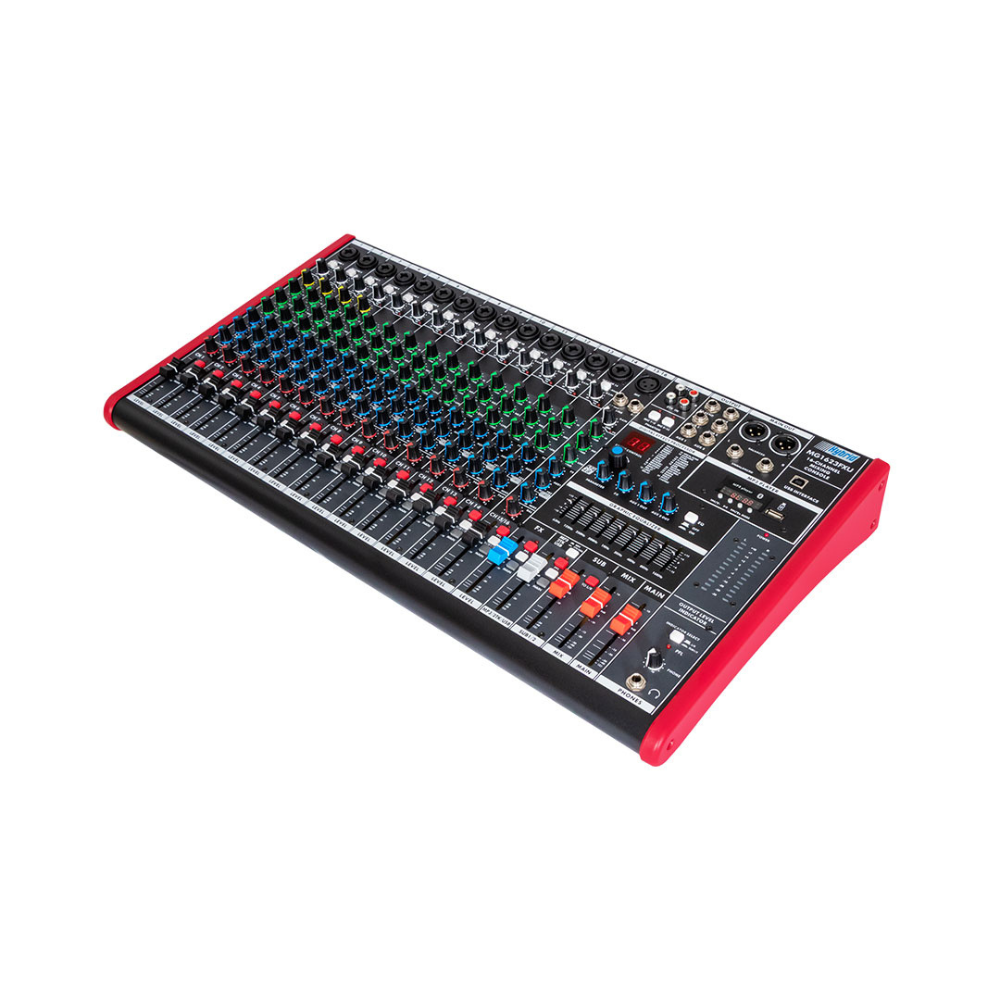

Hybrid MG1623FXU

The Hybrid MG1623FXU is the flagship of the MG series, offering a full 16-channel format for bands, venues, and studios that require maximum input flexibility and professional-level control. Packed with advanced routing, built-in effects, and modern digital features, it’s designed to handle demanding live sound and recording applications with ease.

Input Channels

• Channels 1–4 (Mono)
  • XLR / 6.5mm jack combo connectors (mic/line)
  • -20dB pad switches, gain control, peak overload LED
  • Built-in compressor for smooth dynamics
  • 3-band EQ (High / Mid / Low)
  • Effects send, Aux 1 (with pre-fade), Aux 2 send
  • Pan control, 60mm volume fader
  • PFL (Pre-Fade Listen), Sub 1/2 send, Main send switches
• Channels 5–14 (Mono)
  • XLR / 6.5mm jack combo connectors (mic/line)
  • -20dB pad, gain control, peak LED
  • 3-band EQ, effects send, Aux 1 (pre-fade), Aux 2 send
  • Pan control, 60mm fader
  • PFL, Sub 1/2, Main send switches
• Channels 15–16 (Stereo)
  • Female XLR input (mic) + dual 6.5mm jacks (line)
  • Gain, peak LED, 3-band EQ
  • Effects send, Aux 1 (pre-fade), Aux 2 send
  • Balance control, 60mm fader
  • PFL, Sub 1/2, Main send switches

Master Section

• Outputs
  • 2x balanced XLR main outs + 2x unbalanced 6.5mm jack main outs
  • 6.5mm jack outputs: Effects, Mix, Sub1, Sub2, Aux1, Aux2
  • Dual RCA playback input & record output
• Controls & Processing
  • Independent phantom power switches for Channels 1–8 and 9–14
  • 24-mode effects processor with parameter control
  • 9-band graphic EQ (20mm faders, on/off switch)
  • Multiple 60mm faders: Effects, MP3/2TK/USB, Sub1/2, Mix, Main Output
  • Dual 12-LED bar meters (switchable Main/PFL)
  • PFL volume control with peak LED, plus PFL input jack
• Digital Features
  • Built-in MP3 player with USB input & Bluetooth streaming
  • Integrated USB soundcard (playback & record)
• Power
  • IEC mains connector with on/off switch (rear panel)

Key Highlights

• 16 total channels with extensive mono & stereo input options
• 3-band EQ on all input channels
• Compressors on first 4 channels
• Switchable phantom power for 1–8 and 9–14
• Multiple Aux & Sub routing options
• Professional-grade effects module & 9-band graphic EQ
• Integrated USB/Bluetooth MP3 player & soundcard
• Rugged design, intuitive layout, and versatile connectivity

The Hybrid MG1623FXU is the largest and most versatile mixer in the MG range. With 16 channels, dual phantom zones, and robust digital features, it’s purpose-built for bigger bands, busy venues, and professional sound engineers who need a reliable all-in-one mixing solution.
