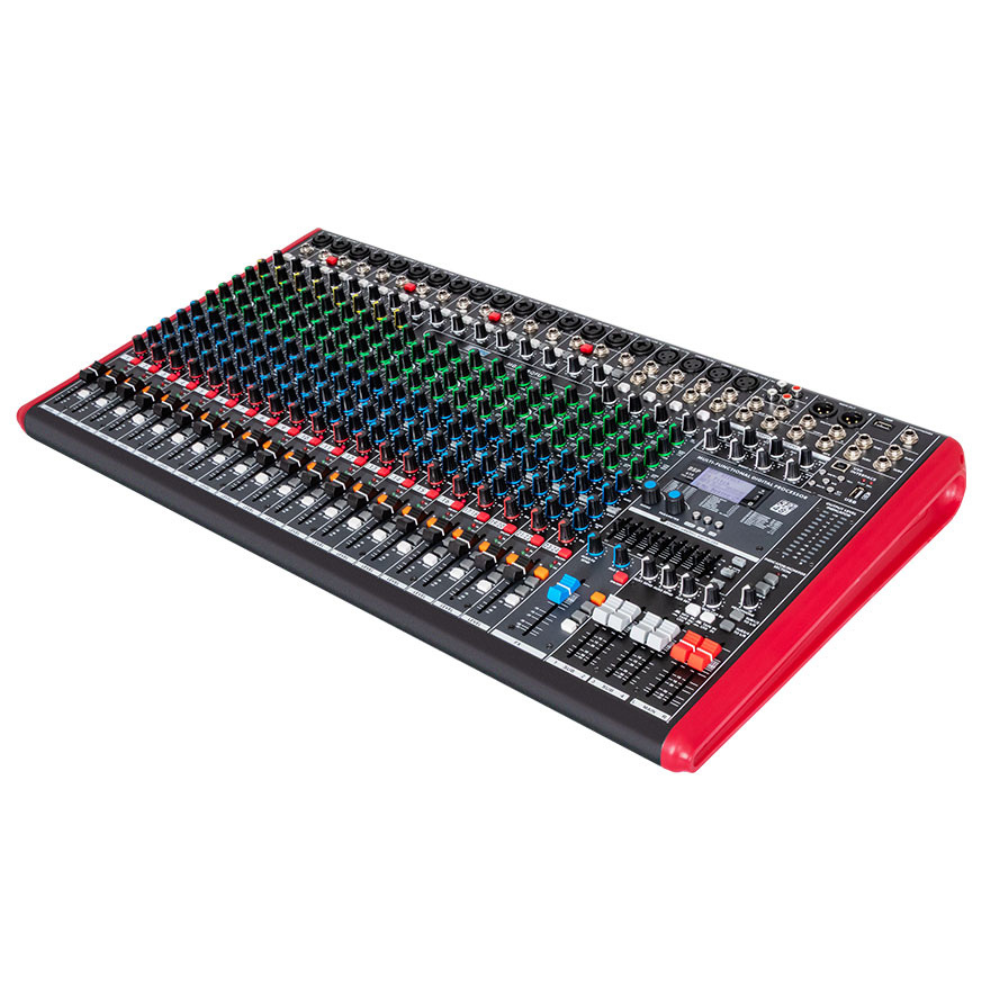

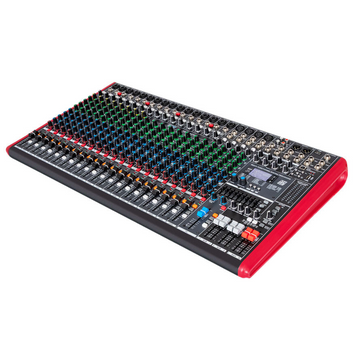

Hybrid MG2408QFUU

The Hybrid MG2408QFUU is the larger format model in the MG-QFUU series, offering a massive 24 input channels for bands, venues, and professional engineers who need expanded capacity without compromising on sound quality or control. With sixteen mono inputs, four stereo channels, extensive routing, and digital integration, it’s built for serious live sound and studio use.

Input Channels

• Channels 1–8 (Mono)
  • XLR / 6.5mm jack combo connectors + dedicated 6.5mm insert jacks
  • -20dB pad switch & low cut switch
  • Rotary gain control
  • Rotary compression control on all 8 channels
  • 3-band EQ: High, parametric Mid, Low rotary controls
  • Aux sends 1–4 (Aux 2 with pre/post switch; Aux 4 doubles as effects send)
  • Rotary pan control
  • Channel on/off switch
  • Signal & peak LED indicators
  • Pre-Fade Listen (PFL) switch
  • Sub 1/2, Sub 3/4, and Main send switches
  • 60mm level fader
• Channels 9–16 (Mono)
  • XLR / 6.5mm jack combo connectors + dedicated 6.5mm insert jacks
  • -20dB pad switch & low cut switch
  • Rotary gain control
  • 3-band EQ: High, parametric Mid, Low rotary controls
  • Aux sends 1–4 (Aux 2 with pre/post switch; Aux 4 doubles as effects send)
  • Rotary pan control
  • Channel on/off switch
  • Signal & peak LED indicators
  • Pre-Fade Listen (PFL) switch
  • Sub 1/2, Sub 3/4, and Main send switches
  • 60mm level fader
  • (Note: Channels 9–16 have the same features as Channels 1–8, but without rotary compression controls)
• Channels 17/18, 19/20, 21/22, 23/24 (Stereo)
  • Female XLR input + dual 6.5mm jacks (stereo line inputs)
  • -10dB pad switch, rotary gain control
  • 4-band EQ: High, Mid-High, Low-Mid, Low rotary controls
  • Aux sends 1–4 (Aux 2 with pre/post switch; Aux 4 doubles as effects send)
  • Rotary balance control
  • Channel on/off switch
  • Signal & peak LED indicators
  • Pre-Fade Listen (PFL) switch
  • Sub 1/2, Sub 3/4, and Main send switches
  • 60mm level fader

Phantom Power

• Phantom not available on: Ch 1, 4, 5, 8, 9, 12, 13, 16
• Bankable phantom groups:
  • Channels 2–3
  • Channels 6–7
  • Channels 10–11
  • Channels 14–15

Master Section

• Outputs
  • Left & right balanced XLR main outputs
  • Left & right unbalanced 6.5mm jack main outputs
  • 4x 6.5mm Aux send outputs
  • Left & right 6.5mm Aux return connectors
  • 4x 6.5mm Sub group outputs
  • 6.5mm headphone output
  • Dual RCA “Tape” inputs + RCA record outputs
• Digital & Processing Features
  • USB lamp connector
  • Built-in USB audio interface / soundcard (record & playback)
  • Integrated MP3 player with USB drive input
  • 24-mode digital effects processor with on/off switch
  • Switchable 9-band graphic EQ with 20mm LED-lit faders & feedback detection (assignable to Aux 1 or Main)
  • Effects routing: assignable to Sub 1/2, Sub 3/4, or Main outputs
  • Effects PFL switch & 60mm effects fader
  • Aux 1 send, Aux 2 send & Aux return rotary controls
  • MP3/Soundcard/Tape In level control
  • Dual 12-segment LED level display
  • Rotary headphone level control
• Faders
  • 4x 60mm Sub group faders (1–4)
  • 2x 60mm Main L/R output faders

Key Highlights

• 24 total input channels: 16 mono (first 8 with compressors) + 4 stereo with 4-band EQ
• Banked phantom power for condenser mics: 2–3, 6–7, 10–11, 14–15
• Comprehensive Aux & Sub group routing options
• Integrated MP3 player, USB soundcard, and digital effects
• LED-lit graphic EQ with feedback detection
• Professional outputs & inserts for live or studio applications
• Rugged build with intuitive controls and precision faders

The Hybrid MG2408QFUU is the ultimate mixer in the MG-QFUU range. With 24 channels, expanded mono inputs, and advanced routing flexibility, it’s designed for larger bands, houses of worship, theatres, and venues that need full-scale mixing power with modern digital features.
