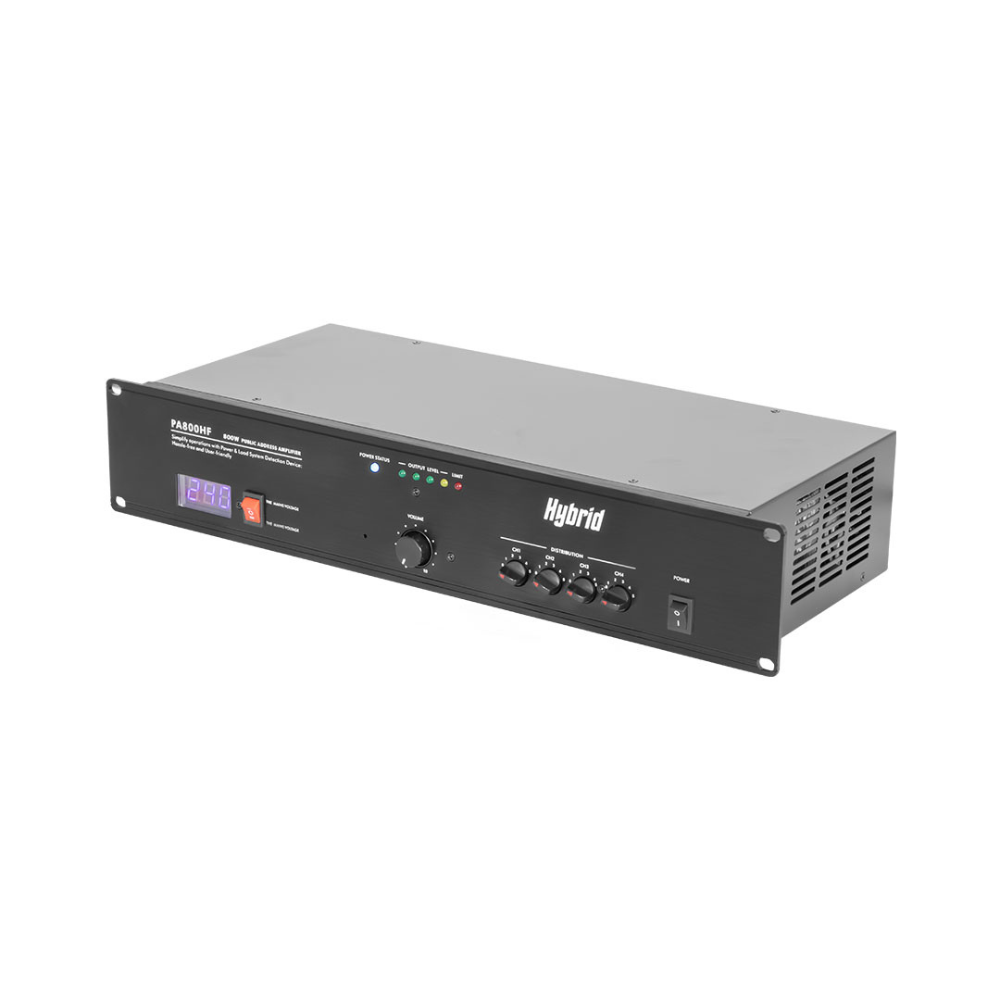

Hybrid PA800HF

The Hybrid PA800HF is a powerful slave amplifier designed for large-scale 100V installations where extra coverage and reliability are essential. Delivering 800W of efficient Class-D power, it integrates seamlessly with master PA systems, providing clear, consistent sound across wide spaces while keeping energy use low.

Key Features

• Class-D Technology – 60% lighter and 40% more energy-efficient than analogue designs
• Flexible Outputs – 4–16Ω low impedance, 4-zone 70V / 100V output with individual volume control
• Audio Connectivity – Balanced XLR and Unbalanced 6.35mm TRS inputs with link outputs for easy expansion
• User Controls & Display
  • Master output level control
  • Zone level adjustment
  • 220V AC mains voltage display
  • 5-segment LED output signal meter
  • Power status LED
• Comprehensive Protection – Over-temperature, over-voltage, over-current, short-circuit, input limiting, and output current protection

Technical Specifications

• Rated Power: 800W
• Output Modes: 4–16Ω / 70V 4-Zone /100V 4-Zone
• Power Supply: 220–240 VAC, 50–60 Hz
• Weight: 5.9 kg
• Dimensions: 482 × 220 × 88.8 mm (2U standard rack-mount)
