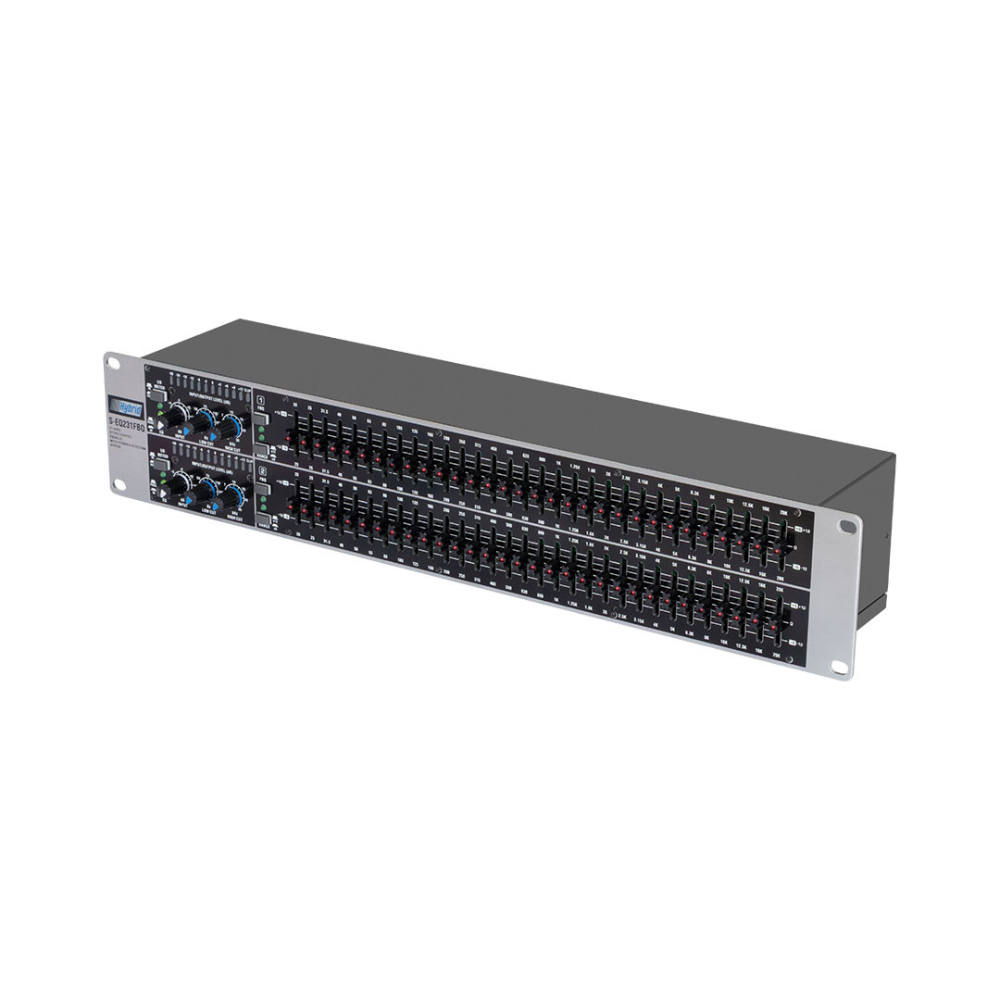

Hybrid S-EQ231FBQ

The HYBRID S-EQ231FBQ is a professional dual-channel 31-band 1/3 octave graphic equaliser designed for precise audio control and real-time feedback management. Featuring adjustable gain ranges (±6 dB or ±12 dB), low and high-cut filters, and an advanced feedback detection system with LED indicators, it ensures clean, balanced sound in any environment. With both balanced and unbalanced inputs and outputs, as well as a dedicated sub output with adjustable crossover, it seamlessly integrates into a wide range of audio systems. The S-EQ231FBQ delivers reliable performance, flexibility, and exceptional sound shaping capabilities.

Key Features

• Dual-Channel Design
  Independent controls per channel including:



  • Input gain control (-15 dB to +15 dB)
  • Bypass switch
  • 12 segment LED Real-time input & output monitoring (Switchable)
• 31-Band EQ (Per Channel)
  • 20mm faders covering  20 Hz – 20 kHz
  • Constant Q design for precise, stable adjustments
  • Switchable gain range: ±6 dB or ±12 dB
• Feedback Detection System (FBQ)
  • FBQ activated on the front panel
  • LED indicators on faders show feedback frequencies
  • LEDs turn off once gain is sufficiently reduced
  • Also indicates highest peak frequency in normal mode
• Adjustable Filters
  • Low Cut Filter (High pass filter): 10 Hz – 400 Hz
  • High Cut Filter (Low pass filter) : 2.5 kHz – 30 kHz
  • Sub Output Crossover: 30 Hz – 200 Hz (adjustable)
• I/O & Connectivity
  • Inputs: Balanced XLR & 1/4″ TRS Jack (parallel)
  • Outputs: Balanced XLR & 1/4″ TRS Jack (parallel)
  • Sub Out: XLR
• Bypass Function
  • One-touch EQ bypass on front panel

 Technical Specifications

• Input Impedance: 40 kΩ (balanced/unbalanced)
• Input Level: 0 dB rated, +20 dB max
• Frequency Response: 10 Hz – 30 kHz (±3 dB)
• S/N Ratio: >94 dB @ +4 dB (22 Hz – 22 kHz)
• THD: <0.05%
• Filter Ranges:
  • Input Gain: -15 dB to +15 dB
  • Low Cut: 10 Hz – 400 Hz
  • High Cut: 2.5 kHz – 30 kHz

 Power & Physical

• Power Supply: 220–240 VAC, 50–60 Hz
• Power Consumption: <18W
• Weight: 1.75 kg
• Dimensions: 480 x 96 x 97 mm
