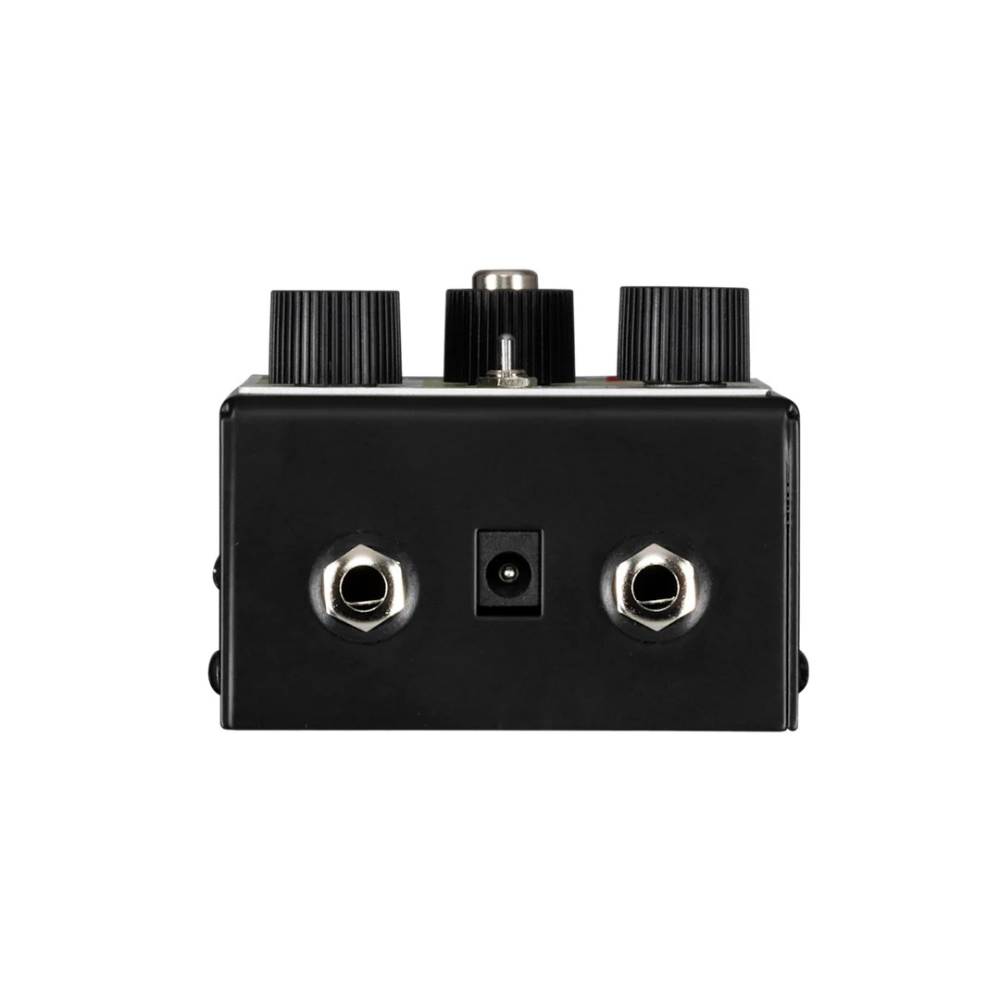

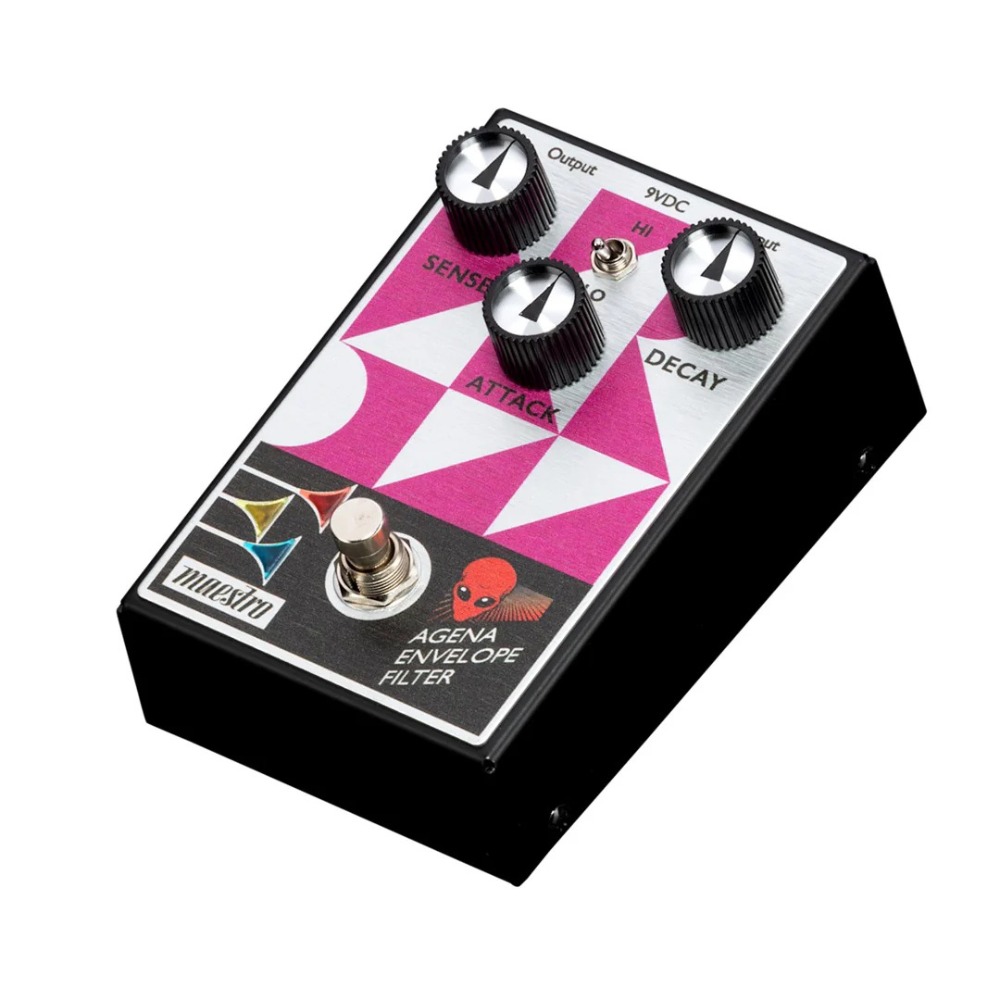

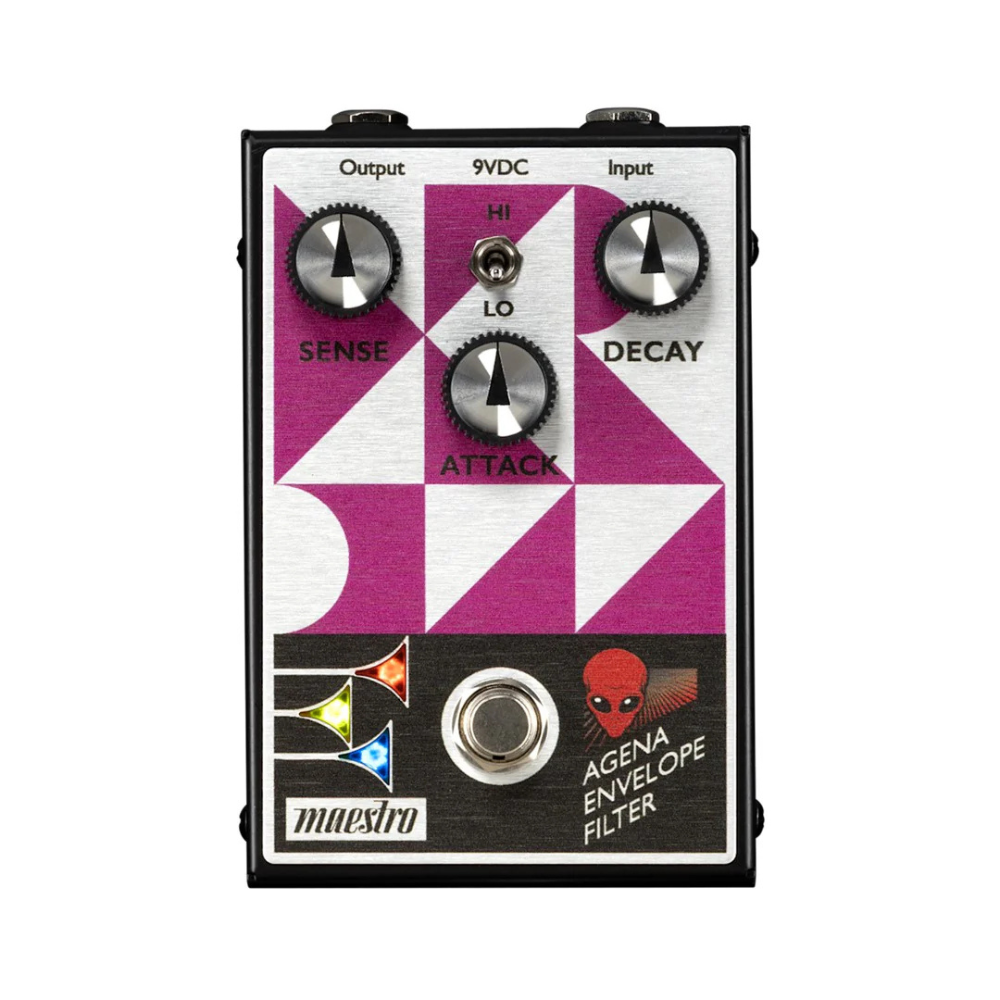

Maestro Envelope Filter Pedal

Unlock expressive tone shaping with the Gibson Maestro MOCAEFP Agena Envelope Filter Effects Pedal — an all-analog filter pedal designed for funk, groove, and dynamic expression. Combining precise control, versatile frequency modes, and true bypass switching, the Agena Envelope Filter delivers rich, responsive filter effects perfect for guitarists, bassists, and experimental sound designers.

Key Features & Benefits:

• All-Analog Envelope Filtering: Delivers warm, natural, and dynamic tone shaping with authentic analog character.

• Dual Frequency Modes: LO mode delivers deep, funky filter sweeps; HI mode creates sharp, expressive tonal shifts for creative performance.

• Precision Control: 3-knob layout (Sense, Attack, Decay) allows detailed adjustments of sensitivity, filter attack speed, and effect decay for ultimate versatility.

• True Bypass Switching: Maintains pure signal when the effect is disengaged, ensuring your tone stays clean and uncolored.

• Visual Feedback: Illuminated Maestro logo with red, yellow, and blue bugles provides clear indication when the pedal is active.

• Compact & Durable: Rugged, lightweight design fits any pedalboard without taking up excess space.

Specifications

• Switches: True bypass footswitch, HI/LO Mode toggle switch

• Signal Processing: All-Analog

• Power Requirements: 9V battery or regulated 9VDC power supply (5.5 x 2.1 mm plug, wired center-negative)

• Current Draw: 26.6 mA

• Input Impedance: 380 kOhms

• Output Impedance: 500 Ohms

• Power-On Function: Integrated into input jack to conserve battery life

• Internal Trim Pot: Adjusts Orbit effect level

• Dimensions: 5.04″ x 3.45″ x 2.5″

• Weight: Net: 1.23 lb (557.9 g)

Whether adding groove to funk riffs, dynamic textures to bass lines, or creative sweeps to your soundscapes, the Agena delivers responsive, expressive control. Perfect for live performances or studio sessions, it’s a compact powerhouse that elevates your tone with unparalleled analog finesse.
