MarkAudio Audio Chain AC System 2

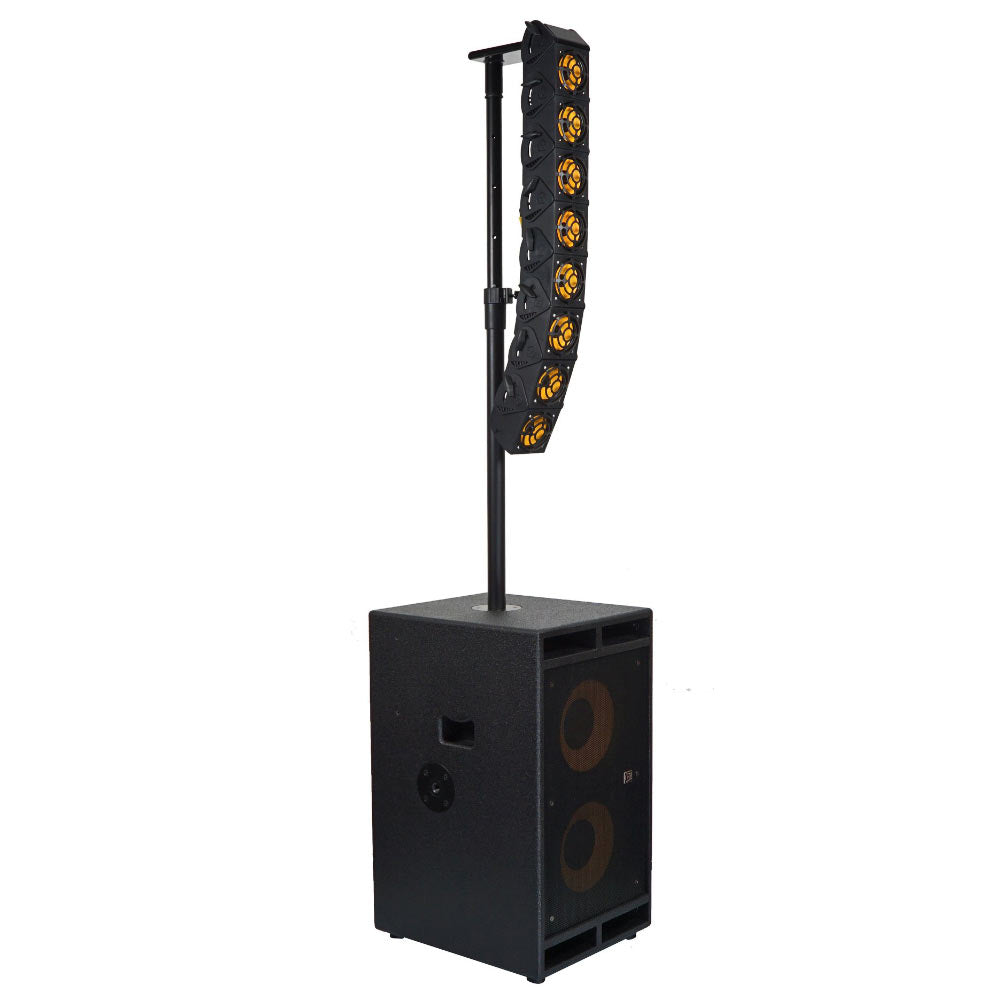

MarkAudio Audio Chain AC System 2 is an innovative portable PA system-concept with outstanding, accurate sound! The AC System 2 has multiple applications: One man bands, small bands, big orchestras, piano bars, clubs and DJ sets, conference halls, schools, churches, home and movie theaters…

Thanks to its adjustable loudspeaker chain, the MarkAudio AC System can fit different application and configurations:

Straight - The AC System accurately reproduces your Music offering many modular configuration options. You can set the AC System 1 and AC System 2 in a straight configuration, properly setting the satellites column to have the system delivering even every subtle sound detail at its best.

J Array - The AC System satellites chain design allows to angle each single AC1 from 0° to 30°, obtaining the optimal J-shape column configuration to offer a perfect listening experience. Hearing everything, everywhere properly enhances the performance and pleases the audience.

360° Mode - MarkAudio is the first offering the 360° setup option thanks to the innovative AC Systems chain design. The eight AC1 modules can be mounted in a circle configuration for excellent intelligibility at 360° having a full coverage area when playing on stages placed in a central position. In this case all the audience and the musicians as well can experience a perfect sound diffusion. This particular option works great also for convention centers, conference halls, shopping malls, churches , retails stores... no matter where you are in the audience, the sound is always reaching you at its best! AC 360 Plate sold separately.

Choose the MarkAudio Audio Chain system that fits your needs, whatever the application: from small to large audiences, any kind of event or permanent installation. Let the audience hear your music at its best. Always hear everything, everywhere in the venue!

Specifications

• Frequency Response: 50 Hz - 20 kHz
• Max SPL: 129 dB
• Satellites: 8x 4”, 8 Ohm Neodymium Full-Range Woofer
• Horizontal Coverage Angle: 90°
• Vertical Coverage Angle: 30°
• Subwoofer: 2x 10” 4 Ohm
• Inputs: 1x Instrument In (Jack), 1x XLR Female, 1x 3.5mm Stereo AUX In
• Input Sensitivity: -1.1 dBu (@ 1 kHz)
• Outputs: 1x Link XLR Left Mono / Stereo
• Power Out: 2x 6.3mm Jack (NOTE: Only use these outputs to connect MarkAudio satellite speakers!)
• DSP Processor: Crossover Frequency 180 Hz, Thermal & RMS Protections, Soft limiter
• Controls: Instrument Input Gain, DSP Presets, Mono/Stereo, Master Volume, EQ, Ground Lift
• Cabinet Material: Multi-Ply Poplar
• Cabinte Handles: 2 Side
• Color: Black With Yellow Speaker Cones
• Pole Mount/Cap : Yes

Amplifier:

• Total Power (4ohm): 2000W PEAK
• High Freq. Power (4ohm): 1000W PEAK
• Low Freq. Power (4ohm): 1000W PEAK
• Total Power RMS (4ohm): 1000W RMS
• High Freq. Power RMS (4Ohm): 500W RMS
• Low Freq. Power RMS (4Ohm): 500W RMS
• Cooling: Convection
• Connections: VDE Connectors

Dimensions:

• Total System Weight: 29kg
• Subwoofer Weight: 23kg
• Satellites Total Weight: 6kg
• System Height: Min. 125cm / Max 170cm
• System Height (Vertical Sub): Min. 143cm / Max 188cm
• System Depth: 48cm
• System Width: 43cm
