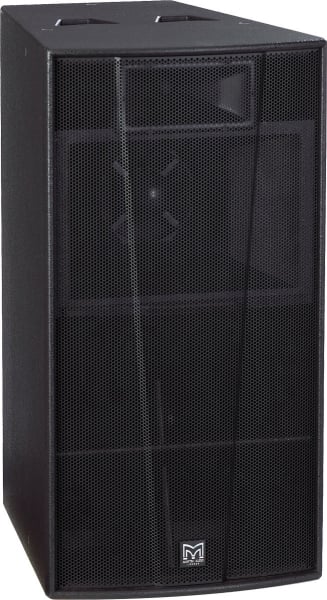

Martin Audio Blackline H3+

The Blackline H3+ is a very high performance, all-horn, three-way system in a single, wide-bandwidth package. New drivers have been developed for improved performance in all bands. The Hybrid™ low frequency section comprises a horn-loaded 15” (380mm)/4” (100mm) voice coil driver that is reflex loaded to extend the LF output to below the natural cut-off point of the horn. The new LF driver features a water resistant cone and triple roll surround for increased excursion.

The mid-horn of the H3+ has a unique ‘phase-ball’ loading device which maintains the constant directivity characteristics of the horn at the upper end of its range. It is driven by a new 10” (250mm) midrange driver with an aluminium demodulating ring for improved high-mid clarity and reduced distortion when driven hard. The 70° x 40° HF section of the H3+ features a neodymium 1” (25mm) exit compression driver with a Kapton diaphragm for high sensitivity and extended HF performance. The internal mid/high passive crossover allows this three-way system to be driven in a bi-amp configuration.

A Martin Audio M3+ or DX1 Electronic Controller is available to provide H3+ crossover and limiter facilities.

FEATURES

• All-horn three-way system
• ‘Phase-ball’ loaded mid-driver
• Hybrid™ LF section
• Fitted with handles and castors
• Five year limited warranty

APPLICATIONS

• Larger club performance
• Large scale installs
