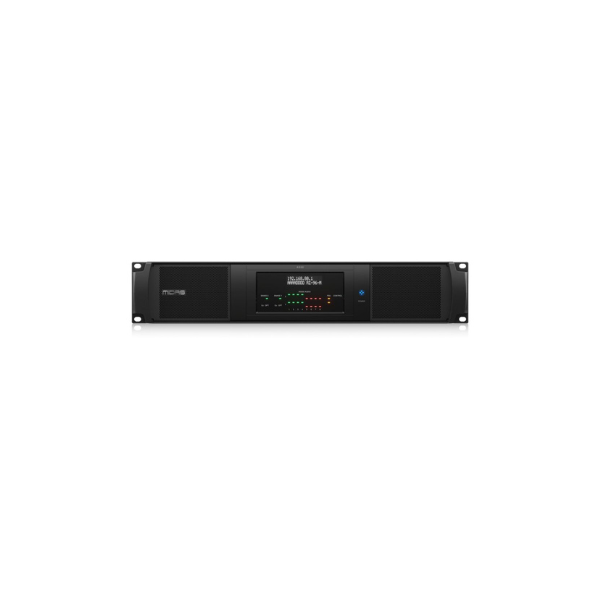

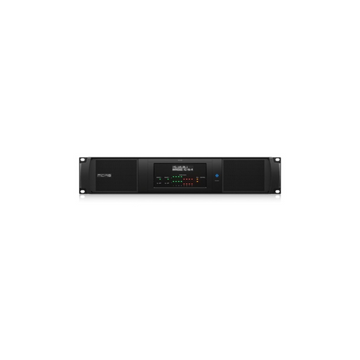

Midas AS-88 Dual HyperMAC to 8-Port Dual AES50 Converter

Dual HyperMAC to AES50 Conversion: The AS-88 seamlessly converts two high-speed HyperMAC connections into eight fully redundant AES50 connections. This powerful bidirectional conversion allows up to 192 audio channels at 96 kHz, delivering unmatched flexibility and scalability for large-format digital audio systems.

Redundant Power Supply for Continuous Operation: Equipped with a dual redundant, auto-ranging universal switch-mode power supply, the AS88 ensures uninterrupted operation in critical live and touring environments. Dual IEC power inlets on the rear panel support independent mains connections for maximum system reliability.

Rugged and Rackmountable Design: Its 2U rackmount chassis provides durability in high-pressure environments while maximizing rack space. The compact, tough build makes it ideal for both touring rigs and permanent installations.

Advanced Clocking and Redundancy Monitoring: The AS-88 can be clocked from either incoming AES50 or HyperMAC ports, supporting flexible sync configurations. It also communicates connection redundancy status to the connected console, clearly indicating the state of each cable and connection.

Industry-Standard Connectivity: With 16 RJ45 AES50 ports and standard HyperMAC optical and copper connectors, the AS88 integrates easily with existing infrastructure. RJ45 connectors allow for copper snake connectivity, while dual-fibre optical connectors support long-distance digital audio transmission with minimal latency.

Visual Feedback and System Control: Front panel LEDs provide immediate visual feedback on power, redundancy, and data status. Users can also perform factory resets via the rear pushbutton, ensuring quick recovery and setup during live events.

Optimized for the HD96 Console: When paired with the Midas HD96 console, the AS88 unlocks full redundancy on both Snake ports, expanding channel capacity and ensuring smooth operation with failover protection.
