Midas - DL152
Midas DL152 PRO Series 24 Output Stage Box
- 24 electronically balanced low impedance line level outputs
- Remote operation up to 100 m via CAT5/5e cable
- Selectable 96 kHz or 48 kHz sample rate operation
- All settings programmable from front panel controls or console

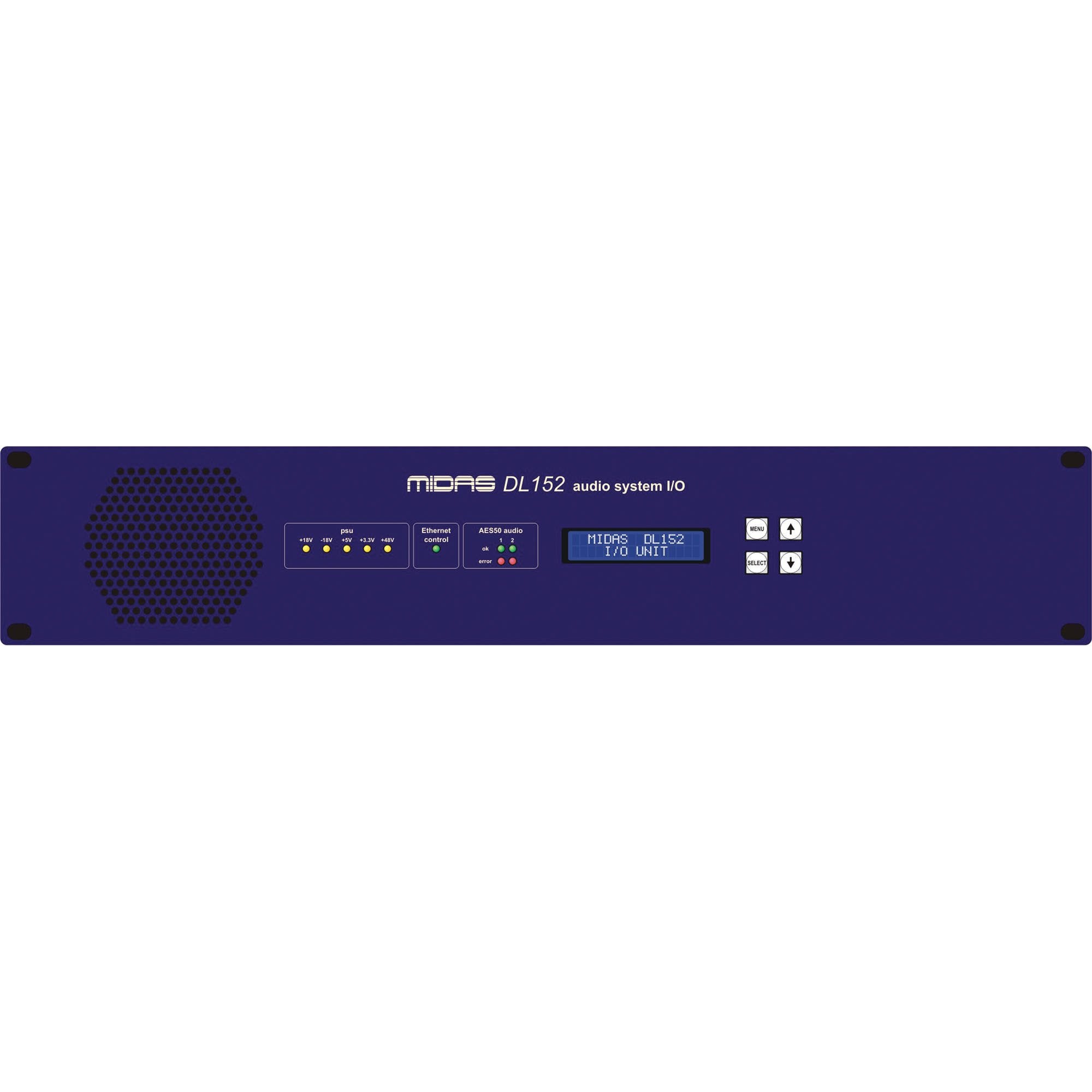

- PSU status indicator LEDs and configuration LCD display on front panel
- Supports dual redundant AES50 networks
- Features industry standard RJ-45 AES50 network ports
- Rugged 2U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
PRO Series DL152

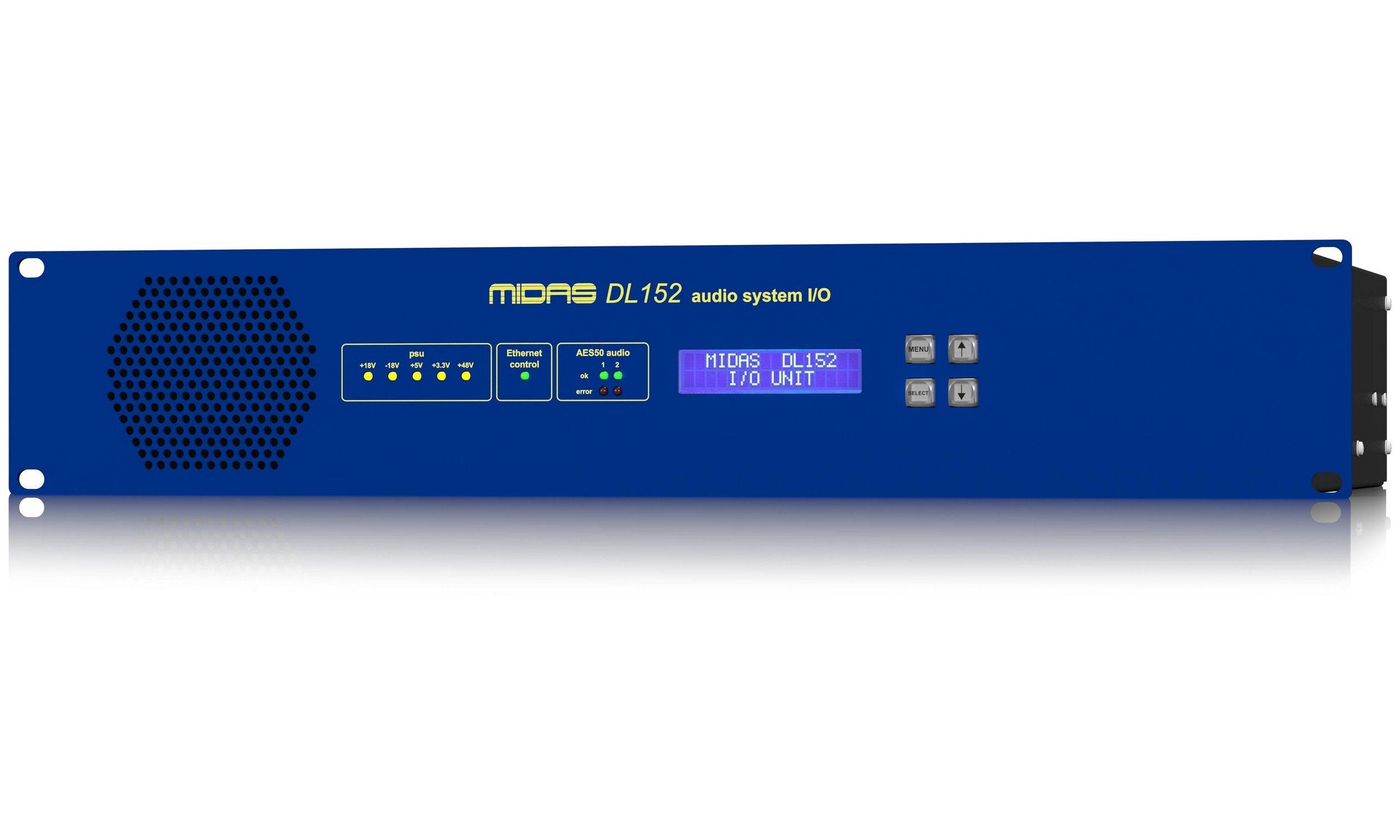

DL152 is a 2U 19″ fixed-configuration rack I/O unit with 24 line level outputs and delivers legendary Midassound quality utilising our time-tested and road-proven technologies. Featuring two AES50 network ports providing dual redundancy, the DL152 is the ideal partner to all Midas PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.
Digital Audio Networking
SuperMAC (AES50-Compliant) digital audio networking technology from Klark Teknik simultaneously provides high channel counts, ultra low and deterministic latencies, sample-synchronous and phase-aligned networked clock distribution, error detection and correction, network redundancy, and ease of deployment and use – to meet the demanding requirements of live concert touring.
DL152 is compatible with all Midas digital consoles and audio system engines, as well as with any other AES50-equipped devices.
High Output Drive Line Outputs with Mute
DL152 features 24 active servo-balanced low impedance line level outputs with high output current capability for driving long cable runs.
The outputs feature an automatic mute facility if the audio signal path is muted by the mixing console operator, and individual LED indicators are provided for each output connector.
Specification
General Specifications
| Sample Rate | 48 kHz, 96 kHz |
| Dynamic Range | >107 dB unweighted (20 Hz – 20 kHz) |
| Maximum Output Level | +21 dBu into 600 O |
| Output Noise (Unity Gain) | -86 dBu |
| Frequency Response | ±0.5 dB (20 Hz – 20 kHz, relative to 1 kHz) |
| THD+N (Unity Gain) | <0.01% |
| Crosstalk @ 1 kHz | <-90 dB |
System Inputs and Outputs
| Analogue Outputs | 24 |
| Type | Line Level |
| Connector | 3-pin XLR Balanced |
| Output Impedance | 50 O |
| D/A Conversion | 24 bit, 96 kHz with 128 times oversampling |
| Network Connections | 2 |
| Connector | Industry-standard RJ45 with status LEDs |
| Redundancy | Dual cable redundancy |
| Network Interface | Conforms to AES50-2011 |
| Ethernet Control Port | 1 |
| Connector | Industry-standard RJ45 with status LEDs |
| Power | 1 |
| Connector | IEC mains inlet |
| Mains Input Voltage | 100 to 240 VAC, 50-60 Hz |
| Power Consumption | <150 W |
| Dimensions | 483 x 416 x 88 mm (19.0 x 16.4 x 3.5″) |
| Net Weight | 6.9 kg (15.2 lbs) |
| Operating Temperature Range | +5°C to +45°C |
| Storage Temperature Range | -20°C to +60°C |
