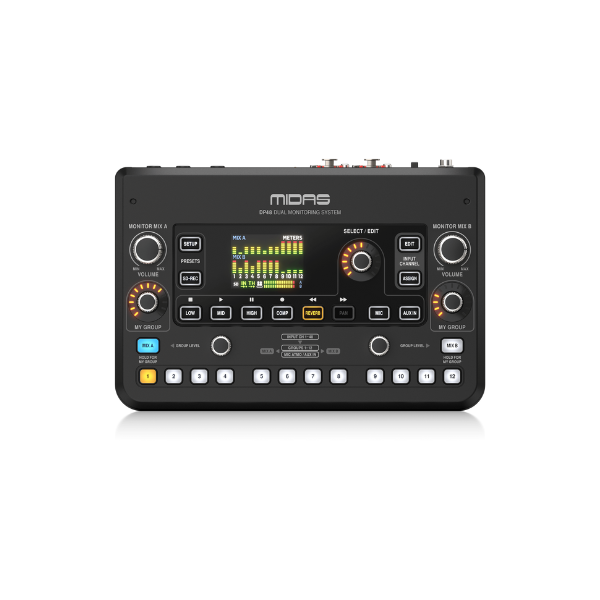

Midas DP-48

Dual 48 channel personal monitor mixer compatible with Midas personal monitoring system hubs

12 stereo groups enable rapid creation and balancing of personal mixes from fully configurable stem groups

Dual mix feature allows independent control of two complete monitor mixes

Integrated SD card interface for stereo recording and playback of rehearsal sessions and performances

Built-in stereo ambience microphone provides on-stage sound feed to remove sense of isolation with in-ear monitors

Studio-quality reverb adds spatial ambience to personal in-ear mixes, independent from main console

Remotely powered via direct AES50 connection from Midas hubs featuring Power over Ethernet (PoE)

Separate DC power supply allows daisy-chaining of DP48 personal monitor mixers and use without any PoE hub

Compatible with any 44.1/48 kHz AES50-equipped devices including Midas and Behringer digital consoles and I/O boxes

Midas PRO SERIES and M32 console input channel label lingand colour information transmitted to DP48 personal monitor mixer via AES50 input channels

AES50 return channels allow personal mixes to be sent back to the console or hub for connection to wireless IEM transmitters

Remote operation up to 100 m via screened CAT5/5e cable

Remote setup and control of DP48 personal monitor mixer via Midas hubs

Full remote control of another DP48 when both connected to the same hub or used in daisy chain configuration

High-contrast 2.4" colour TFT display screen provides clear overview of mix parameters, meters and group assignments

Analogue stereo auxiliary input for local click track

High power headphone output for use in all stage monitoring environments

Fully adjustable limiter allows for safe monitoring levels within sound exposure limits

Mounts securely on microphone stand with DP48MB adaptor (not included)
