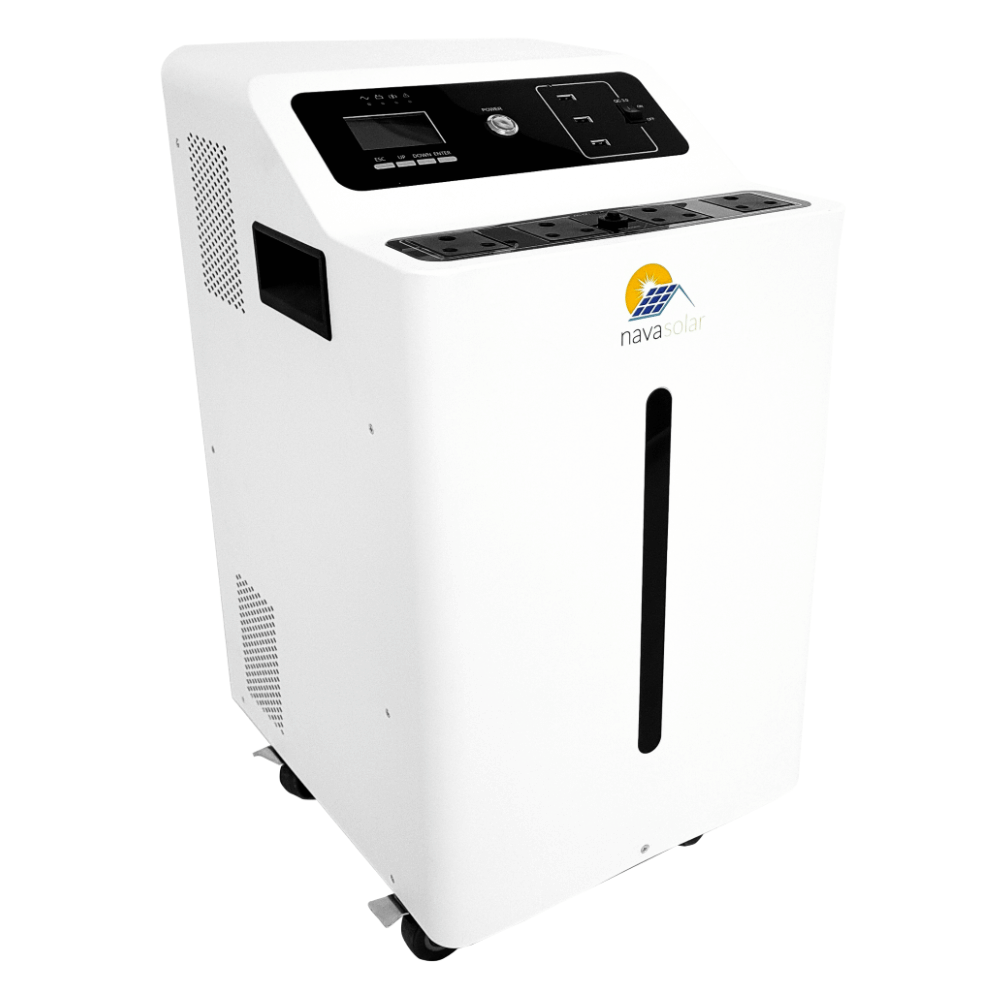

Navasolar TI-1512 Trolley Inverter 1.5KW 1.28KWH L (OPEN BOX, NO WARRANTY)

Navasolar TI-1512 Trolley Inverter 1.5KW 1.28KWH L

Mobile All-In-One ESS

NB: Please ensure the battery breaker is switched on before turning on the inverter

Mobile and Convenient - Plug and Play

Features:

Built-in off-grid solar inverter and lithium battery modules

Pre-programmed system with plug-and-play

Output power: 1.5kW

1.28kWh

Flexible enough to power most home or office appliances to cover load shedding

Mobile on wheels for power on the go

Enhanced surge/lightning protection

AC Breakers and DC fuse protection

Combined AC and solar chargers

Max 1C charging current for quick recharge (1-2 Hours)

Equipped with RS232 and USB communication ports for remote monitoring

What are Trolley Inverters?

Trolley inverters are power inverters that are designed to convert DC voltage from a battery bank into AC voltage that can be used to power electronic devices and appliances. They are called trolley inverters

because they are often designed to be portable, and come with wheels and a handle, similar to a trolley or

cart, making them easy to move around. Trolley inverters are commonly used in off-grid or backup power

systems, where there is no access to grid power or where the grid power is unreliable.

They can be used in conjunction with renewable energy sources, such as solar panels or wind turbines, to

provide a continuous supply of electricity. Trolley inverters come in various sizes and power ratings, ranging

from small inverters that can power a few lights and electronic devices to larger inverters that can power

entire homes or even businesses. They may also include features such as built-in battery chargers, input/

output ports, and monitoring systems to monitor battery voltage and power output.

What are the Benefits?

Backup Power: One of the main benefits of using an inverter trolley at home is that it can

provide backup power in case of a power outage.

Clean Energy: Inverter trolleys can be paired with renewable energy sources such as solar

panels, wind turbines, or hydro turbines to provide clean energy.

Noise-Free Operation: Inverter trolleys are typically quiet and do not produce any noise

or fumes, unlike generators that run on fuel.

Cost-Effective: Inverter trolleys can be a cost-effective solution for backup power

compared to generators that require fuel and maintenance. They are also more efficient,

meaning they can provide more power for a longer period of time on the same amount of

battery power.

Easy to Install and Use: Inverter trolleys are easy to install and use, and most come with

user-friendly interfaces and monitoring systems that allow you to monitor battery voltage,

power output, and other parameters.

Mobile All-In-One Energy Storage System, Enjoy The Life Without Load Shedding

Specifications:

Model: NV-TI-1512

Rated Inverter Power: 1500VA/1500W

Input:

Voltage: 230Vac+-5%

Voltage Range: 154-264Vac

Frequency Range: 40-70Hz

AC Input Connection: IEC C20

PV Input Connection: PP75

Output:

AC Voltage Regulation (Batt. Mode): 230VAC+-5%

Surge Power: 1500VA

Efficiency (Peak): 93.00%

Transfer Time: 20 ms (Typical)

Waveform: Pure Sine Wave

Output Type: 4 x AC Outlets, 2 x USB PD Ports (QC3.0)

Solar Charger and AC Charger:

Solar Charger Type: PWM

Maximum PV Array Power: 960W

Maximum PV Array Open Circuit Voltage: 30-85Vdc

Maximum Solar Charge Current: 40A

AC Charge Current: 30A

Maximum Charge Current: 50A

Battery:

Capacity: 1280Wh (25.6V 50Ah)

Nominal Voltage: 25.6Vdc

Charging Voltage: 27.6V

Max Continuous Discharging Current: 50A

Communication:

Communication Ports: USB/RS232 (Baud Rate2400)

Protection:

Protection Type: AC Input/Output Breakers, Battery Switch, Earth Leakage Circuit Breaker

Environment:

Humidity: 20%-95% (No Condensing)

Storage Temperature: -15 - 60

Operation Temperature: 0 - 40

Physical:

Dimension (net), D x W x H (mm): 280x280x520

Dimension (package), D x W x H (mm): 330x330x600

Net Weight (kg): 20

Gross Weight (kg): 25
