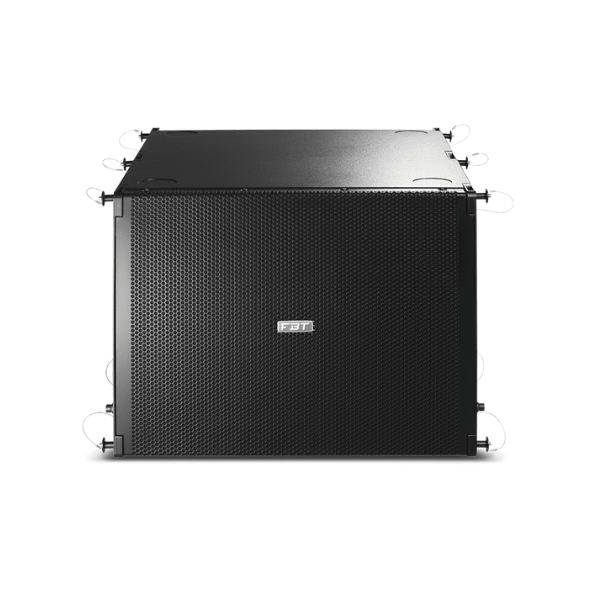

FBT MUSE118FSA FLYABLE ACTIVE SUB 1X18” 1600W RMS

The FBT MUSE 118FSA powered subwoofer meet the following performance criteria: frequency response of 33Hz to 100Hz,
Spl cont/peak of 135/139dB half-space. The FBT MUSE 118FSA/FSCAis a hybrid band-pass cardioid arrayable subwoofer design
incorporating 1×18″ B&C neodymium magnet high excursion woofer with 3.5″ voice coil. Hybrid configuration permit to obtain
extension and speed of vented with high SPL and acoustic filtering of band pass. The FBT MUSE 118FSA/FSCA can be suspended
facing forward or rearward with capability of front-or rear mounting the grille and amp module for aesthetic uniformity in cardioid
configuration (hardaware fully compatible with MUSE 210). The FBT MUSE 118FSA/FSCA provides a DSP with 8 presets; the
control panel provides XLR «in&link», volume, preset, delay, phase 0°-180°, ground lift switch. The FBT MUSE 118FSA/FSCA
feature Baltic birch plywood construction covered in a scratch resistant black paint.
Ideal for small to medium sized applications in: Theatres, Concert Halls, Clubs, Places of Worship, Conference Rooms, Indoor Sports, Arenas & Stadiums

SPECIFICATIONS:

• Configuration:1 HYBRID BANDPASS way
  Built-in amplifier LF/HF:1200 W RMS
  Built-in amplifier peak LF/HF:2400 W
  Frequency response:33Hz-100Hz -6dB
  Low Frequency woofer:1X18 - 3.5 coil - neodymium inch
  Maximum SPL cont/peak:135/139 half-space dB
  Dispersion:Omnidirectional HxV
  Input impedance:22 Kohm
  Crossover Frequency:preset dependant KHz
  AC Power requirements:640 VA
  Input connector:XLR with loop
  Power cord:5/ 16.4 m/ft
  Net Dimension (WxHxD):652x500x750mm
  Net Weight:67kg
  Transport Dimension (WxHxD):700x650x800mm
  Transport Weight:77kg
  Product colour: Black
• Colour temperature: 2000K - 8000K
• Light source: 4-in-1 LED
• Colours: Red, Green, Blue, White
• LED power: 40W
• Quantity of LEDs: 19
• Beam angle: Min: 6°
• Beam angle: Max: 40°
• Zoom: Yes
• Illuminance: 100.101 lx @ 1m
• Head movement: Pan: 540°
• Head movement: Tilt: 180°
• Flash rate per second: 1 - 22Hz
• Modes: Automatic programs, DMX, Master/Slave
• Sound to light mode: Yes
• RDM: Yes
• DMX channels: 21, 35, 78, 111
• DMX connection: 3-pin XLR, 5-pin XLR
• Display: LCD
• IP rating: IP65
• Cooling: Temperature controlled fan
• Power plug: P-Con TR1
• Power consumption: 8.00 - 3.67A
• Power supply: 100-240VAC 50/60Hz
• Dimensions (L x W x H): 408 x 302 x 490 mm
• Weight (kg): 22.15
• Included accessories: Mounting bracket, Power cable

FEATURES:

• 15mm / 0.59" birch plywood enclosure Class D amplifier delivering 1200W 460mm/1x18" B&C neodymium magnet with 88mm/3.5" coil Frequency response 33Hz - 100Hz DSPon board with 8 presets Input panel with XLR «in&link», volume, preset, delay, phase, GND lift switch SPL(cont/peak) 135/139dB half-space Suspension hardware fully compatible with MUSE 210 Completely Manufactured in Italy
