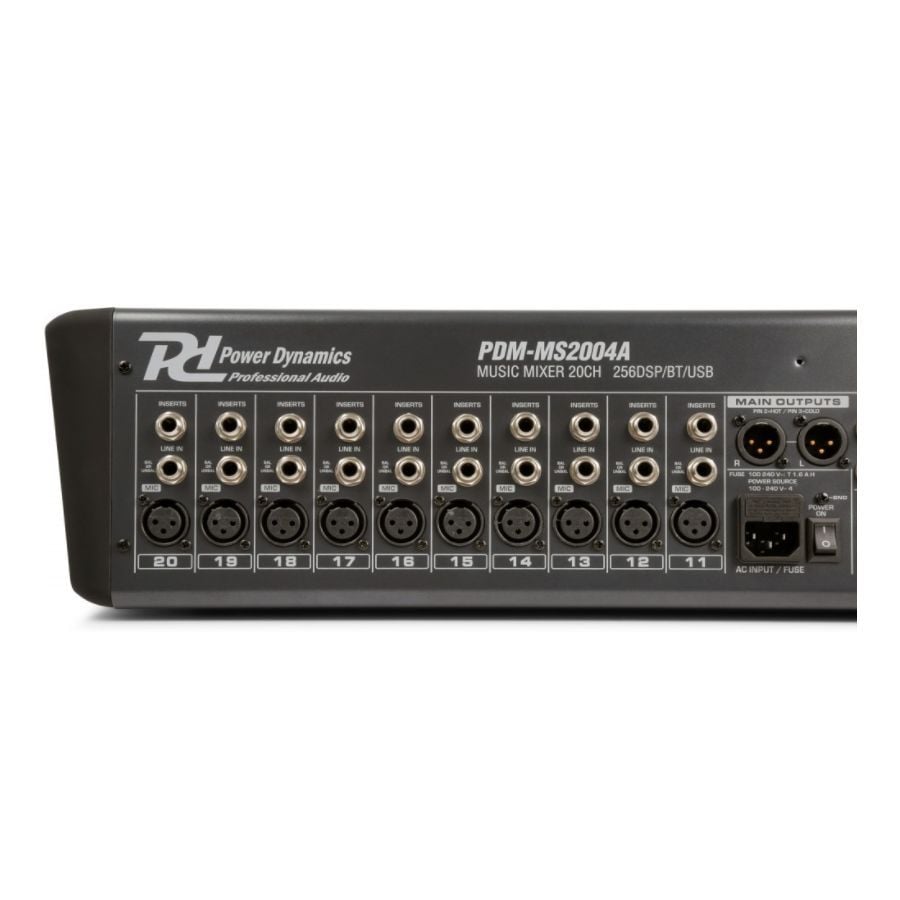

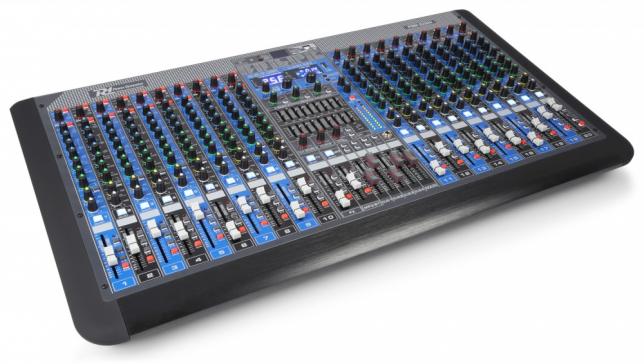

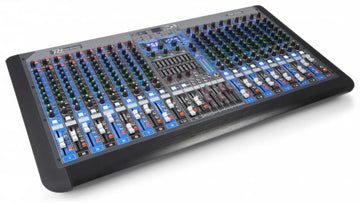

Power Dynamics PDM-S2004 20-Channel Dual Function Mixer

A 20 channel professional dual function mixer split in 10 channels per side. Perfect for use on live stage setups, houses of worship or other multi-input venues.

20 Mono microphone-/line inputs balanced (XLR + 6.3mm Jack)
Built-in stereo USB/Audio Interface to connect directly to your computer
+48V phantom power with individual preamp per channel
75Hz Low cut filter per channel
Multi-FX processor with 256 presets
Solo switch per channel (PFL)
On/off switch per channel
Hi, Mid and Low control for each channel
Adjustable Mid frequency per channel
3 Aux sends per channel (1 pre-/2 post fader)
Adjustable FX, Pan, Trim per channel
Dual 9-band Equalizer
Stereo main outputs balanced (XLR + 6.3mm Jack)
4 Assignable Subgroup outputs (6.3mm Jack)
Separate control room, headphones and stereo rec outputs
Built-in USB player with digital display
BT-receiver for audio streaming
LED VU meter and Peak LED's

SPECIFICATIONS :

• Frequency response 10Hz -45kHz (±3dB)
• THD <0.01%
• DSP Resolution 24-bit
• Type of effects Hall, Room, Chapel, Plate, Spring, Gated rev, Reverse, Early refl, Ambience, Stadium, Delay, Echo, Gate, Chorus, Flanger, Phaser, Pitch, Reverb, Leslie, Flang, Ping pong delay
• Presets 256
• Signal to noise ratio >112dB
• Output level +/- 1V
• Input:Line +/- 150mV
• Input:Mic +/- 1.5mV
• Power supply 100-240VAC / 50-60Hz
• Dimensions 450 x 775 x 145mm
• Weight 10.4kg
