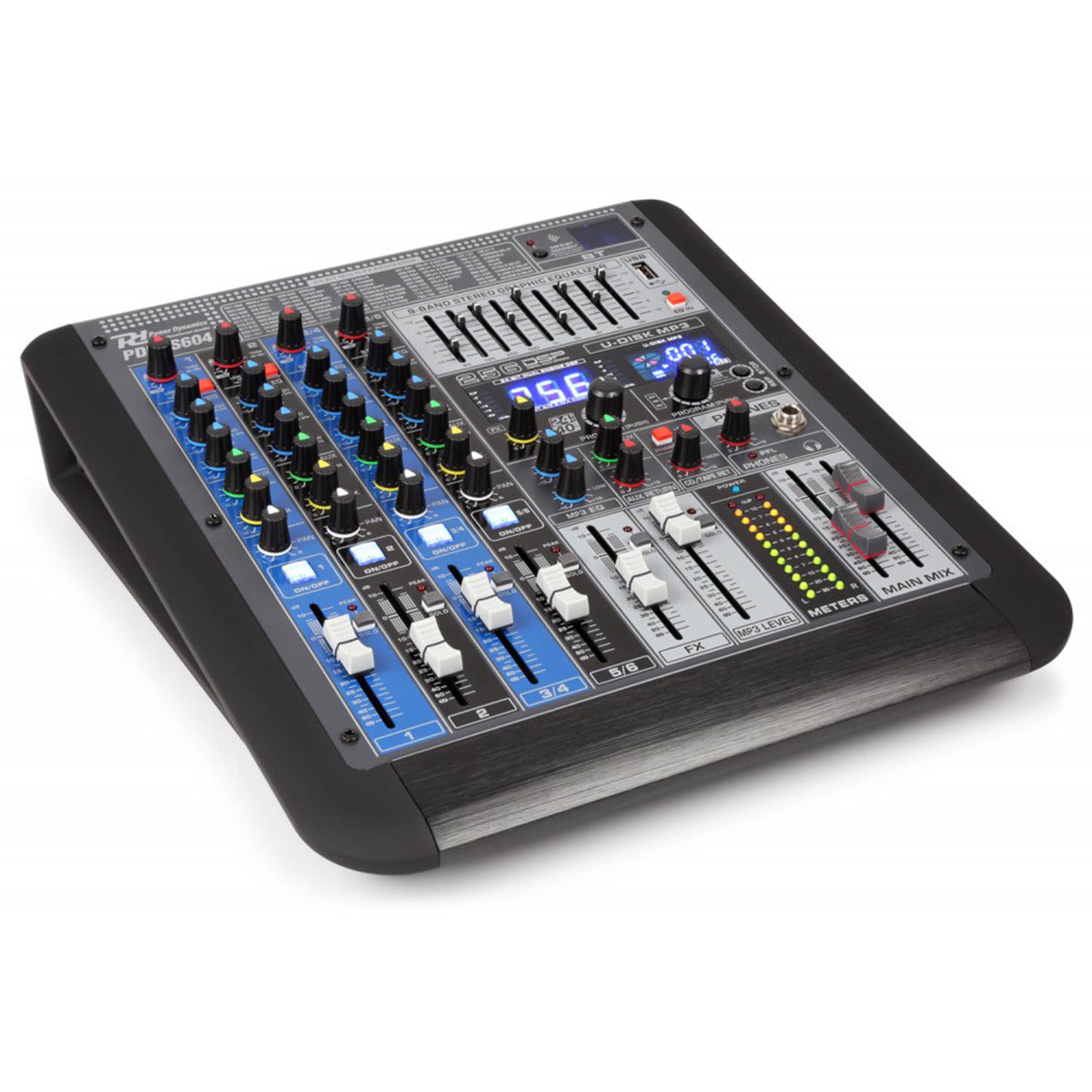

Power Dynamics PDM-S604

Power Dynamics PDM-S604 – 6 Channel Analog Stage Mixer w/ DSP/BT/USB/MP3

A 6-channel professional mixer with a built-in USB player and BT receiver. Perfect for use on live stage setups, houses of worship or other multi-input venues.

FEATURES:

• 4 Balanced microphone XLR inputs
• 4 Balanced Line inputs 6.3mm Jack (mono)
• 1 Balanced stereo line input 2x 6.3mm Jack
• +48V phantom power
• Stereo line input (RCA)
• 75Hz Low cut filter channel 1-2
• Multi-FX processor with 256 presets
• Solo switch per channel (PFL)
• On/off switch per channel
• Hi, Mid and Low control for each channel
• Adjustable FX, Pan, and Trim per channel
• Aux send per channel
• 9-band Equalizer
• Stereo balanced main outputs (XLR + 6.3mm Jack)
• Separate control room, headphones and stereo rec outputs
• Built-in USB player with digital display
• BT-receiver for audio streaming
• LED VU meter and Peak LED’s
• Supplied with telephone holder

SPECIFICATIONS:

• Frequency response: 10Hz -45kHz (±3dB)
• THD: <0.01%
• DSP Resolution: 24-bit
• Type of effects: Hall, Room, Chapel, Plate, Spring, Gated rev, Reverse, Early refl, Ambience, Stadium, Delay, Echo, Gate, Chorus, Flanger, Phaser, Pitch, Reverb, Leslie, Flang, Ping pong delay
• Presets: 256
• Signal-to-noise ratio: >112dB
• Output level: +/- 1V
• Input: Line +/- 150mV
• Input: Mic +/- 1.5mV
• Power supply: 100-240VAC / 50-60Hz
• Dimensions: 335 x 305 x 95mm
• Weight: 3.4kg
