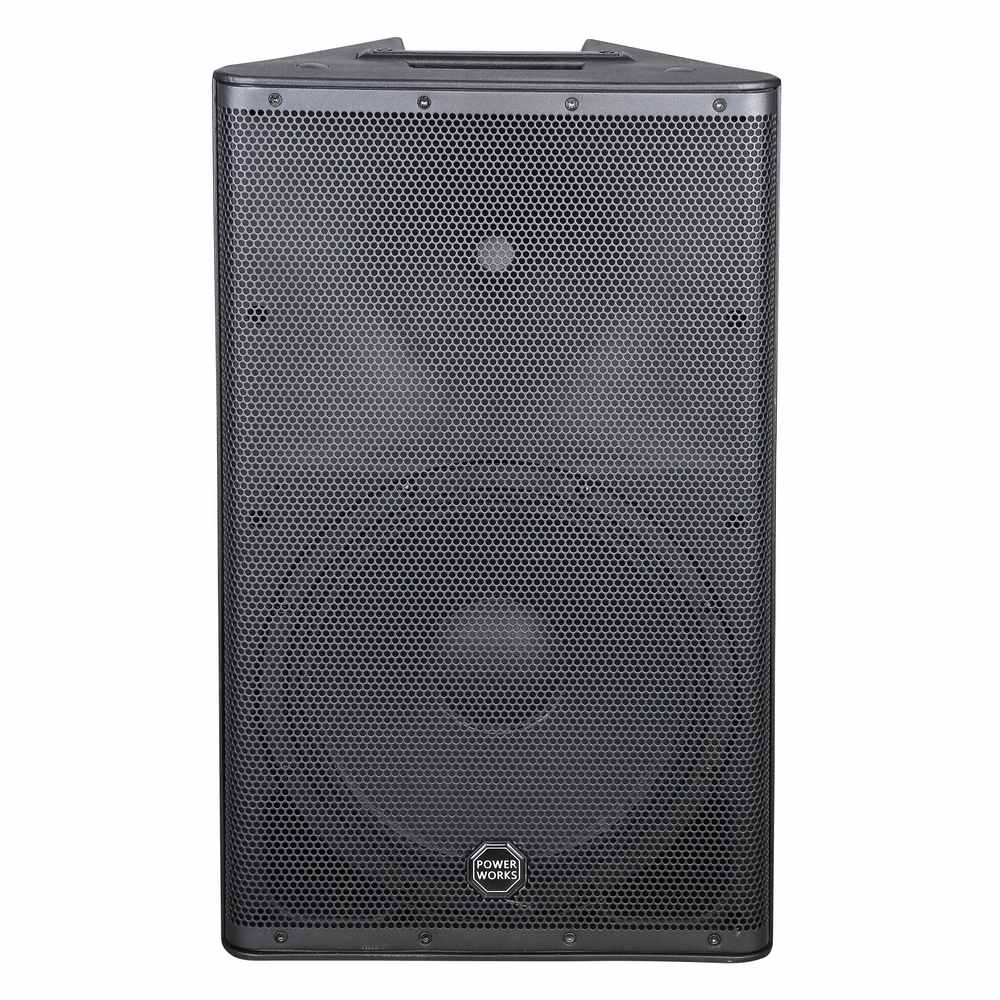

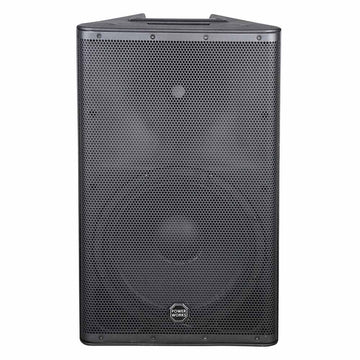

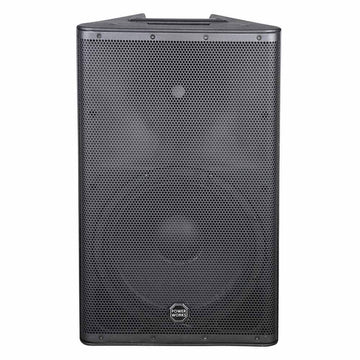

10” 1200W Peak 2-way Powered Loudspeakers with DSP
APOLLO Series speakers are part of a larger range of PowerWorks Pro Audio product line. This cabinet delivers 1200W peak power, Specially selected transducers and compression drivers with a powerful DSP, advanced housing material and anti-scratch black paint: all Components combined to offer the best quality and value for the most demanding Audio professionals. APOLLO series 10″, 12” and 15” woofers are punchy and loud; the 1.35” compression driver delivers crystal clear sound. Built-in DSP allows you to select from 4 preset programs (Live, DJ, Speech and Monitor) to easily get your sound that you require for your event. There are three inputs with selectable inputs of Line/Mic with separate level controls.
SPECIFICATIONS
| Frequency Response | 55Hz – 19kHz / -10dB |
| Max SPL | 132 dB |
| Low-freq. Transducer | 10″ Woofer 2″ Voice Coil |
| High-freq. Transducer | 1.35″ Compression Driver |
| Coverage | 90° x 90° constant directivity horn |
| Low-Frequency Amplifier | Class-D 250W RMS – 1000W Peak |
| High-Frequency Amplifier | Class-AB 50W RMS – 200W Peak |
| AC Mains | 220/240V – 50/60Hz |
| Power Consumption (Average/Peak) | 400W / 1200W |
| Fuse | T6.3AL-250V |
| DSP | 4 preset (Live, DJ, Speech, Monitor) |
| Input Connections | 1x XLR connector, 2x 63mm Jack, 1x Mini-Jack, 1x RCA Pair |
| Output Connectors | 1x XLR Thru Output (Input 1), 1x XLR Link Output with Mono/Stereo selection |
| Housing Material | Polypropylene |
| Grille | Steel/1mm |
| Flyable | |
| Handles | 2 on sides; 1 on top |
| Tripod/Pole Hole | Standard D35mm with dual tilt 0 or 7° |
| Speaker Size (WxHxD) | 355 x 590 x 372 mm |
| Packing Size (WxHxD) | 475 x 605 x 400 mm |
| Speaker Weight | 13 kg |
| Carton Weight | 14 kg |
