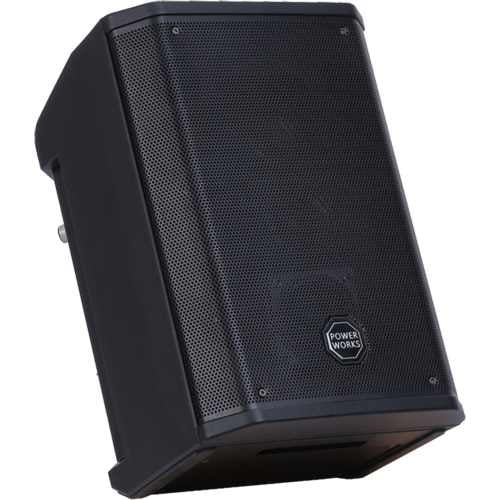

The versatile ATLANTIS Series speaker operates in five unique modes. With
Auto EQ, the system automatically updates to maintain optimum
tonal balance for each position. Use the examples below to quickly
identify the best mode for your application.
System Configurations
Elevated Surface
Position the speaker on a surface. This projects sound clearly and evenly throughout the audience, and ensures that audience members enjoy the full frequency range of the system.
Tilt-Back
For performances where your audience is close to you, tilt the ATLANTIS speaker onto its back edge. For best results, the performer should stand or sit to one side of the loudspeaker to avoid blocking sound from the audience.
Monitor
To use the ATLANTIS speaker as a personal floor monitor, place it on the ground horizontally, in front of and pointing toward the performer. Tilt the loudspeaker onto its side edge.
Speaker Stand
Place one or two ATLANTIS speakers on speaker stands (sold separately) for general-purpose sound reinforcement.
Wall Mount
Thanks to the wall mount optional accessories (standard Φ35), the ATLANTIS speaker can be mounted on a wall for permanent installations for home and movie theatres, churches, meeting halls etc.
SPECIFICATIONS
| Model No. | ATLANTIS-PA6 | ATLANTIS-PA8 |
| Type | An Unbeatable Active Multi-position PA System All-in-One Battery | |
| Transducer LF | 1 * 6.5″ subwoofer, 1″ voice coil | 1 * 8″ subwoofer, 1″ voice coil |
| Transducer HF | 3 * 2.75″, neodymium magnet, 1″ voice coil | |
| Frequency Response | (-6dB) 65 Hz – 18 kHz | (-6dB) 50 Hz – 19 kHz |
| SPL (1W/1m) | (1m, free space) 93 dB | (1m, free space) 95 dB |
| Max. SPL | (1m, free space) 110 dB | (1m, free space) 120 dB |
| Protection Circuits | Short Circuit overdrive protection | |
| Impedance | 4Ohms | |
| Amplification | 2 x Class D | |
| Power Output (RMS) | (RMS) 100W | (RMS) 120W |
| Power Output (Peak) | (RMS) 200W | (RMS) 240W |
| Number of Mixer Channels | 3 | 3 |
| Number of Mic Preamps | 2 | 2 |
| EQ | 2-Band Channel EQ | |
| Effects | Reverb | |
| Inputs | 2 * XLR / 6 .3mm Combo , / 1 * RCA Line in | |
| Outputs | 1 * XLR line out | |
| Bluetooth | Yes | |
| Enclosure Material | Polypropylene Plastic | |
| Mounting Options | 35mm pole mount, Tilt-back, Floor Monitor | |
| Power Supply | 110~240V 50/60HZ | |
| Battery | Rechargeable Lithium—ion battery 5200mAH 7 Hours 100% power / 12 hours 50% power | |
| Dimensions (WxHxD) | 220 X 320 X 205mm | 327 x 505 x 415mm |
| Gross Weight | 7,2Kg | 8,6Kg |
