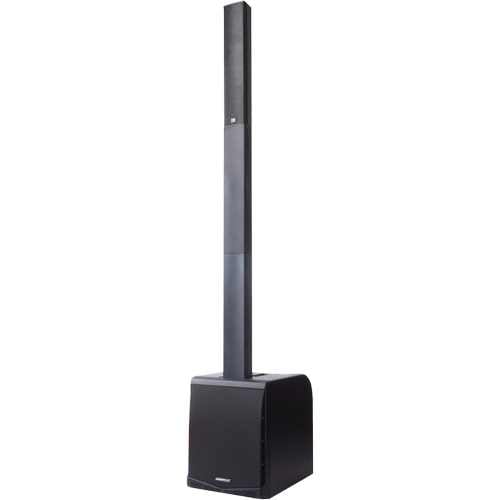

PowerWorks MERCURY P10 active 450 Watt Active PA System with 4 Channel Mixer, DSP and Bluetooth
The PowerWorks MERCURY P10 offers an enormous 800 watts of total output (Peak Power) with a frequency response of 50 Hz to 20 kHz and a sound-level pressure of 121 dB (peak). With its outstanding sound properties and wide-ranging functions, this compact Active column PA system is perfect for musicians, DJs, Conference, Houses of Worship, Home Hi-Fi and solo entertainers.
The subwoofer is fitted with 1 x 10″ woofer as well as Two Amplifier modules which drives individually the Sub Woofer and passive 6x 2.75″ satellites
Input connections on Channel 1 & 2 – mic/line Inputs: XLR / jack combo with 3-band EQ and reverb
Input connections on Stereo Channel 3&4 – 1 stereo line input: 3.5 mm stereo jack / RCA / 6.3 mm jack with 2-band EQ
Master output and Master Reverb output levels can be individually adjusted. The PowerWorks has 4 preset modes (Music, Live, Hi-Fi and Speech)
Mix XLR Output
Designed for easy transportation, the PowerWorks MERCURY P10 consists of a subwoofer and 1 x Mid/High arrays with a total weight of 24,7 kg.
Bluetooth Streaming
Easy streaming set up with music on your smart phone, computer or tablet. Easy set up and you can stream all your favourite music from any Bluetooth-equipped device.
SPECIFICATIONS
| MODEL | MERCURY P10 |
| Power-handling nominal (RMS) | 400 W |
| Power-handling, program | 800 W |
| Power-handling, peak | 1600 W |
| Nominal impedance | 4 ohms |
| Max SPL | 121 dB |
| Amplification | 1 x Class D (Sub) + 1 x Class D (Array Column) |
| Protection Circuits | DSP based Multi-band Limiter, Short Circuit and Overheating protection |
| Vertical Array System | 6 x 2,75″ Mid/High SpeakersSatellite output power: 1x 150 W RMS / 1x 300 W Peak |
| Mixer | 4-Channel mixer integrated into the subwoofer |
| Sub Woofer | 10″ Woofer with 2.0″ Voice Coil
Output power: Subwoofer 300 W RMS / 600 W Peak |
| Directivity | 120° x 20° Array |
| Crossover frequency | 250Hz, 24 dB/oct. |
| Inputs | Channel 1 & 2 – Mic/Line XLR/6,3mm Jack Combo, with 3-band EQ and reverb
Channel 3 & 4 (Stereo) – MP3 Input 3,5mm Jack/ Bluetooth/RCA Sockets with 2-band EQ |
| Output | XLR Mix Out |
| DSP Preset | Music, Live, DJ and Speech |
| Mounting | Subwoofer with M20 thread
Satellites with 25 mm loudspeaker flange |
| Enclosure | MDF |
| Grille | Metal grille |
| Finish | SubWoofer Painted Wood. Satellite PVC black |
| Dimensions (WxHxD) | Subwoofer dimensions (W x H x D): 470 x 520 x 360 mm
Satellite dimensions (W x H x D): 107 x 560 x 107 mm |
| Weight | Total weight: 24.7 kg
Satellite weight: 2.76 kg each Subwoofer weight: 19.2 kg |
| MERCURY Series FAMILY | P8 | P10 | P10.2 | P15.2 |
|---|---|---|---|---|
| System Type | Active Portable Column | Active Portable Column | Active Portable Column 2.1 | Active Portable System 2.1 |
| Low-Frequency | 8″ Woofer | 10″ Woofer | 10″ Woofer | 15″ High Performance Woofer |
| Frequency Response | 50Hz – 20KHz | 50Hz – 20KHz | 50Hz – 20KHz | 35Hz – 20KHz |
| Max Peak SPL | 121 dB | 122 dB | 125 dB | 132 dB |
| Amplifier | Class D+ Class AB | Class D+Class AB | 3 x Class D | 3 x Class D |
| Power Output (Continous) | 350 Watts | 400 Watts | 400 Watts | 800 Watts |
| Sub-Woofer | 8″ 2″ VC | 10″ 2″ VC | 10″ 2″ VC | 15″ 4″VC |
| Vertical Column Array | 6 x 2,75″ Wide range Speakers | 6 x 2,75″ Wide range Speakers | 2 Columns
6 x 2,75″ Wide range Speakers |
2 x 8″ Woofer + Compression Driver |
| Inputs | 4 Channel Mixer 2 x XLR/6.3mm Multi-con
1 x 3.5mm Stereo jack + 2 x RCA |
4 Channel Mixer 2 x XLR/6.3mm Multi-con
1 x 3.5mm Stereo jack + 2 x RCA 2 x 6.3mm Jack |
4 Channel Mixer 2 x XLR/6.3mm Multi-con
1 x 3.5mm Stereo jack + 2 x RCA 2 x 6.3mm Jack |
4 Channel Mixer 2x XLR/6.3mm Multi-con
|
| EQ | No | Channel 1 & 2 (3 band eq)
Channel 3 & 4 (2 band eq) |
Channel 1 & 2 (3 band eq)
Channel 3 & 4 (2 band eq) |
No |
| Sub Control | No | Yes | Yes | Yes |
| Reverb | Yes | Yes | Yes | Yes |
| Bluetooth | Yes | Yes | Yes | Yes |
| Mix Output | Yes | Yes | Yes | Yes – Mono/Stereo |
| AC Power Input | 100VAC-240VAC | Selectable 110V-120V / 220V0240V | Selectable 110V-120V / 220V0240V | 110V-120V / 220V0240V |
| Enclosure | 15mm Plywood | 15mm Plywood | 18mm Plywood | 18mm Plywood |
| Finish | Multi-Layered Textured Paint | Multi-Layered Textured Paint | Multi-Layered Textured Paint | Multi-Layered Textured Paint |
| Grill | Metal grille | Metal grille | Metal grille | Metal grille |
| Satellite Dimensions
(H x W x D) |
515mm X 84mm X 63mm | 560mm X 107mm X 107mm | 560mm X 107mm X 107mm | 450mm X 270mm X 290mm |
| Sub-Woofer Dimensions
(H x W x D) |
412mm X 325mm X 305mm | 520mm X 360mm X 470mm | 520mm X 360mm X 470mm | 610mm X 460mm X 565mm |
| Weight | Sub Satellite | Sub Satellite | Sub Satellite | Sub 41.3Kg Satellite 9.6Kg |
