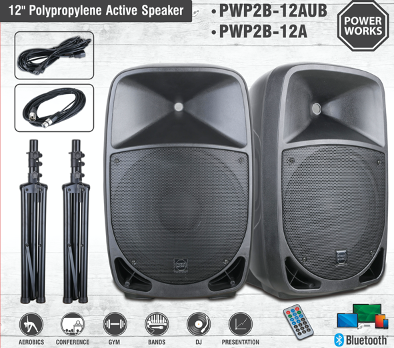

PowerWorks PWP2B-12A

PWP2B-12AUB

Active 2-Way Speaker

• • Equipped with: 12″ Speaker and 1″ compression driver
  • Dispersion pattern: 90? x 60? Symmetric Horn
  • Power: 800 W Peak
  • Amplifier:? Class AB (400 W RMS – 800 W Peak)
  • Maximum level: 114 dB
  • Frequency range: 80 – 18,000 Hz
  • Integrated media player with display
  • SD card slot
  • Playback formats MP3, WAV
  • USB port
  • Bluetooth receiver
  • 1x XLR Mic/Line input
  • 1x 6.3 mm jack Mic/Line input
  • 1x XLR Line input
  • 2x RCA AUX input
  • 1x 3.5mm AUX input (Tablets and mobile devices)
  • 1x XLR Mix/Line output
  • 2-Band EQ on Master Output
  • 4x Level Controls on Mic/Line, Line/Aux, Bluetooth and Master Output
  • Rugged Polypropylene enclosure with tripod flange and carrying handles
  • Dimensions (W x H x D): 375 x 585 x 295 mm
  • Weight: 11.5 kg

PWP2B-12A

Active 2-Way Loudspeaker

• • Equipped with: 12″ Speaker and 1″ compression driver
  • Dispersion pattern: 90? x 60? Symmetric Horn
  • Power: 800 W Peak
  • Amplifier:? Class AB (400 W RMS – 800 W Peak)
  • Maximum level: 114 dB
  • Frequency range: 80 – 18,000 Hz
  • 1x XLR Mic/Line input
  • 1x 6.3 mm jack Mic/Line input
  • 1x XLR Line input
  • 2x RCA AUX input
  • 1x 3.5mm AUX input (Tablets and mobile devices)
  • 1x XLR Mix/Line output
  • 2-Band EQ on Master Output
  • 4x Level Controls on Mic/Line, Line, Aux? and Master Output
  • Rugged Polypropylene enclosure with tripod flange and carrying handles
  • Dimensions (W x H x D): 835 x 770 x 360 mm (Complete system in one carton)
  • Weight: 11.5 kg Individual speaker
  • Weight: 28.4 kg (Complete system in one carton)

  The system is ideal for use in houses of Worship, Schools, Aerobics Studios and Gyms, Conference venues, Bands, DJ’s and Presentations.

  Specifications:

  Power supply:	230 V AC, 50 Hz
  Power connection:	Mains input IEC connector
  Rated power:	400 W RMS
  Program power:	800 W (Class AB Power Amplifier)
  Frequency range:	50 – 20000 Hz
  Max. SPL:	126 dB
  Control:	IR remote control? ? ? ? ? PWP2B-12AUB
  	Bluetooth? ? ? ? ? ? ? ? ? ? ? ? ?PWP2B-12AUB
  Audio player:	USB + SD + Bluetooth? PWP2B-12AUB
  Equalizer:	Master: 1 x 2-band tone control
  Attachment system:	? 35mm and 4 x M8 Flying Points
  Connections:	Input: 1 x Microphone (XLR) /Line via 6.3 mm plug (unbalanced.)
  	Input: 1 x Line via 3-pin XLR
  	Input: 1 x line via Stereo RCA & 3.5mm mini jack (Aux)
  	Output: 1 x XLR Mix Output
  input channels:	2 x Mono via XLR or jack, channel level control via Rotary knob
  	1 x Stereo with RCA/player button via RCA or player, channel level control via Rotary knob
  Format:	MP3, WAV? ? ? ? PWP2B-12AUB
  Number of files:	max. 999? ? ? ? ? ? PWP2B-12AUB
  Available storage media:	USB devices/SD cards (FAT 32)? PWP2B-12AUB
  Speakers:	1 x woofer (12″)
  	1 x Compression Driver 1,5″
  Horn	90? x 60? Symmetric Horn
  Handles	3 x Handles (2 on sides and 1 on top)
  Width:	44 cm
  Height:	68 cm
  Depth:	44 cm
  Weight:	10 kg each
  Remote control
  Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
