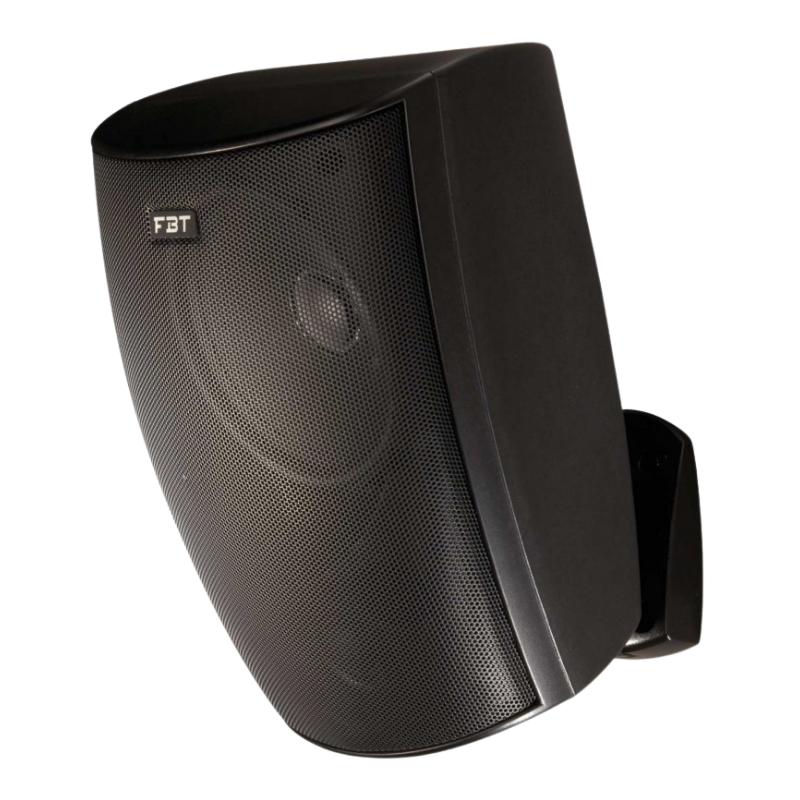

FBT – PROJECT 530BT 2-WAY SPEAKER 30W/60W (BLACK)

PROJECT sound speakers have been created and designed in Italy. Their exclusive design characterises a complete new family of loudspeakers in the Audio Contractor range. They are ideal for any installation: their design allows the loudspeakers to be used in any environment, keeping the same high quality sound throughout. The PROJECT range utilises a compact two-way system guaranteeing high performances, wide dynamics, high fidelity sound reproduction and high voice intelligibility. PROJECT speakers are equipped with an exclusive fully adjustable support bracket for easy installation, to cut costs and save installation time the bracket may be attached to the wall prior to installing the loudspeaker and is provided with a safety cable . Connection to the loudspeakers is via plug in “Euroblock” connector and adjustment of loudspeaker output is made via screwdriver adjustable switch.

SPECIFICATIONS:

• Configuration: 2 way
• Recommended amplifier: 60 W RMS
• Long Term power: 30 W
• Short term power: 120 W
• Transformer: 10-15-20-30 V
• Nominal impedance: 8 ohm
• Frequency response: 85Hz - 20KHz -6dB
• Low Frequency woofer: 5 inch
• Sensitivity (@1W/1m): 87.5 dB
• Maximum SPL cont/peak: 106 dB
• Dispersion: 120x120 HxV
• Recommended HP filter: 55Hz - 24dBoct
• Input connector: Euroblock
• Net Dimension (WxHxD) : 168x240x180 mm

FEATURES:

• Bracket included
• Grey or black ABS loudspeaker
• 2 way bass reflex
• 5” woofer and 0.75” tweeter
• 100V line transformer(Multi Tapp)
• Frequency response @-10dB 85Hz-20kHz
• Dispersion HxV 100°x100°
• High-pass filter recommended 55Hz-24dB/oct
• 30W/60W nominal/maximum power
• Setting 10/15/20/30W/8ohm
• Sensitivity 87.5dB
• Max SPL 106dB
