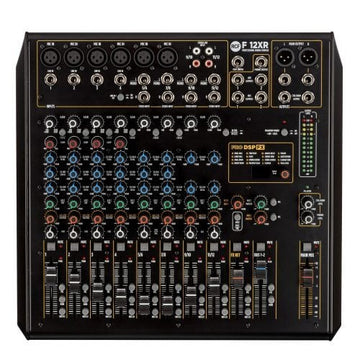

RCF F12XR

RCF F12XR

12-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING
Regular price R9,399.00
Sale price R9,399.00 Regular price
Unit price
Tax included.

From R 783.25 per month

  • 4× fortnightly payments of  R2,349.75   with Payflex
  • 12× monthly payments of   R783.25  with Mobicred
Ask a question

Ask a Question

* Required fields

 Size guide Share

Delivery: Fast Shipping – Door to Door Standard Delivery

Collection: Free In Store Collection

Product ID Icon Product ID: 8533710700710

RCF F12XR

RCF F12XR

Regular price R9,399.00
Sale price R9,399.00 Regular price
Unit price
Product description
Reviews
Shipping & Return
F 12XR
12-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING
  •
    STURDY METAL CHASSIS
  •
    PRO DSP FX ONBOARD WITH 16 PRESETS
  •
    STEREO RECORDING AND PLAYBACK VIA USB PORT
  •
    BALANCED MAIN OUTPUT AUDIO PATH FROM INPUT TO OUTPUT

  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB port
  • Balanced main output audio path from input to output
  • 4 single control compressors
  • Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
  • Robust, compact and attractive design.
  • Designed and Engineered in Italy
  • Internal Universal Power Supply
The F 12XR features 6 Mic Preamp Inputs, 4 Mono Line Inputs, 4 Stereo Line Inputs plus multi-FX and Recording via USB port, with balanced +28dB main output (Stereo XLR + TRS) and 4 single control compressors. The Mono channels are provided with 3-band EQ and Stereo with 2-band. The mixer features 16 PRO DSP internal presets and 2 Aux sends (1 pre,1pre/post fader). It also features a stereo output bus and 60mm faders.

PART NUMBER:

  • 17140097
    F 12XR
    UK
    EAN 8024530016739
  • 17140090
    F 12XR
    EU
    EAN 8024530016159
  • 17140095
    F 12XR
    US
    EAN 8024530016715
  • 17140098
    F 12XR
    JP
    EAN 8024530016746



ENHANCED ANALOG MIXING FLEXIBILITY

Premium RCF next-generation F Series mixers stages high-quality sound in five formats ranging from 6 to 24 channels. Aesthetically pleasing panel and high contrast graphics, premium quality connections and easy routing make it possible to mix your music with minimal technical expertise and the best results. Housed in a sturdy metal chassis, each mixer builds on a fully balanced and low noise audio path from input to output, with single control compressors* to limit signal peaks and a modern sounding EQ.


STATE OF THE ART EQ

State-of-the-art 3 band EQ on mono channels,
2 bands EQ on stereo channels for precise and exquisitely transparent shaping of sound.

HIGH QUALITY PREAMPLIFIERS

High quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high quality sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket. The channel 4 features Hi-Z input level for musical instruments such as acoustic instruments with piezo transducers, electric bass and guitars or stompboxes



SPECIFICATIONS
Electrical specifications

FREQUENCY RESPONSE:
20 Hz ÷ 20 kHz

THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):
<0,02% A-Weighted

POWER SUPPLY:
Internal

VOLTAGE REQUIREMENTS:
100 V - 240 V

POWER CONSUMPTION (W):
24 W
Inputs

GAIN RANGE:
0 dB ÷ -50 dB

GAIN SELECTION:
20 dB ÷ -30 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm

HI-Z LINE INPUTS:
1

INPUT NOISE LEVEL (DBU A-WEIGHTED):
-124 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):
14 kohm

LINE:
4

LINE INPUT IMPEDANCE (KOHM):
21 kohm

LOW CUT:
80 Hz

MIC:
6

PHANTOM POWER +48V:
Yes

STEREO LINE:
4

STEREO LINE GAIN SELECTION:
20 dB ÷ -30 dB

STEREO LINE INPUT IMPEDANCE:
15 kohm
Outputs

MAIN MIX:
1

CONTROL ROOM:
Yes

FX SEND:
1

AUX SEND:
1

AUX OUTPUT:
2

GROUP OUT:
1

PHONES:
1
Outputs specifications

MAIN OUT LEVEL (DBU):
28 dBu

AUX OUT LEVEL (DBU):
28 dBu

GROUP OUT LEVEL (DBU):
28 dBu

PHONES OUT IMPEDANCE (OHM):
150 ohm
Compressors

RCF COMPRESSORS:
n° 4 Single Control Compressors on Channels 1 to 4
EQ

INPUT CHANNELS EQ:
2 Shelving / 1 Generic

DESCRIPTION:
High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ 1,250 kHz Bell Low: +/-15 dB @ 100 Hz Shelving
Auxiliary sends

AUX:
1 PRE/POST

FX POST:
1
Internal Effects

SEND EFFECTS:
1
USB audio

TYPE:
B

PLAY TRK:
2

REC TRK:
2

SUPPORTED SAMPLE RATE (KHZ):
44.1, 48.0 kHz
Other features

FOOTSWITCH:
Yes
Standard compliance

CE MARKING:
Yes
Physical specifications

CABINET/CASE MATERIAL:
Metal

COLOR:
Black
Size

DEPTH:
355 mm / 13.98 inches

HEIGHT:
97 mm / 3.82 inches

WEIGHT:
4.5 kg / 9.92 lbs

WIDTH:
373 mm / 14.69 inches
Shipping informations

PACKAGE DEPTH:
425 mm / 16.73 inches

PACKAGE HEIGHT:
140 mm / 5.51 inches

PACKAGE WEIGHT:
5.5 kg / 12.13 lbs

PACKAGE WIDTH:
400 mm / 15.75 inches

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
