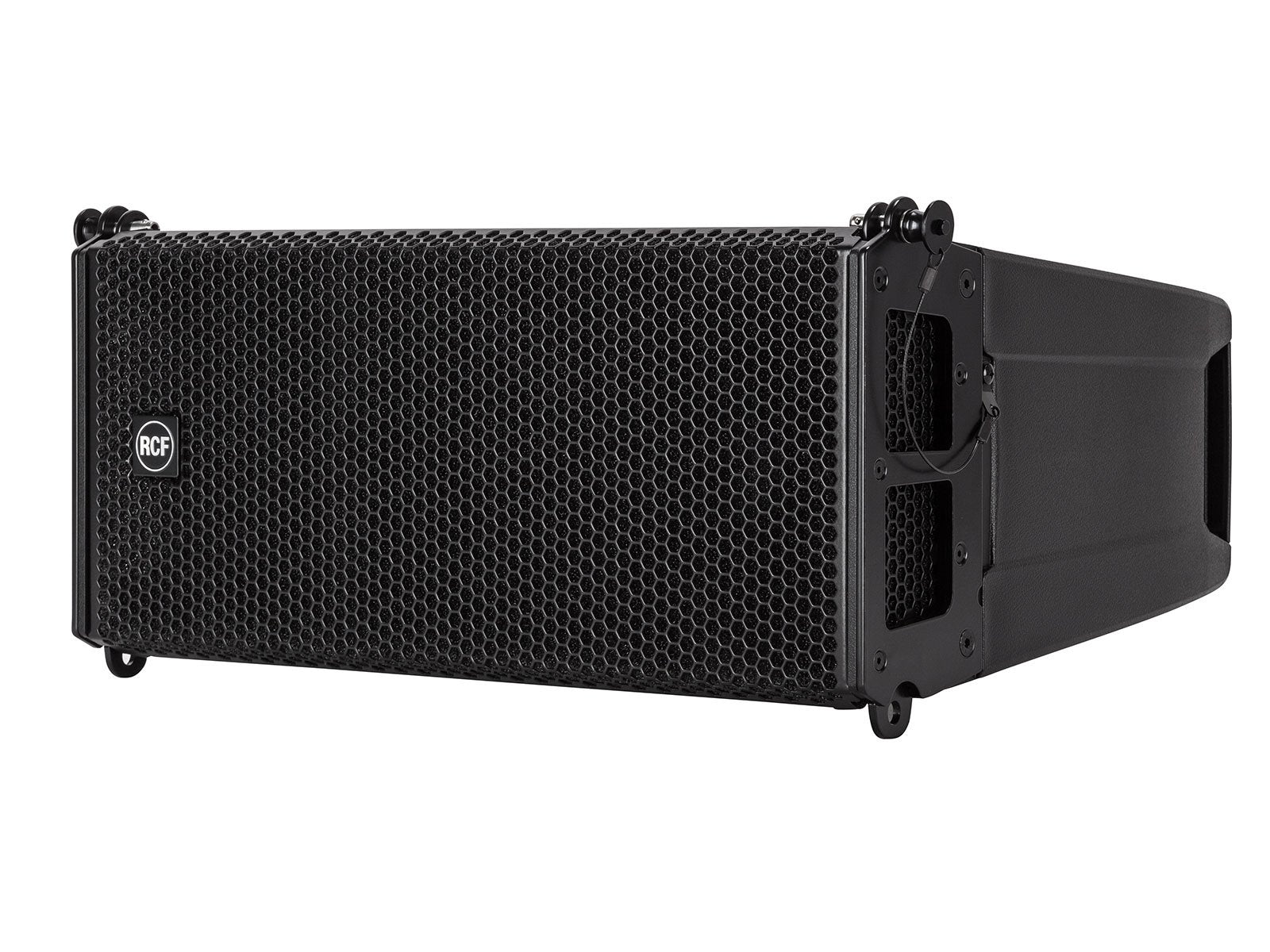

RCF HDL6-A
ACTIVE LINE ARRAY MODULE
, ACTIVE LINE ARRAY MODULERegular price
R32,295.00
Sale price
R32,295.00
Regular price
Unit price
Tax included.
From R 2,691.25 per month
-
4× fortnightly payments of R8,073.75 with
-
12× monthly payments of R2,691.25 with
Delivery: Fast Shipping – Door to Door Standard Delivery
Collection: Free In Store Collection
Product ID: 8533613936806
RCF HDL6-A
Regular price
R32,295.00
Sale price
R32,295.00
Regular price
Unit price
Product description
Reviews
Shipping & Return
The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system.
A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.
A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.
FEATURES
- 1400 W, two-way amplification
- 131 dB max SPL
- 1.7" voice coil neodymium compression driver
- 2 x high power neodymium 6.0"woofers
- 48 kHz, 32 bit floating point DSP processing
- Symmetrical design
- Extremely low weight
- FiRPHASE processing
ACOUSTICAL SPECIFICATIONS
- Frequency Response -3 dB:65 Hz ÷ 20000 Hz
- Max SPL:131 dB
- Horizontal coverage angle:100°
- Vertical coverage angle:10°
- Compression Driver:1.0" neo, 1.7" v.c.
- Woofer:2 x 6" neo, 2.0" v.c.
INPUT/OUTPUT SECTION
- Input connectors:XLR male
- Output connectors:XLR female
- Input sensitivity:+4 dBu
PROCESSOR SECTION
- Crossover frequencies:900 Hz
- Protections:Thermal, RMS
- Limiter:soft limiter
- Controls:HF correction
AMPLIFIER SPECIFICATIONS
- Total power:1400 W PEAK
- High frequencies:400 W PEAK
- Low frequencies:1000 W PEAK
- Total power:700 W RMS
- High frequencies:200 W RMS
- Low frequencies:500 W RMS
- Cooling:convection
- Connections:Powercon in-out
CABINET
- Cabinet Material:Composite PP
- Hardware:array fittings
- Handles:2 back
- Colour:black
PHYSICAL SPECIFICATIONS
- Height:237/9.3 mm/inch
- Width:470/18.50 mm/inch
- Depth:377/15.0 mm/inch
- Net Weight:11.5/25.35 kg/lbs
