RCF TTS 15-A

RCF TTS 15-A

15″ 2200W Active Subwoofer
Regular price R35,899.00
Sale price R35,899.00 Regular price
Unit price
Tax included.

From R 2,991.58 per month

  • 4× fortnightly payments of  R8,974.75   with Payflex
  • 12× monthly payments of   R2,991.58  with Mobicred
Ask a question

Ask a Question

* Required fields

 Size guide Share

Delivery: Fast Shipping – Door to Door Standard Delivery

Collection: Free In Store Collection

Product ID Icon Product ID: 8533924774054

RCF TTS 15-A

RCF TTS 15-A

Regular price R35,899.00
Sale price R35,899.00 Regular price
Unit price
Product description
Reviews
Shipping & Return

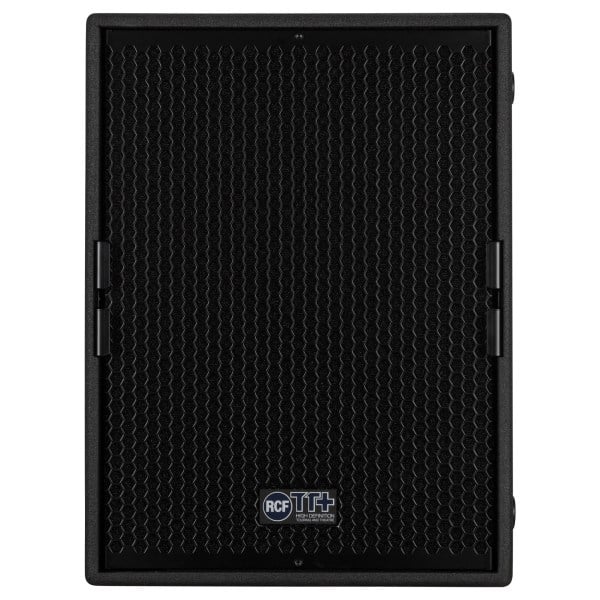

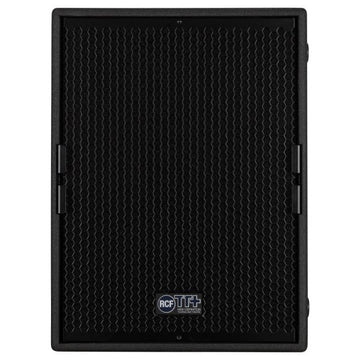

The black RCF TTS 15-A is a 15″ 2200W active subwoofer designed to provide low-frequency reinforcement for A/V system installers, audio engineers, and DJs in outdoor environments or houses of worship, concert venues, and live stage applications. Its Class-D amplifier delivers 2200W of power to the 15″ woofer, which produces a frequency response of 40 to 400 Hz and is hyper-vented for heat dissipation.

32-bit DSP processing yields simple adjustment of input gain, delay, and crossover presets. RDNet control via EtherCon I/O allows comprehensive remote parameter control and system monitoring. XLR and powerCON inputs and outputs are employed for straightforward integration with standard PA components.

The TTS 15-A boasts a sturdy wood cabinet, built-in carry handles, and M20 pole sockets for tour readiness.

Low-Noise Electronics

The switch-mode power supply Class-D amplifier integrates a low-noise, 32-bit DSP circuit, controlled through the RCF RDNet network to handle the clipping limiters, RMS limits, polarity, amplitude, timing, and equalization. All settings, monitoring, and advanced features are available inside the integrated RDNet Networked Management software. The rear-panel encoder adjusts volume, delay, and presets.

Sturdy Cabinet

The cabinet is made of high-quality birch plywood with weatherproof treatments. The sub is stackable and lightweight for easy setup and tear down. The polyurea coating and rugged structure of the cabinet survive long-term use and transportation while the separate housing for the amplifier guarantees component efficiency and reliability. A pole receptacle on top and side allows the woofer to be deployed in various situations.

Hyper-Vented Woofer

In order to dissipate the heat generated by the powerful voice coil, RCF engineers have developed an internal ventilation system with low power compression. The Hyper Ventilation System is the result of a complex combination of ventilation ducts in the voice coil former, in the magnetic structure, and in the woofer’s basket. Demodulation rings reduce the harmonic and intermodulation distortion due to voice coil displacement and, as input current varies, the system inductances are more linear. The cone is water-resistant.

Vented Ports

The airflow in the vented ports suffers the turbulence of the air due to the speed of air. The improved vented port is a proprietary solution that enhances aerodynamic behavior of the air, thereby gaining efficiency and reducing distortion.

RDNet Control

RDNet is a proprietary protocol that provides straightforward monitoring and intuitive control of the audio system down to every device and object. Each device has its own DSP, giving the possibility to address presets or parameters specific to single or groups of objects. A network user can change level, delay, EQ, and advanced subwoofer configurations.

Features

  • For Live Stage, Theater, and Clubs
  • 15″ Hyper-Vented Woofer
  • 40 to 400 Hz Frequency Response
  • 2200W of Class-D Amplification

Specs

Acoustical specifications



FREQUENCY RESPONSE:
40 Hz ÷ 400 Hz



MAX SPL @ 1M:
134 dB

Transducers



WOOFER:
15”, 3.0” v.c
Input/Output section



INPUT SIGNAL:
bal/unbal



INPUT CONNECTORS:
XLR, RDNet Ethercon



OUTPUT CONNECTORS:
XLR, RDNet Ethercon



INPUT SENSITIVITY:
+4 dBu

Processor section



HI-PASS FREQUENCIES:
40 Hz, 50 Hz



LOW-PASS FREQUENCIES:
Variable from 60 Hz to 400 Hz



PROTECTIONS:
Thermal, RMS



LIMITER:
Fast Limiter



CONTROLS:
Gain, Eq, Prest Switch, Out Delay



RDNET:
Yes

Power section



TOTAL POWER:
2200 W Peak, 1100 W RMS



COOLING:
Convection



CONNECTIONS:
Powercon IN/OUT

Standard compliance



CE MARKING:
Yes

Physical specifications



CABINET/CASE MATERIAL:
Baltic birch plywood



HARDWARE:
2 x M20



HANDLES:
2 Side



GRILLE:
Steel



COLOR:
Black

Size



HEIGHT:
600 mm / 23.62 inches



WIDTH:
445 mm / 17.52 inches



DEPTH:
633 mm / 24.92 inches



WEIGHT:
36.5 kg / 80.47 lbs

Shipping informations



PACKAGE HEIGHT:
670 mm / 26.38 inches



PACKAGE WIDTH:
705 mm / 27.76 inches



PACKAGE DEPTH:
520 mm / 20.47 inches



PACKAGE WEIGHT:
41.3 kg / 91.05 lbs



Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
