Description

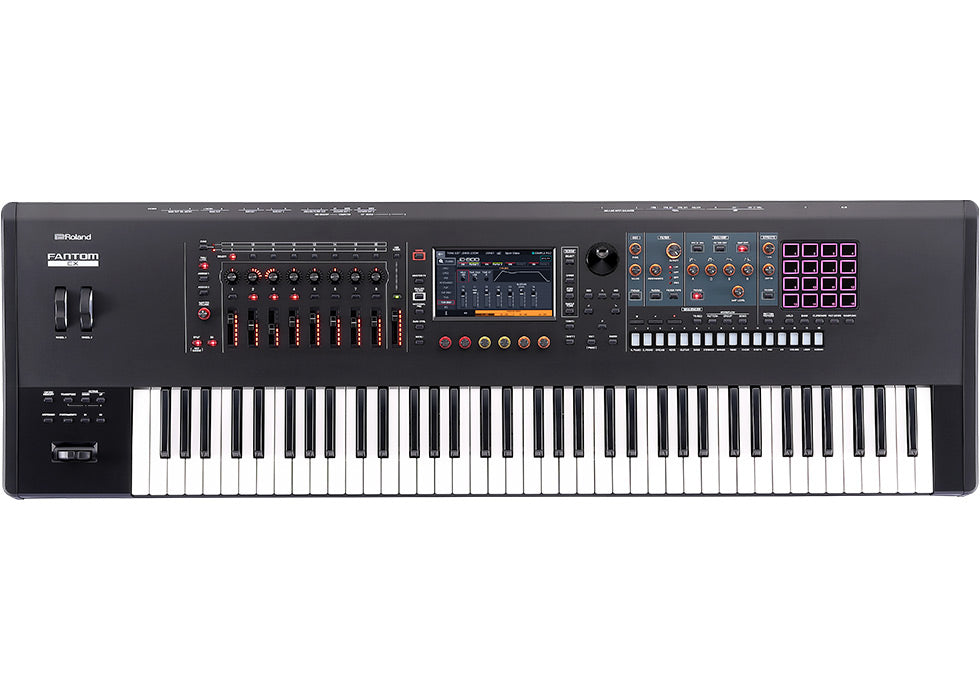

Equipped with 76 synth-action keys, FANTOM 7 EX includes every feature from its acclaimed predecessor and so much more. Updated with our most sophisticated technologies, this robust platform brings you a complete creative ecosystem for professional sound design, sequencing, and performance.
The ultimate creative hub evolves.
FANTOM EX includes every feature from its acclaimed predecessor and so much more. Updated with our most sophisticated technologies, this robust platform brings you a complete creative ecosystem for professional sound design, sequencing, and performance.
Start your engines.
FANTOM EX includes the most expansive collection of premium sound engines available in a hardware instrument. ACB, ZEN-Core, V-Piano, SuperNATURAL, and other Roland technologies spark inspiration at every turn, providing expressive and inspiring sounds for every musical style.
Everything at once.
FANTOM EX delivers the power you need on demand, so you’ll never have to compromise your musical vision. Core custom processors provide smooth and precise operation with plenty of overhead, enabling loads of polyphony and full patch remain for seamless transitions. There are dozens of simultaneous effects, including new studio-grade reverbs and updated Master FX for shaping the overall sound. A characterful analog filter is also available, perfect for infusing tones with extra warmth and grit.
Complete control.
Shape sounds instantly and compose effortlessly with the friendly, ergonomic panel filled with buttons, knobs, and sliders. Immerse yourself in a gorgeous color touchscreen that dynamically changes to support the task at hand. And personalize the look by importing custom images for the screensaver and startup view.
New dimensions in sound.
FANTOM EX puts a colossal library of genre-defining Roland sounds at your fingertips. Create, compose, and perform with over 7000 onboard tones and a deep array of powerful synthesis tools.
Analog Circuit Behaviour
oland’s Analog Circuit Behavior (ACB) technology brings an authentic analog sound experience to life in the digital realm, faithfully recreating analog circuitry and all their interactive behaviors at a component level. FANTOM EX features four ACB instruments with the latest advancements, including Circuit Mod and Condition functions for dialing in varying degrees of vintage character.
The power of ZEN-Core.
The flexible and expandable ZEN-Core Synthesis System leverages decades of Roland R&D to deliver a diverse array of electronic, acoustic, and hybrid sounds. Develop nuanced and expressive tones with up to four partials, each with an independent oscillator, filter, amplifier, dual LFOs, and effects. And use up to 16 tones in a Scene to build complex splits, layers, and sequenced parts.
Features
- Roland’s premier synthesizer series, updated and enhanced with the latest technologies
- Powerful and intuitive user interface designed for free-flowing creativity
- Compose and perform with Roland’s most advanced sound engines: ACB, ZEN-Core, V-Piano, SuperNATURAL, Virtual ToneWheel, and more
- Over 7000 onboard sounds from the historic Roland library
- JUPITER-8, SH-101, JX-3P, and JUNO-106 ACB Expansions
- n/zyme, JD-800, JUNO-106, JUPITER-8, JX-8P, and SH-101 Model Expansions
- V-Piano engine with updated UI and preinstalled German Concert V-Piano Expansion 01
- SuperNATURAL piano engines and preinstalled SuperNATURAL Acoustic Piano 3 Expansion
- Virtual ToneWheel organs derived from the Roland VK series
- Massive effects library, including new studio-grade Shimmer Reverb and Modulation Reverb
- Master FX processor enhanced with ready-to-use presets and updated UI for Mastering Comp and Mastering EQ
- Stereo vocoder with 32 bands
- Professional sequencing tools with clip-based workflow, TR-REC step sequencer, piano-roll editing, and more
- Advanced sampling with one-shot playback, pitched keyboard assignment, and multisample support
- Large color touchscreen and ergonomic panel layout loaded with knobs, buttons, and sliders
- 16 RGB pads for trigging sounds, samples, and clips
- Comprehensive connectivity with multi-channel audio I/O, MIDI I/O, dual CV/gate outputs, USB, and more
- 16×3 audio/MIDI USB interface
- Dedicated software control modes for Ableton Live, Logic Pro, MainStage, Cubase, and Studio One
- Expand your creative range with ZEN-Core Sound Packs and Wave Expansions on Roland Cloud
- FANTOM EX Upgrade available to original FANTOM owners on Roland Cloud
- Premium 76-note keyboard with synth action and channel aftertouch
Specifications
Keyboard
- Keyboard
- 76 Keys (semi-weighted keyboard and channel aftertouch)
- Sound Generator
- Sound Generator
- ZEN-Core V-Piano Technology (Only ZONE1)
ACB (Only ZONE1)
VTW Organ (Only ZONE2)
SuperNATURAL Acoustic
SuperNATURAL Acoustic Piano
SuperNATURAL Electric Piano
Various MODEL sound generators* ZEN-Core Tones and Model Tones can import and export. - Expansion
- EXZ Series
EXSN Series
EXM Series
ACB Series* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM’s internal memory. - Parts
- 16 Zones (Internal + External)
- Scenes
- 128 Scenes x 4 Bank
* The Scenes can import and export.
- Tones
- Over 7,000 Tones
Over 90 Drum kits - Tone Remain
- 16 zones
* Tone Remain does not apply to V-Piano, ACB and VTW sounds.
- Favorite
- Rating System: 4 Steps (0–3)
- Tone Search / Scene Search
- Rating, Character
- Effects
- Multi-Effects: 16 systems, 93 types
Part EQ: 16 systems
Drum Part COMP: 6 systems
Insertion Effect: 2 Systems, 90 Types (Serial, parallel connection selectable)
TFX: 1 System, 90 Types
Input MFX: 2 Systems (in Parallel), 90 TypesChorus: 9 types
Reverb: 7 types
Master Compressor
Master EQ
Input Reverb: 7 types
Input EQ: 2 Systems (in Parallel) - Analog Filter
- STEREO
Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass
Drive
Amp - Vocoder
- Band: 13, 20, 32
Type: Mono, Stereo
Preset Setting: 10
User Setting: 20 - Scene Chain
- Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
Set: 100
Marker: 62 (0–9, A–Z, a–z) per 1 Chain Set - Sequencer
- MIDI Tracks
- 16
- Group
- 16
- Pattern
- 8 (per each Track)
- Pattern Length
- 64 measures
- Recording Method
- Realtime recording, Step recording, TR-REC
- Editing Method
- Piano roll edit (Touch Edit / Automation support), Microscope
- Song
- 1 (per Scene)
- File format
- Original, SMF export/import supported
* PAD Sampler trigger data can be recorded.
- Sampler – Keyboard Multisample
- Format
- 16/24-bit linear, 44.1/48 kHz, WAV/AIFF
- Number of Samples
- 8,000
- Number of Multisamples
- 128
- Sampling Time
- The maximum is 2 minutes 44 second (1 Sample).
* A total of approximately 2 GB (Share with Expansion titles)
* Keyboard Multisample can import and export as ZEN-Core Tone. - Sample – PAD Sampler
- Format
- 16-bit linear, 44.1/48 kHz, WAV/AIFF import supported
- Maximum Polyphony
- 8
- Number of Samples
- 16 Pads x 4 Banks
- Sampling Time
- The maximum is 60 minutes (the equivalent of approximately 660 MB).
* A total of approximately 2 GB (including imported WAV files)
When you use the PAD samples as KBD Wave, then you have to manipulation it. - Sampler – Internal Storgae space for files
- Size
- 2 GB
- OTHER
- Rhythm Pattern
- Yes
- Arpeggiator
- Yes
- Chord Memory
- Yes
- Motional Pad
- Yes
- PAD Mode
- Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play
- AIRA LINK
- Yes
* When connect to MX-1
- CV/Gate Control
- 2 x CV/Gate or 3 x CV/1 x Gate
- Controllers
- Pitch Bend/Modulation Lever *1
Assignable Switch x 2 (S1/S2)
Control knob x 8
Slider x 8
USB Audio slider
Wheel x 2 *1
Function knob x 6
Sound Modified knob x 11 *1
4 x 4 Pad*1: 1024 step editing support
Sound Modified knob can be use with Cutoff, Resonance, Attack , Decay , Sustain , Release , Amp , FX Depth. - Display
- Graphic Type, 7″, Wide VGA (800 x 480 dots), backlite LCD (Color/Touch screen, Wallpaper support)
- Connectors
- Headphones jack: Stereo 1/4-inch phone type
MAIN OUT jacks (L/MONO, R) (1/4-inch phone type)
MAIN OUT jacks (L, R) (XLR type)
SUB OUT1 jacks (L, R) (1/4-inch phone type)
SUB OUT2 jacks (L, R) (1/4-inch phone type)
ANALOG FILTER OUT jacks (1,2) (1/4-inch phone type)
Mic/Line Input jacks: (1,2) (1/4 inch phone type/XLR type)
2 x CV OUT, 2 x GATE OUT
FOOT PEDAL jacks (HOLD, CTRL1, CTRL2, CTRL3) * 1024 Step value support
MIDI connectors (IN, OUT1, OUT2/THRU) * High-resolution velocity data output support
USB MEMORY Port(USB A)
USB COMPUTER Port (AUDIO/MIDI)(USB B)
3 x External Device Port(USB A):Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected. - Audio Interface
- Max 24 bit/96 KHz
Record 16 Stereo Channel
Playback 3 Stereo Channel - External Memory
- USB Flash drive (sold separately)
- Power Supply
- AC 117-240 V 50/60 Hz
- Power Consumption
- 50 W
- Accessories
- Owner’s manual
Power Cord - Options (sold separately)
- Keyboard Stand: KS-G8B, KS-11Z, KS-13
Pedal Switch: DP series, RPU-3
Expression Pedal: EV-5
USB Flash drive (*)* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work. - Size and Weight
- Width
- 1,296 mm
51-1/16 inches - Depth
- 403 mm
15-7/8 inches - Height
- 106 mm
4-3/16 inches - Weight
- 17.7 kg
39 lbs 1 oz
