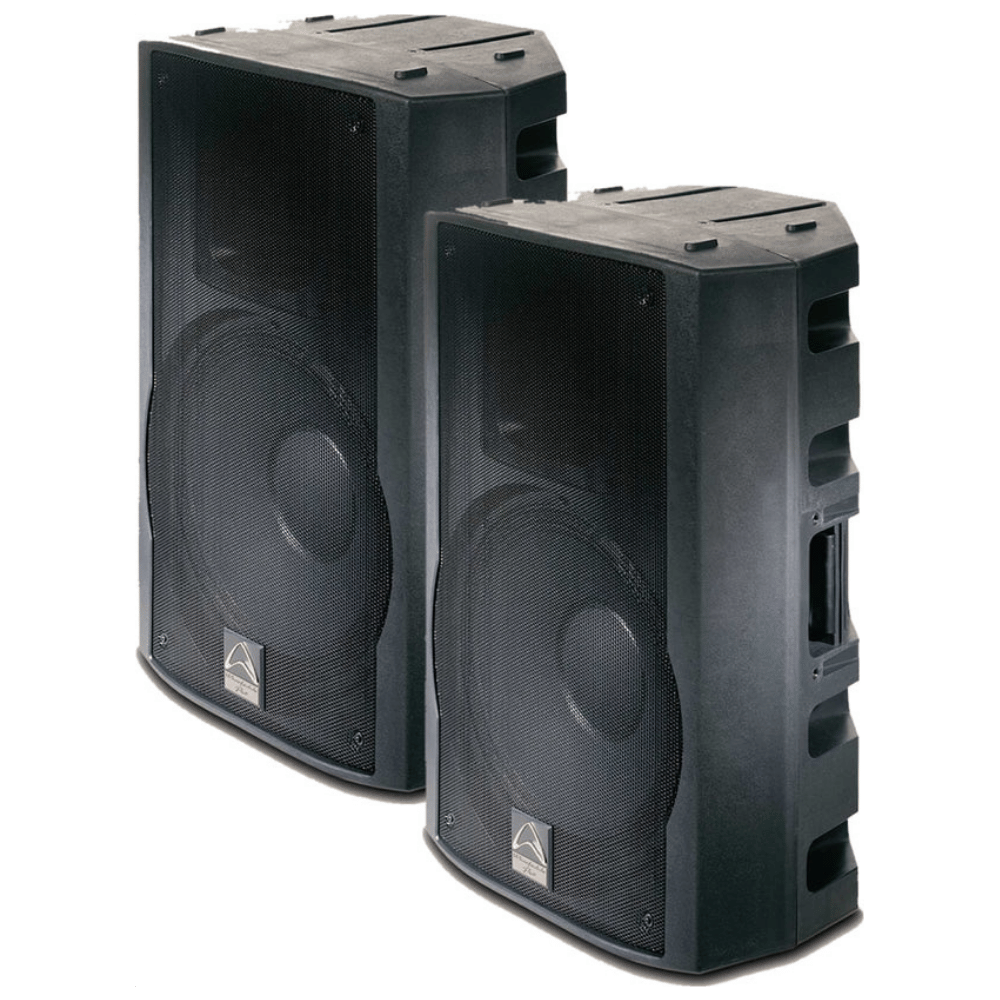

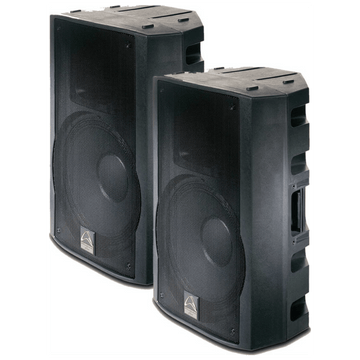

Secondhand Wharfedale LA-15SP (PAIR)

The Wharfedale Pro LA-15 Series can be used as the basis for a complete small to medium touring system and provide front of house sound and monitoring as well as a permanent install sound system. The LA-15 Series speakers are characterized by their exceptional fidelity in reproducing both simple and complex acoustic signals with superior intelligibility and integrity. The sonic quality is open and natural, generating a sound and image of exceptional quality.

The shape of The LA-15 allows the cabinets to lock together in a trapezoid formation or allows the system to be used in a horizontal position as a floor monitor.

LA Series Features:
• Strong construction of acoustically enert, high impact, ’GiG’ tough ACOUSTIC RESIN™
• Proprietary designed, high efficiency, high power Wharfedale Pro drive units.
• Sophisticated crossover design enables smooth power and frequency response control through crossover region
• High frequency horn coverage can be changed for 60x40 or 40x60 degree
• Complex trapezoid design for grouping of cabinets in array
• Integral high frequency driver overload protection ProTech™
• Protective grills
• Integral tripod stand adaptor
• Integral easy carry handles

Applications:
The speaker system is a full range, high power handling, high efficiency system designed for demanding professional applications such as the reproduction and reinforcement of music, musical instrument, vocal and spoken voice.

FEATURES:
• Two-way full-range, 15" woofer
• 1" Diaphragm dynamic HF drive unit
• 45-20kHz frequency response (+/-3dB)
• 8-ohm system impedance
• Trapezoidal enclosure
• 2 x 1/4" jacks and 2 Speakon™ type connector
• Continuous 250W / Program 500W power handling
• H/D/W: 700 x 380 x 480 mm, 23.75kg

SPECIFICATIONS:
GENERAL INFO
• System type 15” 2-way passive
• Frequency response +/- 3db 45Hz-20kHz
• Sensitivity (db 1w@1m) 100dB
• System impedance 8 ohms
• Maximum SPL Peak dB 130dB

POWER HANDLING (Watts)
• Continuous RMS 250
• Program 500

LF DRIVER
• Lf driver size mm / inches 1x15”

HF SECTION
• Hf voice coil size 25mm/1"
• Horn dispersion (H x V) 60 x 40

CROSSOVER SECTION
• Crossover Frequency / Filter 2.3kHz
• Hf driver protection Protection lamp

CONNECTORS
IN / OUT PANEL (speaker Level)
• Input connector 2 x 1⁄4” jacks and2 x Speakon™

PHYSICAL FEATURES
• Enclosure type Molded Polypropylene

DIMENSIONS & WEIGHT
• Height ( mm / ins ) 480/18.9"
• Width Front / Rear / mm / ins 700/27.6"
• Depth ( mm / ins ) 380/15"
• Net weight ( kg / lbs ) 23.75 kg / 52.3 lbs
