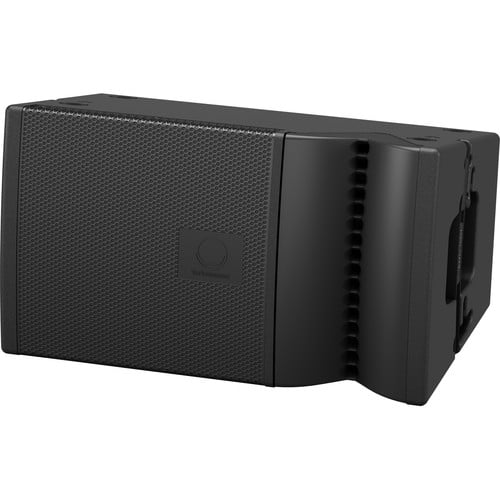

Turbosound Berlin TBV123AN

The BERLIN TBV123-AN 2-Way 12" Constant Curvature Loudspeaker from Turbosound is an arrayable 2500W 12" powered loudspeaker system that is suitable for touring, portable, and installed sound reinforcement applications. Designed to work individually without a controller, the TBV123-AN provides optimal performance for FOH, offstage fill, stereo in-fill, or distributed fill applications in a wide range of venues including nightclubs, concert halls, houses of worship, and more.

The TBV123-AN loudspeaker features a carbon fiber loaded 12" neodymium low-frequency driver and dual aluminum dome 1" neodymium motor compression drivers mounted on a 100° horizontal by 15° vertical dispersion constant curvature Dendritic waveguide, which maximizes the direct sound field while reducing reverberant energy.

Equipped with a KLARK TEKNIK Class-D power amplifier, the TBV123-AN Loudspeaker provides up to 2500W of output power. The KLARK TEKNIK Digital Signal Processor (DSP) provides dynamic EQ and transparent limiting for maximum punch and definition at high-output levels.

The ULTRANET connectivity is provided by two locking etherCON connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single Cat5 cable between compatible digital devices including mixers, I/O stage boxes, powered loudspeakers, and personal monitoring systems. The loudspeaker features Neutrik powerCON mains input and output link power connectors.

On the rear panel of the amplifier module, the user interface's LCD display and single rotary encoder provide intuitive access to position compensation, user EQ control, subwoofer integration, and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the TBV123-AN via a free PC computer software and convenient DSP firmware updates.

Finished in a semi-matte black paint, the cabinet is constructed from 3/4" plywood with a rugged powder-coated perforated steel mesh grille backed with reticulated foam, a convenient dual angle 35mm pole/speaker stand mount for accurate audience coverage, and a durable handle for easy transport. The TBV123-AN comes with an integral suspension hardware for efficient array configuration and aiming, plus multiple internal M10 mount points that allow eyebolt suspension in any orientation.
